200XS DFI 2.5L ROS - Serial 1E050852 and Up - Swivel Bracket(Short)

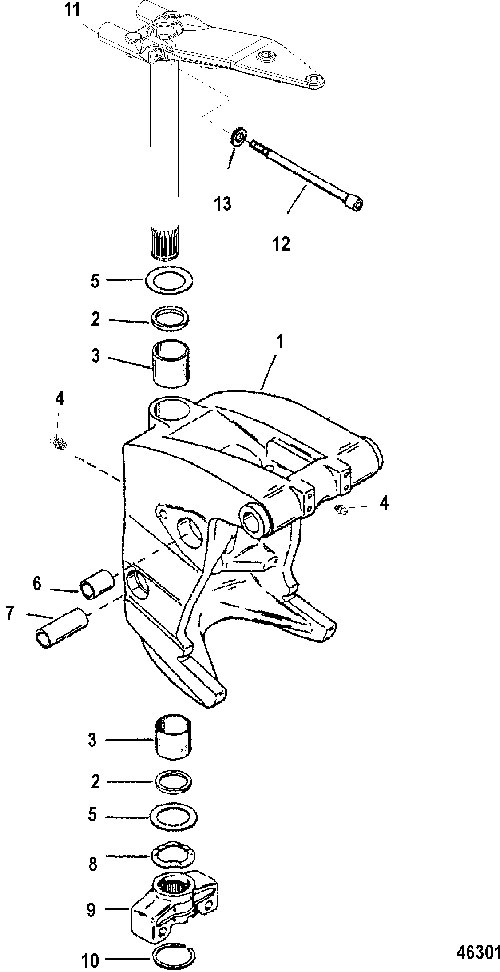

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3521-818810T16 | SWIVEL BRACKET ASSEMBLY | 1 | ||||||
| 2 | 26-847729 | SEAL, Oil | 2 | ||||||
| 3 | 23-8M0042131 | BEARING | 2 | ||||||
| 4 | 22-74036 | FITTING, Grease | 2 | ||||||
| 5 | 23-847728 | BEARING | 2 | ||||||
| 6 | 23-82203516 | BEARING | 1 | ||||||
| 6 | 23-82203522 | BEARING | 1 | ||||||
| 7 | 23-82203540 | BEARING (2.5 Inches) | 2 | ||||||
| 8 | 13-78854 | WAVE WASHER | 1 | ||||||
| 9 | 86580F4 | YOKE, Bottom | 1 | ||||||
| 10 | 53-848125 | RING, Retaining - Spiral Lock | 2 | ||||||
| 11 | 17-8M0056723 | SWIVEL PIN, (Black) | 1 | 8M0028057 | |||||
| 12 | 10-132121 | SCREW | 2 | ||||||
| 13 | 12-816056 | WASHER | 2 |
