225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Crankshaft, Pistons and Connecting Rods

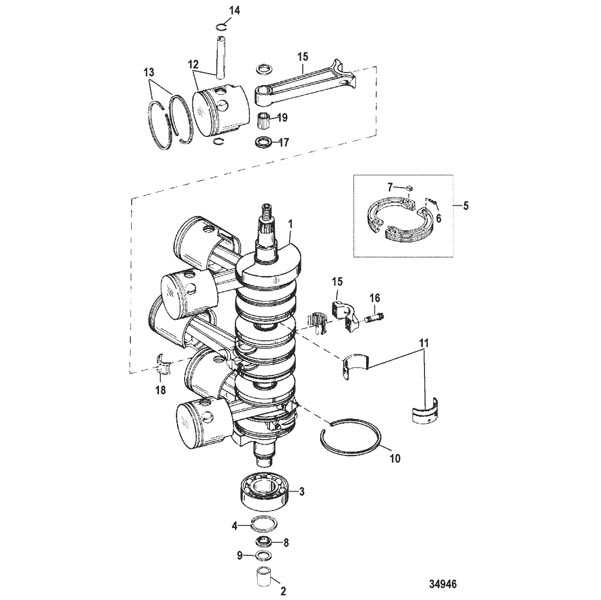

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 455-850690T1 | CRANKSHAFT ASSEMBLY | 1 | No Longer Available | |||||
| 2 | 78662 | WEAR SLEEVE | 1 | ||||||
| 3 | 30-67923T | BEARING, Ball (LOWER) | 1 | ||||||
| 4 | 53-67446 | RING | 1 | ||||||
| 5 | 43-14513A09 | GEAR SEGMENT KIT, Drive | 1 | 14513A2 | |||||
| 6 | 10-813073 | SCREW, (#6-32 x .620) Socket Head | 2 | ||||||
| 7 | 11-813134 | NUT, (#6-32) Special | 2 | ||||||
| 8 | 54196A6 | CARRIER ASSEMBLY | 1 | ||||||
| 9 | 65800 | PACKING | 1 | ||||||
| 10 | 39-67377T | RING, Sealing | 7 | 67377 | |||||
| 11 | 31-16756A6 | BEARING KIT | 2 | ||||||
| 12 | 785-841089T1 | PISTON ASSEMBLY | 3 | 9738T11 | |||||
| 12 | 785-841088T1 | PISTON ASSEMBLY | 3 | 9737T11 | |||||
| 13 | 39-848202A12 | RING SET | 1 | ||||||
| 14 | 40-857196 | RING, Lock | 12 | 52035 | |||||
| 15 | 644-8M0081411 | CONNECTING ROD ASSEMBLY | 6 | ||||||
| 16 | 10-763491 | SCREW, (.312-24 x .875) | 12 | ||||||
| 17 | 12-8M0012298 | WASHER | 12 | 812876 | |||||
| 18 | 31-8M0082405 | BEARING KIT | 6 | ||||||
| 19 | 29-822553 | BEARING, Needle | 174 | ||||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD ASSEMBLY | 1 | 809430T95 |
