225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Starter Motor

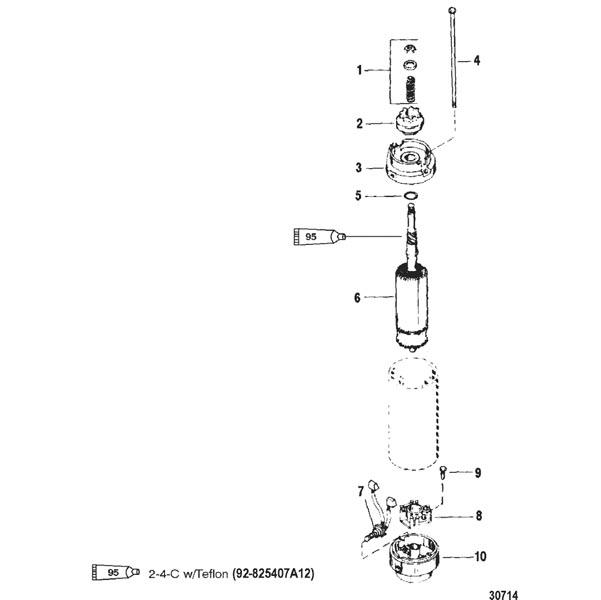

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 50-893893 | STARTER MOTOR ASSEMBLY | 1 | 794721 | |||||
| 1 | 90645 | DRIVE KIT | 1 | ||||||
| 2 | 13310T1 | PINION ASSEMBLY | 1 | ||||||
| 3 | 75660 | PLATE | 1 | ||||||
| 4 | 10-749681 | THRU BOLT | 2 | ||||||
| 5 | NSS | Washer (UNITED TECHNOLOGY #WA3122) | 1 | Not Sold Separate | |||||
| 6 | 79216 | ARMATURE | 1 | No Longer Available | |||||
| 7 | 898265016 | BRUSH/SPRING KIT | 1 | 75384 | |||||
| 8 | 898265014 | HOLDER | 2 | 61787 | |||||
| 9 | NSS | Screw (UNITED TECHNOLOGY #02441-22-SC30SM) | 2 | Not Sold Separate | |||||
| 10 | 15386001 | END CAP | 1 | 15386 |
