| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

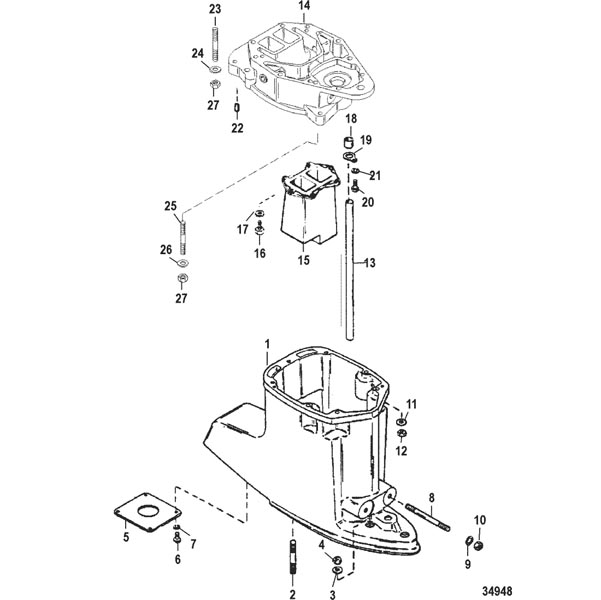

| 1 |
1581-8683A57 |
|
|
|
|
HOUSING ASSEMBLY, Driveshaft |
1 |
8683T57 |
No Longer Available |
| 2 |
16-59579 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.812) |
3 |
|
|
| 3 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
3 |
|
|
| 4 |
11-859116 |
|
|
|
|
NUT, (.4375-20) |
3 |
134391 |
|
| 5 |
818261 |
|
|
|
|
PLATE, Exhaust Block Off |
1 |
|
|
| 6 |
10-28635 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
4 |
|
|
| 7 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
4 |
|
|
| 8 |
16-818908 |
|
|
|
|
STUD, (.500-13/.500-20 x 4.120) |
2 |
|
|
| 9 |
12-816056 |
|
|
|
|
WASHER |
2 |
|
|
| 10 |
11-898832 |
|
|
|
|
NUT, (.500-20) |
2 |
28040 |
|
| 11 |
12-822838 |
|
|
|
|
WASHER, (.401 x .745 x .097) |
10 |
|
|
| 12 |
11-82671013 |
|
|
|
|
NUT, (.375-24) |
8 |
34932 |
|
| 12 |
11-826709113 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
2 |
|
|
| 13 |
32-8476503 |
|
|
|
|
TUBE, Water |
1 |
|
|
| 14 |
848284T11 |
|
|
|
|
PLATE ASSEMBLY, Extension - Exhaust |
1 |
|
No Longer Available |
| 15 |
848545T1 |
|
|
|
|
EXTENSION, Exhaust |
1 |
|
|
| 16 |
10-823258 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
6 |
|
|
| 17 |
12-822714 |
|
|
|
|
WASHER |
6 |
|
|
| 18 |
26-88397 |
|
|
|
|
SEAL |
1 |
|
|
| 19 |
8476581 |
|
|
|
|
RETAINER |
1 |
|
|
| 20 |
10-28635 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
|
| 21 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
1 |
|
|
| 22 |
17-8M0043826 |
|
|
|
|
PIN, Dowel (.875), PLATE TO POWERHEAD |
2 |
823106 |
|
| 22 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625), PLATE TO DRIVESHAFT HOUSING |
2 |
|
|
| 23 |
16-56295 |
|
|
|
|
STUD, (.437 x 2.69) |
3 |
|
|
| 24 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
3 |
|
|
| 25 |
16-54674 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.250) |
2 |
|
|
| 26 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
2 |
|
|
| 27 |
11-859116 |
|
|
|
|
NUT, (.4375-20) |
5 |
134391 |
|
