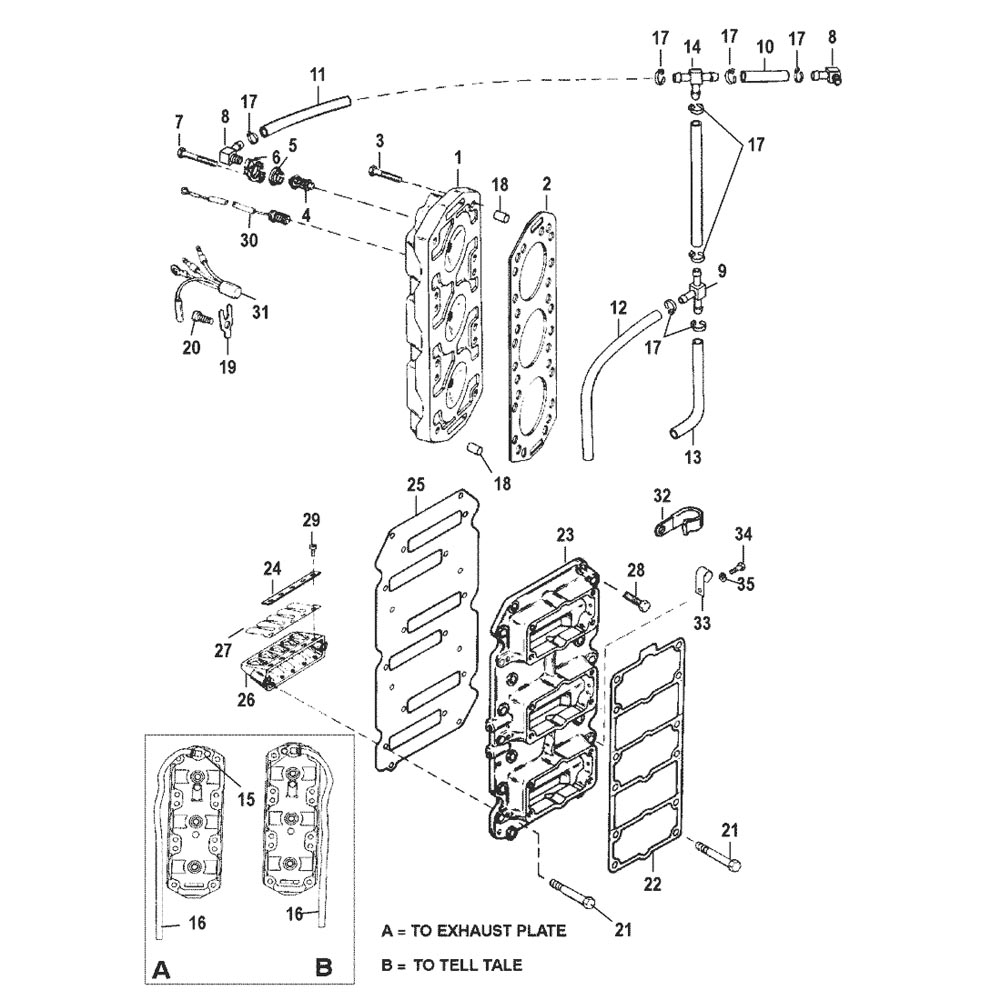

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
18789F1 |
|
|
|
|
CYLINDER HEAD |
2 |
|
|
| 2 |
27-8146581 |
|
|
|
|
GASKET |
2 |
|
|
| 3 |
10-98534 |
|
|
|
|
SCREW, (.375-16 x 2.30) |
24 |
|
|
| 4 |
75692 |
|
|
|
|
THERMOSTAT |
2 |
|
|
| 5 |
27-62386001 |
|
|
|
|
GASKET |
2 |
62386 |
|
| 6 |
90390A1 |
|
|
|
|
COVER KIT |
2 |
|
|
| 7 |
10-35386 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
4 |
|
|
| 8 |
22-136071 |
|
|
|
|
ELBOW, WATER HOSES |
2 |
|
|
| 9 |
22-815914 |
|
|
|
|
T-FITTING |
1 |
|
|
| 10 |
32-8M0108349 |
|
|
|
|
TUBING, (.312) (70.00 Inches Bulk) (2-1/2 IN.) |
1 |
830757130 |
|
| 11 |
32-77653101 |
|
|
|
|
HOSE, (48.00 Inches Bulk) (10-1/2 IN.) |
1 |
|
|
| 12 |
32-77653101 |
|
|
|
|
HOSE, (48.00 Inches Bulk) (14-1/2 IN.) |
1 |
|
|
| 13 |
32-8M0108349 |
|
|
|
|
TUBING, (.312) (70.00 Inches Bulk) (7-1/2 IN.) |
2 |
830757130 |
|
| 14 |
22-90824001 |
|
|
|
|
TEE |
1 |
90824 |
|
| 15 |
22-687271 |
|
|
|
|
FITTING, (.250-18) 90 Degree - Brass |
2 |
|
|
| 16 |
32-774572 |
|
|
|
|
HOSE, (48.00 Inches Bulk) (20 IN.) |
2 |
|
|
| 17 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 18 |
17-63779 |
|
|
|
|
PIN, Dowel (.250 x .625) |
4 |
|
|
| 19 |
137151 |
|
|
|
|
RETAINER |
2 |
|
|
| 20 |
10-98257 |
|
|
|
|
SCREW, (.312-18 x .500) |
2 |
|
|
| 21 |
10-28668 |
|
676-9-78127 |
700-22440 |
|
SCREW, (.250-20 x .875) Stainless Steel |
12 |
|
|
| 22 |
27-167371 |
|
|
|
|
GASKET |
1 |
|
|
| 23 |
12124A3 |
|
|
|
|
PLATE ASSEMBLY |
1 |
|
|
| 24 |
903911 |
|
|
|
|
CLAMP, Reed |
12 |
|
|
| 25 |
27-883775 |
|
|
|
|
GASKET |
1 |
813859 |
|
| 26 |
87692T3 |
|
|
|
|
BLOCK |
6 |
876922 |
|
| 27 |
34-815242A3 |
|
|
|
|
REED KIT |
6 |
|
|
| 28 |
10-28668 |
|
676-9-78127 |
700-22440 |
|
SCREW, (.250-20 x .875) Stainless Steel |
8 |
|
|
| 29 |
10-823588 |
|
|
|
|
SCREW, (#8-32 x .250) |
84 |
|
|
| 30 |
78799 |
|
|
|
|
SENDER, Temperature (19.50 Inch) |
1 |
|
|
| 31 |
13536A6 |
|
|
|
|
SENSOR ASSEMBLY, Temperature |
1 |
|
|
| 32 |
54-55098 |
|
|
|
|
J CLIP |
1 |
|
|
| 33 |
54-23567 |
|
|
|
|
CLIP |
1 |
|
|
| 34 |
10-878608 |
|
|
|
|
SCREW, (#10-16 x .500) |
1 |
812832 |
|
| 35 |
8M0084613 |
|
|
|
|
C WASHER |
1 |
69205 |
|
| - |
27-813859A95 |
|
|
|
|
GASKET SET |
1 |
|
|
| - |
809430T01 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
809430T95 |
|
