225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Fuel Management System

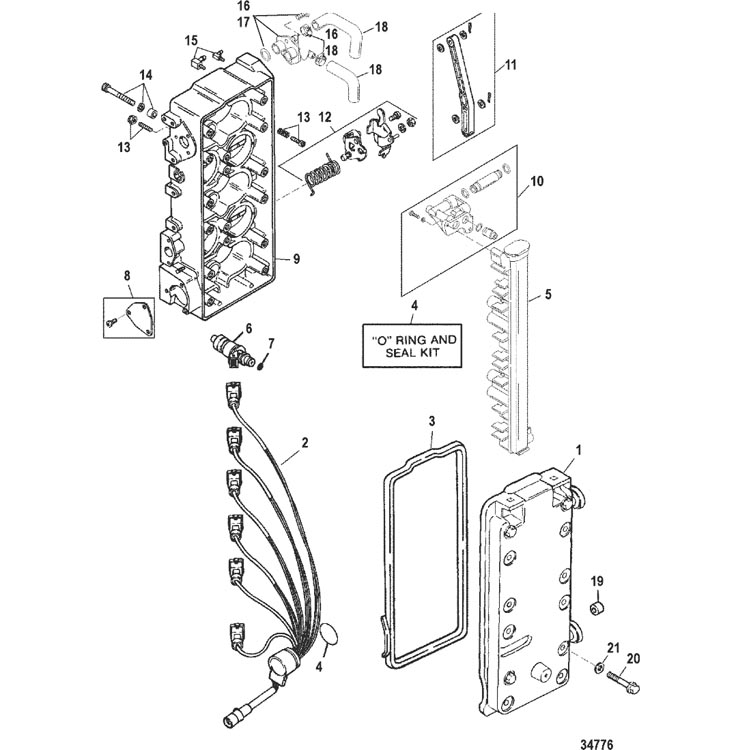

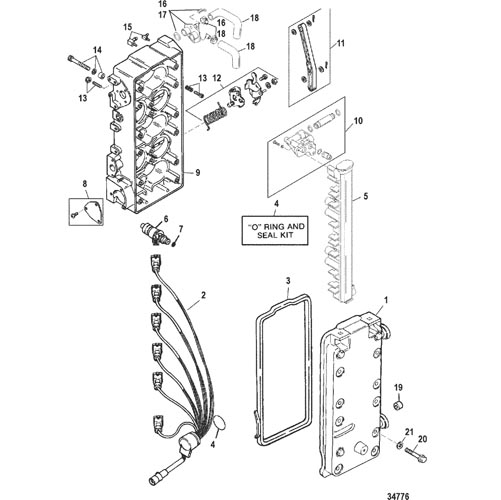

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14817A31 | MANAGEMENT ASSEMBLY, Fuel | 1 | 14817A23 | |||||
| 1 | 8276922 | COVER | 1 | ||||||
| 2 | 84-15443 | HARNESS KIT | 1 | ||||||
| 3 | 26-18792 | SEAL | 1 | ||||||
| 4 | 15029 | O-RING AND SEAL KIT | 1 | ||||||
| 5 | 827699T2 | FUEL RAIL | 1 | 8276992 | |||||
| 6 | 18715T | INJECTOR, Fuel | 6 | 18715 | |||||
| 7 | 35-17422 | FILTER | 1 | ||||||
| 8 | 827696 | RETAINER KIT | 1 | ||||||
| 9 | 8276933 | THROTTLE BODY | 1 | ||||||
| 10 | 8090572 | JOINT KIT | 1 | ||||||
| 11 | 8276891 | LINK KIT | 1 | ||||||
| 12 | 827697 | LEVER KIT, Link | 1 | ||||||
| 13 | 10-827698 | SCREW KIT | 1 | ||||||
| 14 | 10-8276981 | SCREW KIT | 1 | ||||||
| 15 | 22-8090851 | ELBOW KIT | 1 | ||||||
| 16 | 814233A02 | SCHRADER VALVE KIT | 1 | 814233A1 | |||||
| 17 | 8142332 | FMA JOINT KIT | 1 | ||||||
| 18 | 32-827694A01 | HOSE KIT | 1 | 8276942 | |||||
| 19 | 67748 | ROLLER | 1 | ||||||
| 20 | 10-845674 | SCREW, (.250-20 x 4) | 12 | 90088 | |||||
| 21 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 10 |
