| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

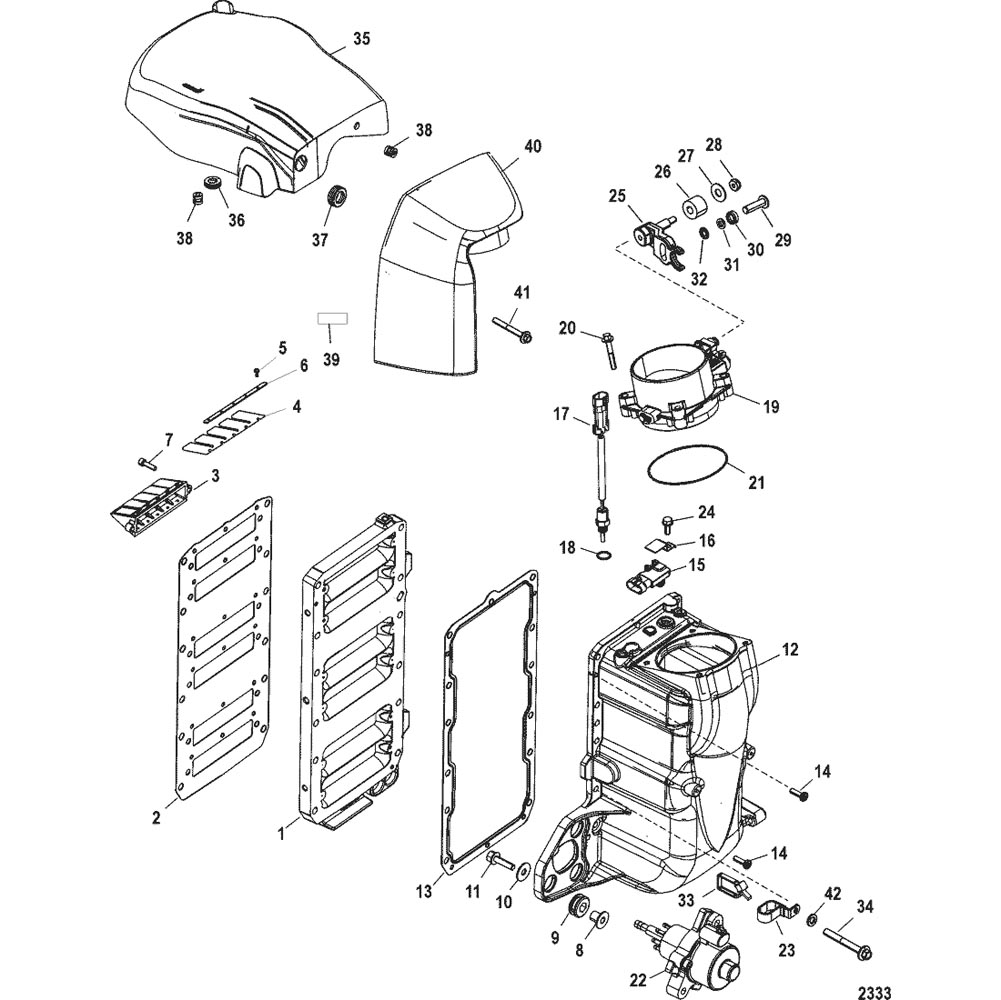

878112T07 |
|
|
|
|
AIR HANDLER ASSEMBLY, Complete |
1 |
878112T05 |
|
| 1 |
858541T4 |
|
|
|
|
ADAPTOR PLATE |
1 |
|
|
| 2 |
27-841220 |
|
|
|
|
GASKET |
1 |
|
|
| 3 |
840418T04 |
|
|
|
|
REED BLOCK ASSEMBLY |
6 |
840418T2 |
|
| 4 |
34-840445A04 |
|
|
|
|
REED PETAL KIT |
1 |
840445A3 |
|
| 5 |
10-849038 |
|
|
|
|
SCREW, (M3 x 5) |
60 |
|
|
| 6 |
840447 |
|
|
|
|
REED PLATE |
12 |
|
|
| 7 |
10-8555252 |
|
|
|
|
SCREW, (M6) |
12 |
|
|
| 8 |
23-855364 |
|
|
|
|
BUSHING |
3 |
|
|
| 9 |
25-855362001 |
|
|
|
|
GROMMET |
3 |
855362 |
|
| 10 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
3 |
|
|
| 11 |
10-81893430 |
|
|
|
|
SCREW, (M8 x 30) |
3 |
|
|
| 12 |
858539T4 |
|
|
|
|
PLENUM KIT, Air |
1 |
|
No Longer Available |
| 13 |
27-804679004 |
|
|
|
|
GASKET |
1 |
8046793 |
|
| 14 |
10-883942 |
|
|
|
|
SCREW, (M4 x 16) |
2 |
|
|
| 15 |
854445 |
|
|
|
|
SENSOR, MAP |
1 |
|
|
| 16 |
884522 |
|
|
|
|
BRACKET, MAP Sensor |
1 |
|
|
| 17 |
885342002 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
885342001 |
|
| 18 |
25-896699 |
|
|
|
|
O-RING, (.351 x .072) |
1 |
888814 |
|
| 19 |
841194T2 |
|
|
|
|
THROTTLE BODY KIT |
1 |
|
No Longer Available |
| 20 |
10-82130040 |
|
|
|
|
SCREW, (M6 x 40) |
4 |
|
|
| 21 |
25-855426 |
|
|
|
|
O-RING |
1 |
|
|
| 22 |
8M0101629 |
|
|
|
|
PUMP ASSEMBLY, Oil |
1 |
857149T2 |
|
| 23 |
54-804842 |
|
|
|
|
CLAMP |
1 |
|
No Longer Available |
| 24 |
10-1993716 |
|
|
|
|
SCREW, (M6 x 16) |
1 |
|
|
| 25 |
858851A03 |
|
|
|
|
LEVER ASSEMBLY, Throttle |
1 |
|
|
| 26 |
8M0072162 |
|
|
|
|
ROLLER |
1 |
889610 |
|
| 27 |
12-56681 |
|
|
|
|
WASHER, (.203 x .500 x .032) |
1 |
|
|
| 28 |
11-826709104 |
|
|
|
|
NUT, (#8-32) Stainless Steel |
1 |
|
|
| 29 |
10-889354 |
|
|
|
|
SCREW, Special |
1 |
|
|
| 30 |
12-881991 |
|
|
|
|
WASHER, Cupped |
1 |
|
|
| 31 |
12-881992 |
|
|
|
|
WASHER, Spool |
1 |
|
No Longer Available |
| 32 |
13-69432 |
|
|
|
|
LOCKWASHER, External (#10) |
1 |
|
|
| 33 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
1 |
|
|
| 34 |
10-82130040 |
|
|
|
|
SCREW, (M6 x 40) |
11 |
|
|
| 35 |
850296T05 |
|
|
|
|
COVER |
1 |
850296A5 |
|
| 36 |
25-86361 |
|
|
|
|
GROMMET |
1 |
|
|
| 37 |
25-13467 |
|
|
|
|
GROMMET, (.88 Inside Diameter) |
1 |
|
|
| 38 |
25-821555001 |
|
|
|
|
GROMMET |
2 |
821555 |
|
| 39 |
37-881865 |
|
|
|
|
DECAL, Caution-Start in Gear |
1 |
|
|
| 40 |
854343T11 |
|
|
|
|
ATTENUATOR, Air |
1 |
|
|
| 41 |
10-82130045 |
|
|
|
|
SCREW, (M6 x 45) |
1 |
|
|
| 42 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
1 |
|
|
| - |
27-841220A03 |
|
|
|
|
GASKET SET, Powerhead |
1 |
|
|
