| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

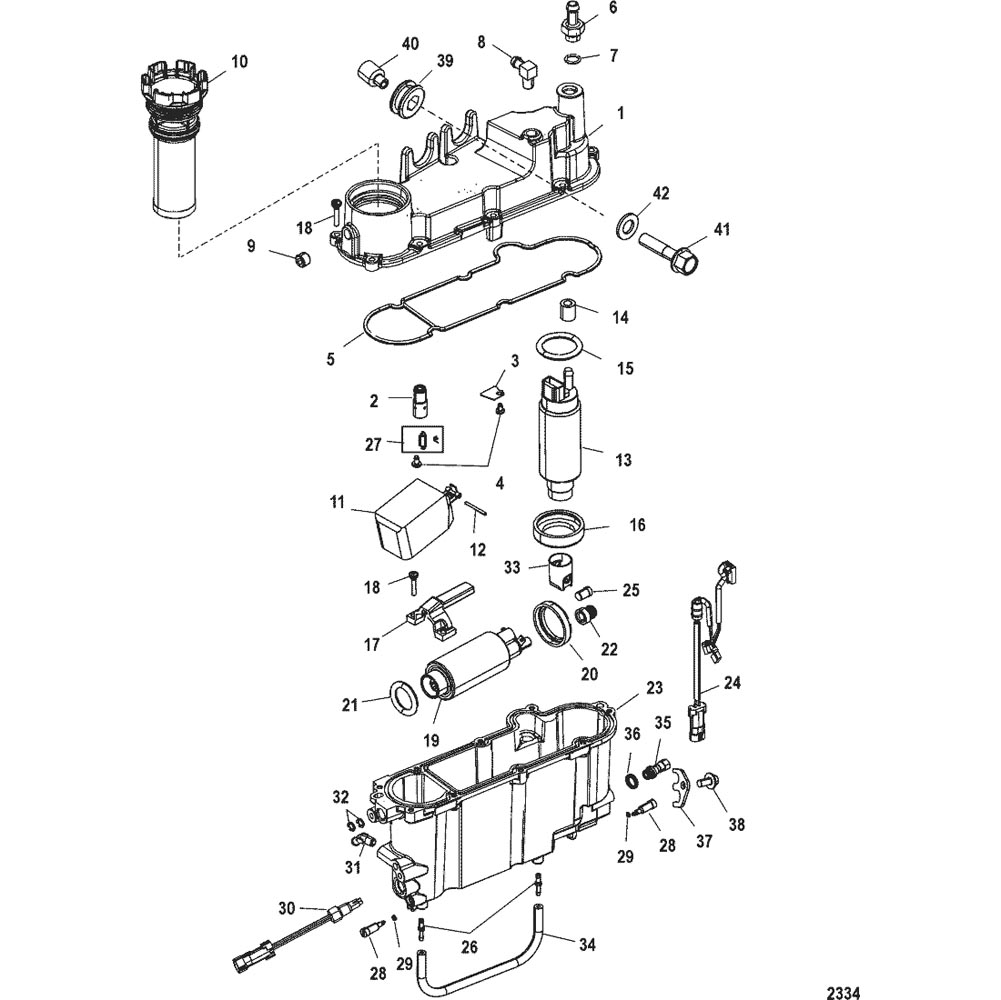

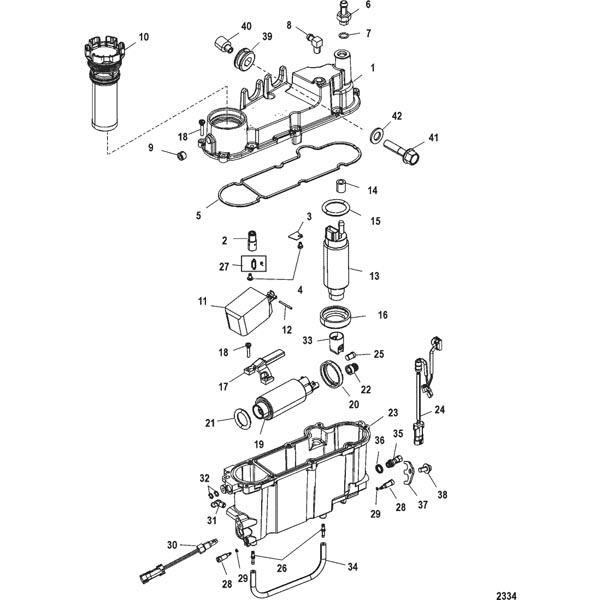

880133T12 |
|
|
|
|
VAPOR SEPARATOR ASSEMBLY |
1 |
880133T07 |
|
| 1 |
889317T1 |
|
|
|
|
COVER KIT |
1 |
|
|
| 2 |
NSS |
|
|
|
|
Seat |
1 |
|
Not Sold Separate |
| 3 |
889318001 |
|
|
|
|
PLATE, Baffle |
1 |
|
|
| 4 |
10-883223 |
|
|
|
|
SCREW, (M6 x 16) |
2 |
|
|
| 5 |
27-889319 |
|
|
|
|
GASKET |
1 |
|
|
| 6 |
22-883556 |
|
|
|
|
FITTING |
1 |
|
|
| 7 |
25-8M0062785 |
|
|
|
|
O-RING |
1 |
883209 |
|
| 8 |
22-14868 |
|
|
|
|
FITTING |
1 |
|
|
| 9 |
19-883208 |
|
|
|
|
PLUG |
1 |
|
|
| 10 |
35-8M0060041 |
|
|
|
|
FILTER, Fuel |
1 |
884380T |
|
| 11 |
889320A1 |
|
|
|
|
FLOAT KIT |
1 |
|
|
| 12 |
F10064 |
|
|
|
|
SHAFT |
1 |
|
|
| 13 |
888725T02 |
|
|
|
|
PUMP ASSEMBLY, Fuel - High Pressure |
1 |
|
|
| 14 |
23-8M6000589 |
|
|
|
|
SLEEVE |
1 |
855428 |
|
| 15 |
25-8893162 |
|
|
|
|
O-RING |
1 |
|
|
| 16 |
26-889321 |
|
|
|
|
SEAL |
1 |
|
No Longer Available |
| 17 |
889328 |
|
|
|
|
RETAINER |
1 |
|
|
| 18 |
1395-9643 |
|
|
|
|
SCREW |
11 |
|
|
| 19 |
888733T02 |
|
|
|
|
PUMP ASSEMBLY, Boost |
1 |
|
|
| 20 |
25-889322 |
|
|
|
|
GROMMET |
1 |
|
|
| 21 |
25-889316 |
|
|
|
|
O-RING |
1 |
|
|
| 22 |
26-8M6001413 |
|
|
|
|
SEAL |
1 |
889323 |
|
| 23 |
889324T03 |
|
|
|
|
BOWL KIT |
1 |
889324T02 |
|
| 24 |
84-889325A02 |
|
|
|
|
WIRE |
1 |
889325A1 |
|
| 25 |
NSS |
|
|
|
|
Check Valve |
1 |
|
Not Sold Separate |
| 26 |
22-855424011 |
|
|
|
|
FITTING |
2 |
|
|
| 27 |
889326A1 |
|
|
|
|
VALVE KIT, Inlet |
1 |
|
|
| 28 |
10-889327A1 |
|
|
|
|
SCREW, Drian |
2 |
|
|
| 29 |
25-8893161 |
|
|
|
|
O-RING |
2 |
|
|
| 30 |
8M0021043 |
|
|
|
|
SENSOR, Water |
1 |
889330 |
|
| 31 |
22-782792 |
|
|
|
|
FITTING, Elbow45 Degree (1.25) |
1 |
|
|
| 32 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
2 |
|
|
| 33 |
889430 |
|
|
|
|
INSERT |
1 |
|
|
| 34 |
32-883545002 |
|
|
|
|
HOSE |
1 |
|
|
| 35 |
884820 |
|
|
|
|
SHRADER VALVE |
1 |
|
|
| 36 |
25-891778 |
|
|
|
|
O-RING |
1 |
|
|
| 37 |
54-884819 |
|
|
|
|
CLIP |
1 |
|
|
| 38 |
10-82130012 |
|
|
|
|
SCREW, (M6 x 12) |
1 |
|
|
| 39 |
25-855362001 |
|
|
|
|
GROMMET |
3 |
855362 |
|
| 40 |
23-883050 |
|
|
|
|
SPACER |
3 |
|
|
| 41 |
10-81893460 |
|
|
|
|
SCREW, (M8 x 60) |
3 |
|
|
| 42 |
12-4002318 |
|
|
|
|
WASHER |
3 |
|
|
| - |
25-889316A1 |
|
|
|
|
O-RING KIT, Vapor Seperator |
1 |
|
|
