250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Fuel Rails

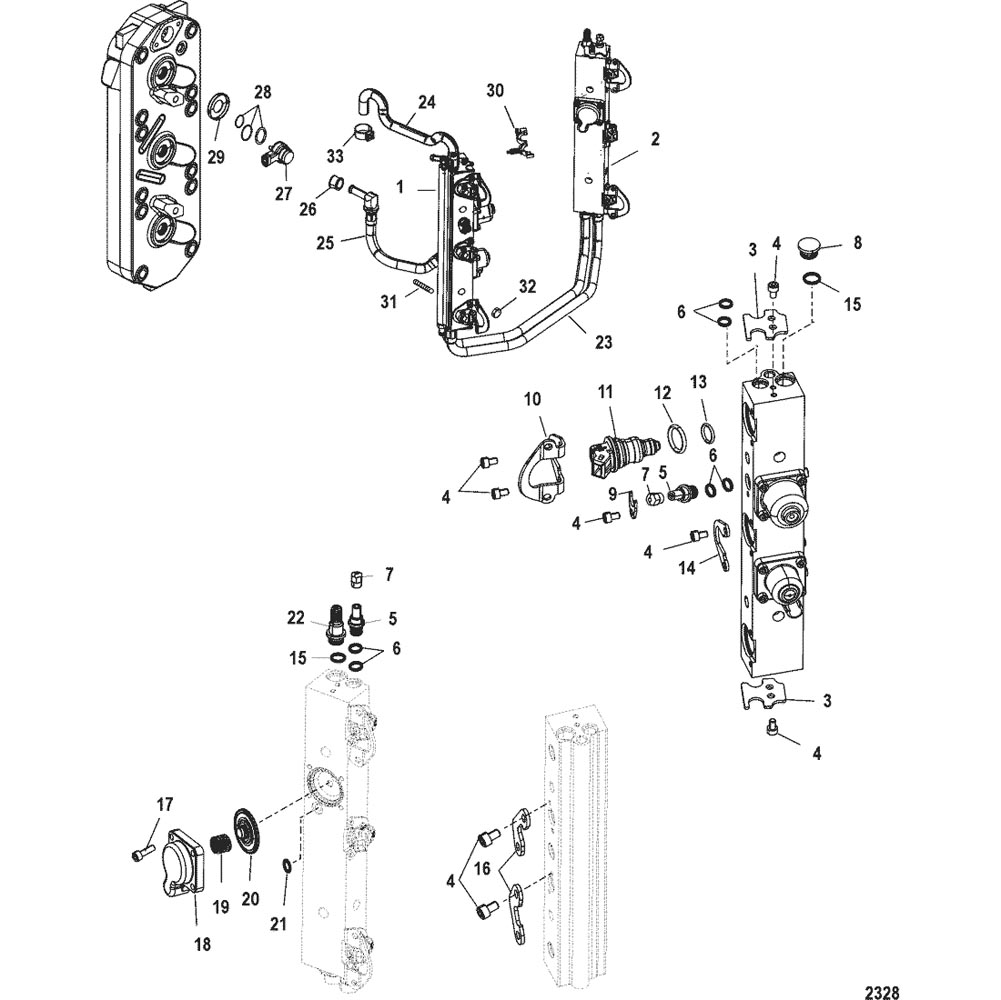

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 844144T01         FUEL RAIL, Port 1 884429T17 No Longer Available
2 844145T01         FUEL RAIL ASSEMBLY, Starboard 1 884430T07 No Longer Available
3 54-804830         CLAMP 4
4 804525001         SCREW PACKAGE, (M5 x 8) (2 Per) 11 804525 No Longer Available
5 8M0047053         VALVE ASSEMBLY, (.375 Inch Diameter) 2 883542
6 25-804840         O-RING KIT 1
7 22-805515         CAP, Shrader Valve - Brass 2
8 19-804835         PLUG 1
9 54-8M0041097         CLAMP 1
10 54-8048311         CLAMP 4
11 804528         INJECTOR 6
12 25-804530         O-RING KIT, Contains 6 pcs 1
13 25-804529         O-RING KIT, Contains 6 pcs 1
14 804522         CLAMP 2
15 804532         O-RING KIT (16 Per Kit) 1
16 54-804832         CLAMP 2
17 804526         SCREW PACKAGE, (M5 x 16) (2 Per) 4
18 804535001         COVER 1
19 24-804534001         SPRING 1
20 804533         DIAPHRAGM ASSEMBLY 1
21 25-804536         O-RING 1
22 22-804836         FITTING 1
23 32-804827         HOSE 1 No Longer Available
24 32-889310         HOSE, Fuel Supply 1 No Longer Available
25 32-889311         HOSE, Fuel By Pass 1 No Longer Available
NS 25-804840         O-RING KIT 1
26 26-888852         SEAL, Fuel Director 1
27 8M6001744         INJECTOR ASSEMBLY, Air 6 884595A02
28 26-804875         SEAL KIT 1
29 12-828694A1         WASHER ASSEMBLY, Cupped 6
30 54-859376         CLIP, Conduit 4
31 16-8M0063255         STUD, (M10 x 91) 4 858778
32 11-826292         NUT, (M10) Brass/Nickel Plated 4
33 54-856880         CLAMP, Hose (15.3) 1
