250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Transom Bracket(Heavy Duty)

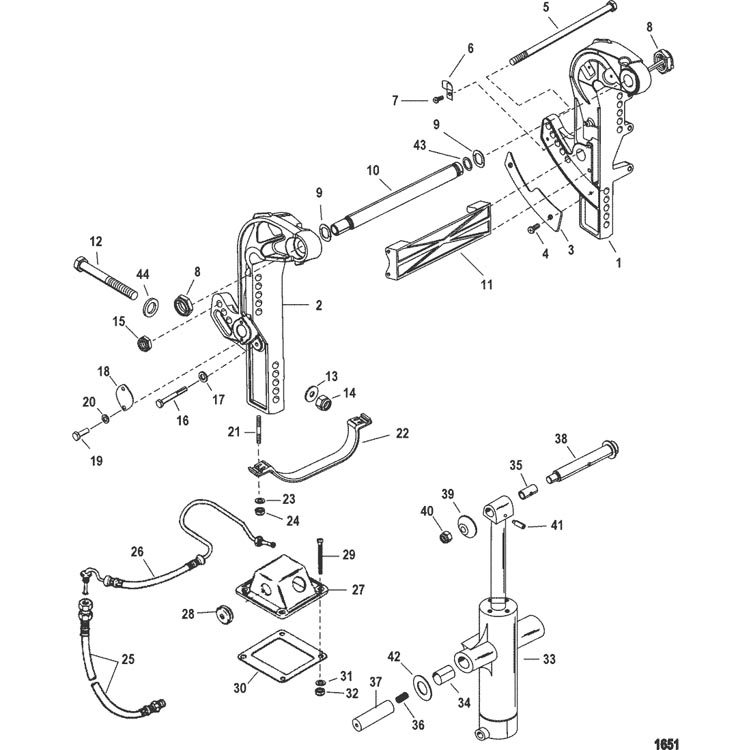

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1494-844353T01         BRACKET ASSEMBLY, Transom 1   No Longer Available
2 1495-844353A01         BRACKET ASSEMBLY, Transom 1 847801A1 No Longer Available
3 847798A02         WEAR PAD KIT 1 847798A1
4 10-86843         SCREW, (#10-24 x .500) 4
5 10-87180         BOLT, (.500-20 x 11.00) 1
6 54-88512         CLAMP 4
6 54-75275         CLAMP 2
7 10-88829         SCREW, (#10-24 x .500) 6
8 11-858869         NUT, (.875-14) 1
8 11-82671327         NUT, (1.00-14) 1   No Longer Available
9 13-88750         WASHER 2
10 826125A1         TUBE KIT, Tilt 1   No Longer Available
11 85035T         SPACER 1
12 10-677551         SCREW, (.500-20 x 4.500) 4
13 12-28421         WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 4
14 11-82671117         NUT, (.500-20) 4
15 11-82671317         NUT, (.500-20) 1
16 10-70732         SCREW, (.250-20 x 2.00) 4
17 12-29245         WASHER, (.281 x .500 x .060) Stainless Steel 4
18 85026T         PLATE 2
19 10-28636         SCREW, (.250-20 x .750) 4
20 12-29245         WASHER, (.281 x .500 x .060) Stainless Steel 4
21 16-8M0034451         STUD, (.312-24 x 1.380) 4 54343
22 89949A1         PLATE ASSEMBLY 1
23 12-847539         WASHER 4
24 11-82670911         NUT, (.312-24) Stainless Steel 4
25 32-89024         HOSE, Hydraulic 1
25 32-89023         HOSE, Hydraulic 1
26 32-96993         HOSE, Hydraulic 1
26 32-96994         HOSE, Hydraulic 1
27 87871T         COVER 1 87871
28 25-45507         GROMMET 1
29 10-32866         SCREW, (#10-32 x 2.00) Stainless Steel 4
30 27-87775         GASKET 1
31 12-20878         WASHER 4
32 11-826709106         NUT, (#10-32) 4 29488
33 79610A33         TRIM CYLINDER 1   No Longer Available
33 79610A33         TRIM CYLINDER 1 79610A21 No Longer Available
34 23-847724         BUSHING 2
35 23-841223         BEARING 1
36 24-30316         SPRING 2
37 17-85020T         PIN, Pivot 2
38 841199         PIN, Trim 1
38 8220752         PIN, Trim 1
39 822076         RETAINER 1
40 11-82671317         NUT, (.500-20) 1
41 10-8071791         SET SCREW, (.250-20 x .820) 1
42 12-85022         WASHER 2
43 25-45711         O-RING, (.612 x .103) 1
44 12-54012         WASHER, (.530 x .870 x .105) Stainless Steel 4
- 79879A1         REPAIR KIT (FOR TRIM CYLINDERS) 1
