250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Crankshaft, Pistons And Connecting Rods

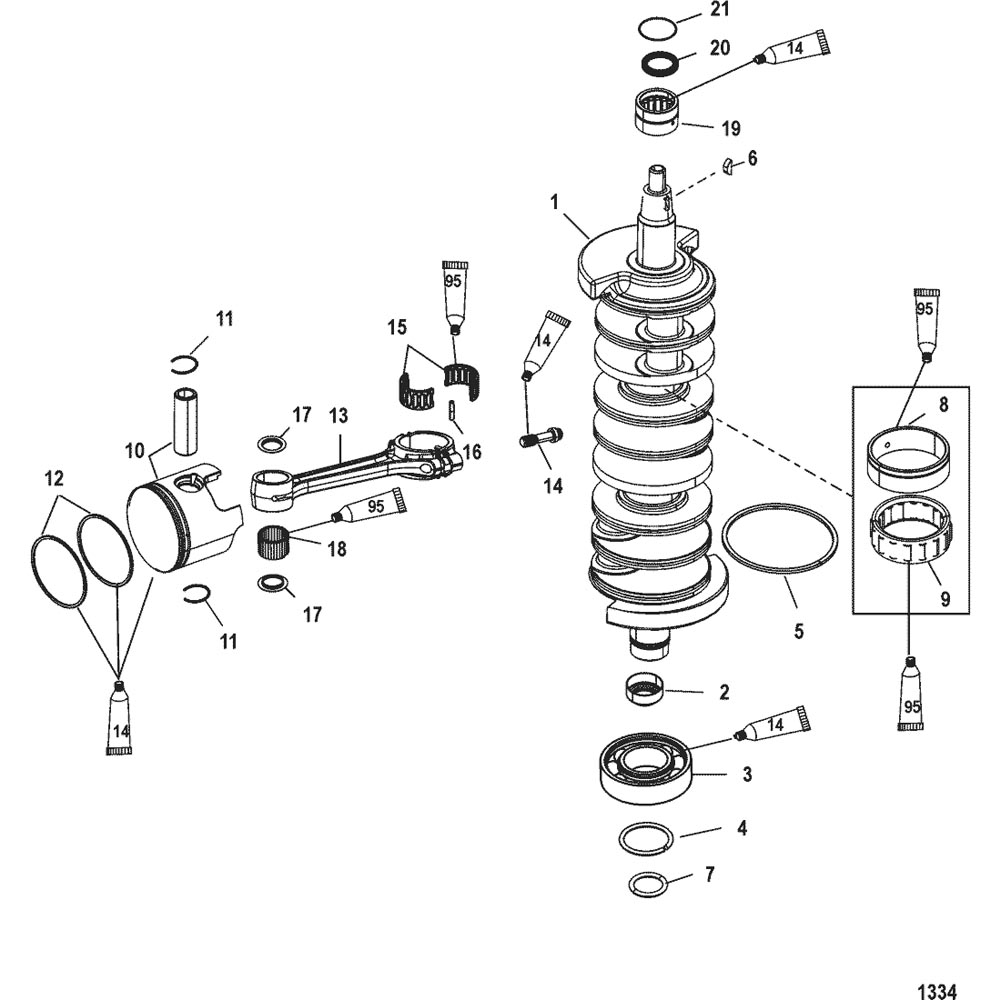

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Cap
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oiling System
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate
- Speedometer Pickup
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Note 1: Refference # 14 - Apply Light Oil To Threads And Bolt Face; 1st Torque- 15 lb-in. (1.5 Nm). | |||||||||
| Note 2: 2nd Torque - 30 lb-ft (40.5). Turn Bolt An Additional 90 Degrees After 2nd Torque Is Attained. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 482-842753A02 | CRANKSHAFT | 1 | 9784A14 | |||||
| 2 | NSS | Wear Sleeve | 1 | Not Sold Separate | |||||
| 3 | 30-67923T | BEARING, Ball, Lower | 1 | ||||||
| 4 | 53-67446 | RING | 1 | ||||||
| 5 | 39-8M0071646 | RING, Seal | 7 | 843198 | |||||
| 6 | 28-91800 | KEY, Woodruff | 1 | ||||||
| 7 | 25-35126 | O-RING, (.859 x .139) | 1 | ||||||
| 8 | 31-88270A02 | RACE ASSEMBLY | 2 | 88270A1 | |||||
| 9 | 31-88269T | BEARING ASSEMBLY | 2 | ||||||
| 10 | 2720-841015T1 | PISTON | 3 | ||||||
| 10 | 2720-841016T1 | PISTON | 3 | ||||||
| 11 | 40-841202 | RING | 12 | ||||||
| 12 | 39-827179A12 | RING SET, Piston | 1 | ||||||
| 13 | 647-822373A09 | CONNECTING ROD ASSEMBLY | 6 | 822373A7 | |||||
| 14 | 10-94320 | SCREW, (.375-24 x 1.250) | 12 | ||||||
| 15 | 31-844338A01 | BEARING/CAGE KIT | 6 | 43012A1 | |||||
| 16 | NSS | Needle Roller Bearing | 96 | Not Sold Separate | |||||
| 17 | 12-88263 | THRUST WASHER | 12 | ||||||
| 18 | 29-88258001 | NEEDLE, Roller Bearing | 204 | 88258 | |||||
| 19 | 31-816773A2 | BEARING ASSEMBLY, Upper | 1 | ||||||
| 20 | 26-859093 | SEAL | 1 | ||||||
| 21 | 25-823683 | O-RING, (1.989 x .070) | 1 | ||||||
| - | 61-841017A52 | POWERHEAD ASSEMBLY | 1 | 841017A03 | |||||
| - | 27-841220A03 | GASKET SET, Powerhead | 1 | ||||||
