| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

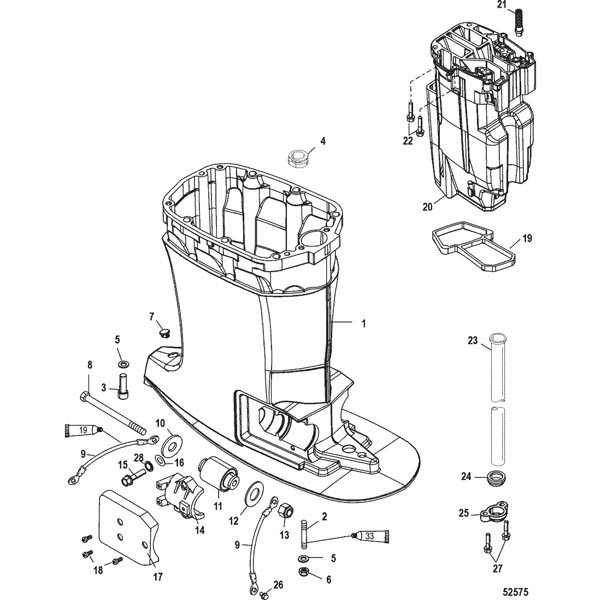

| 1 |
3518-832937A06 |
|
|
|
|
HOUSING ASSEMBLY, Driveshaft |
1 |
832937A05 |
|
| 2 |
16-8M0035042 |
|
|
|
|
STUD, (M10 x 74) |
4 |
90350017 |
|
| 2 |
16-8M0045821 |
|
|
|
|
STUD, (M12 x 65) |
4 |
848843 |
|
| 3 |
10-892860 |
|
|
|
|
SCREW, (M12 x 35), Internal Hex |
1 |
|
|
| 3 |
10-857136 |
|
|
|
|
SCREW, (M12 x 35 MM), External Hex |
1 |
|
|
| 4 |
25-8331231 |
|
|
|
|
GROMMET |
1 |
|
|
| 5 |
12-4002321 |
|
|
|
|
WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel |
2 or 4 |
|
|
| 5 |
12-856982 |
|
|
|
|
WASHER, (.500 x .810 x .090) Stainless Steel |
1 |
|
|
| 6 |
11-896895 |
|
|
|
|
NUT, (M12) |
4 |
|
|
| 7 |
19-64649 |
|
|
|
|
PLUG |
1 |
|
|
| 8 |
10-898834 |
|
|
|
|
BOLT, (M14 x 178) |
2 |
|
|
| 9 |
88238A10 |
|
|
|
|
CABLE ASSEMBLY, Ground |
2 |
|
|
| 10 |
12-815432 |
|
|
|
|
WASHER, (.562 x 2.00 x .125) |
4 |
|
|
| 11 |
8M0055931 |
|
|
|
|
MOUNT |
2 |
840361 |
|
| 12 |
12-825190 |
|
|
|
|
WASHER |
2 |
|
|
| 13 |
11-896602 |
|
|
|
|
NUT, (M14) |
2 |
|
|
| - |
879150A90 |
|
|
|
|
COVER KIT, Lower Mount |
1 |
|
|
| 14 |
100-8M4501003 |
|
|
|
|
CLAMP |
1 |
|
|
| 15 |
100-8M4501006 |
|
|
|
|
COVER, Lower Mount |
1 |
|
|
| 16 |
10-69079 |
|
|
|
|
SCREW, (#10-16 x .440) |
3 |
|
|
| 17 |
10-8M0084475 |
|
|
|
|
SCREW, (M8 x 40) |
4 |
8M0033179 |
|
| 18 |
12-847541 |
|
|
|
|
WASHER |
4 |
|
|
| 19 |
8329321 |
|
|
|
|
SEAL |
1 |
|
|
| 20 |
8M0075818 |
|
|
|
|
TUBE ASSEMBLY, Exhaust |
1 |
|
|
| 21 |
35-8M0026113 |
|
|
|
|
STRAINER |
1 |
8524052 |
|
| 22 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
4 |
|
|
| 23 |
32-8M0042785 |
|
|
|
|
TUBE, Water |
1 |
8329417 |
|
| 23 |
32-8M0042786 |
|
|
|
|
TUBE, Water |
1 |
8329418 |
|
| 23 |
32-8M0042787 |
|
|
|
|
TUBE, Water |
1 |
8329419 |
|
| 24 |
832940001 |
|
|
|
|
SEAL |
1 |
|
|
| 25 |
8329391 |
|
|
|
|
CLAMP |
1 |
|
|
| 26 |
10-41508 |
|
|
|
|
SCREW, (.250-20 x .500) Stainless Steel |
1 |
|
|
| 27 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
2 |
|
|
| 28 |
13-72521 |
|
|
|
|
LOCKWASHER, Internal Tooth |
1 |
|
|
