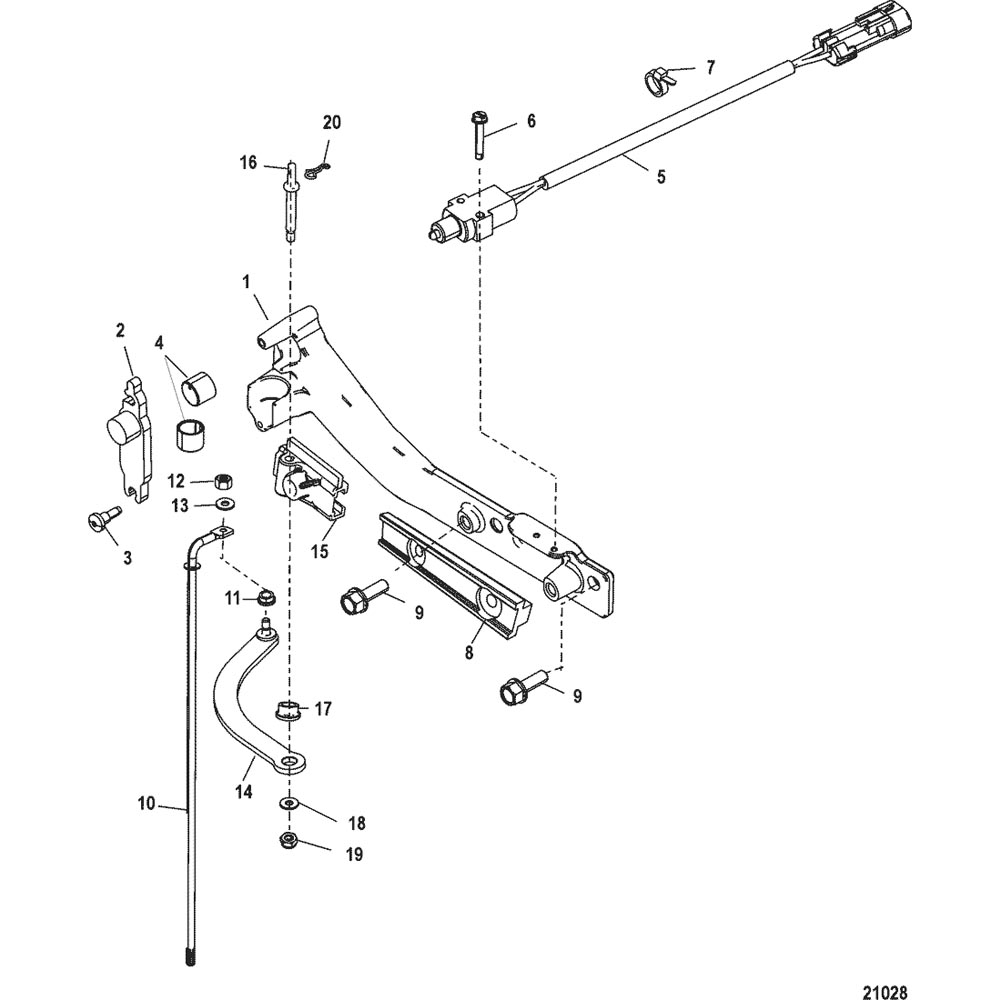

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
899080T01 |
|
|
|
|
BRACKET ASSEMBLY, Anchor |
1 |
|
|
| 2 |
824016 |
|
|
|
|
LATCH |
1 |
|
|
| 3 |
10-42975 |
|
|
|
|
DRIVE SCREW |
2 |
|
|
| 4 |
824015 |
|
|
|
|
CUP, Barrel Retainer |
2 |
|
|
| 5 |
87-8M0052939 |
|
|
|
|
SWITCH |
1 |
|
|
| 6 |
10-82470620 |
|
|
|
|
SCREW, (M3.5 x 20) |
2 |
|
|
| 7 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
1 |
|
|
| 8 |
8M0033943 |
|
|
|
|
SHIFT RAIL |
1 |
|
|
| 9 |
8M0006893 |
|
|
|
|
SCREW, (M8 x 25 MM) |
4 |
|
|
| 10 |
8M0026171 |
|
|
|
|
SHIFT SHAFT, Upper |
1 |
|
|
| 10 |
8M0026172 |
|
|
|
|
SHIFT SHAFT, Upper |
1 |
|
|
| 10 |
8M0026173 |
|
|
|
|
SHIFT SHAFT, Upper |
1 |
|
|
| 11 |
23-892263 |
|
|
|
|
BUSHING |
1 |
|
|
| 12 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 13 |
12-69056 |
|
|
|
|
WASHER, (.255 x .620 x .030) Stainless Steel |
1 |
|
|
| 14 |
899083 |
|
|
|
|
LINK, Shift |
1 |
|
|
| 15 |
8M0085621 |
|
|
|
|
SLIDE, Shift |
1 |
899082 |
|
| 16 |
8M0000793 |
|
|
|
|
PIN, Shift Link |
1 |
|
|
| 17 |
23-896551 |
|
|
|
|
BUSHING |
1 |
|
|
| 18 |
12-69056 |
|
|
|
|
WASHER, (.255 x .620 x .030) Stainless Steel |
1 |
|
|
| 19 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 20 |
8M0001157 |
|
|
|
|
PIN, Bow Tie Clip |
1 |
|
|
