| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
NSS |
|
|
|
|

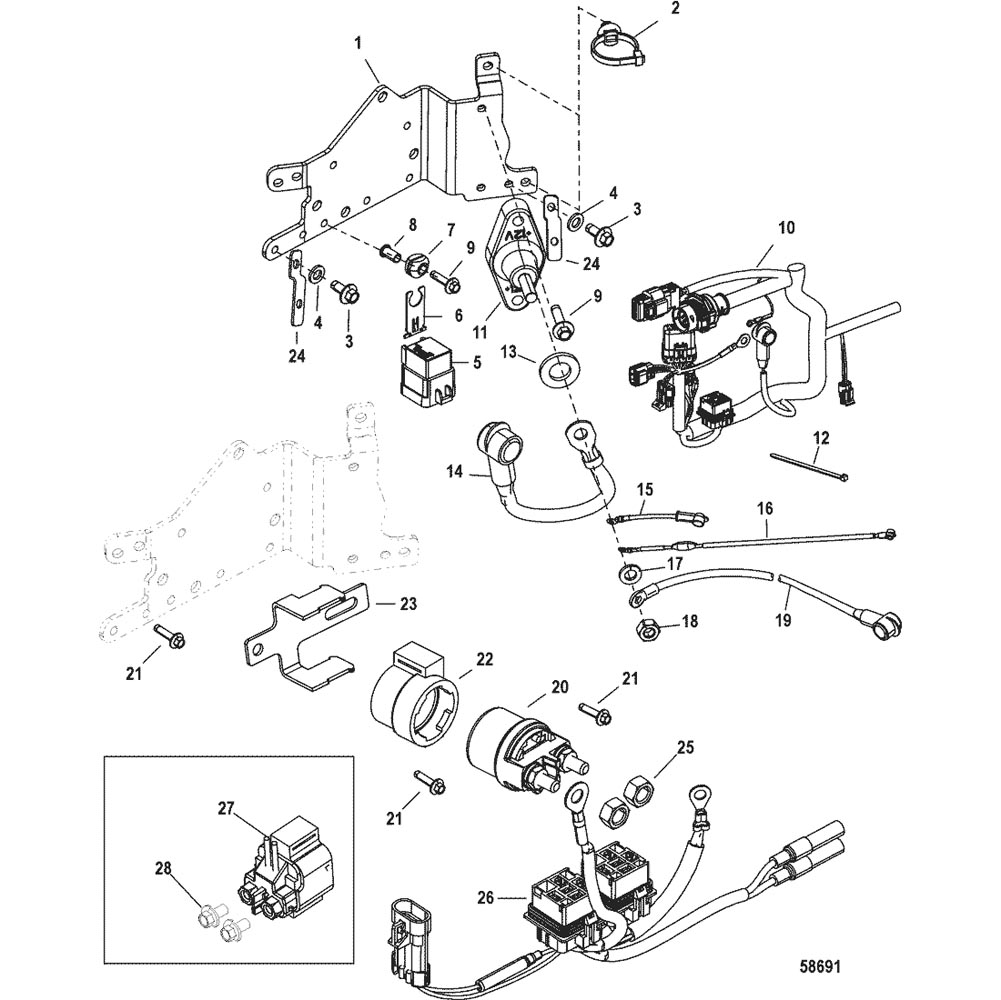

Electrical Plate Assembly-Complete |
1 |
|
Not Sold Separate |
| 1 |
899071T01 |
|
|
|
|
PLATE |
1 |
|
|
| 2 |
54-899145 |
|
|
|
|
CLIP, Tie Strap |
2 |
|
|
| 3 |
10-82129114 |
|
|
|
|
SCREW, (M6 x 14) |
2 |
|
|
| 4 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 5 |
882751A1 |
|
|
|
|
RELAY ASSEMBLY |
3 |
|
|
| 6 |
828102 |
|
|
|
|
BRACKET |
3 |
|
|
| 7 |
25-818967 |
|
|
|
|
GROMMET |
3 |
|
|
| 8 |
23-818968 |
|
|
|
|
BUSHING |
3 |
|
|
| 9 |
10-82129125 |
|
|
|
|
SCREW, (M6 x 25 MM) |
5 |
|
|
| 10 |
84-8M0065142 |
|
|
|
|
HARNESS ASSEMBLY, Engine |
1 |
|
|
| - |
88-832969T20 |
|
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
3 |
83296920 |
|
| - |
88-8329692 |
|
|
|
|
FUSE, Mini - Gray - 2 Ampere |
1 |
|
|
| - |
88-832969T05 |
|
|
|
|
FUSE, Mini - Tan - 5 Ampere |
1 |
8329695 |
|
| - |
879346A49 |
|
|
|
|
HARNESS REPAIR KIT, Direct Injector |
1 |
|
|
| - |
879346A50 |
|
|
|
|
HARNESS REPAIR KIT, Fuel Injector |
1 |
|
|
| - |
84-881262A2 |
|
|
|
|
HARNESS ASSEMBLY, Alternator |
1 |
|
|
| - |
84-879346A41 |
|
|
|
|
HARNESS ASSEMBLY, Throttle Position Sensor |
1 |
878073A2 |
|
| 11 |
85-875302A1 |
|
|
|
|
HOT STUD ASSEMBLY |
1 |
|
|
| 12 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 13 |
12-85172 |
|
|
|
|
WASHER |
1 |
|
|
| 15 |
84-93388A17 |
|
|
|
|
CABLE ASSEMBLY, (8.50 Inches) |
1 |
|
|
| 16 |
84-878231A6 |
|
|
|
|
HARNESS ASSEMBLY, Fuse - 100 Ampere |
1 |
|
|
| 17 |
13-26993 |
|
|
|
|
LOCKWASHER, (.312) |
1 |
|
|
| 18 |
11-400213 |
|
|
|
|
NUT, (M8) Stainless Steel |
1 |
|
|
| 19 |
84-88439A46 |
|
|
|
|
CABLE ASSEMBLY, Battery - Positive |
1 |
|
|
| 20 |
825096T01 |
|
|
|
|
SOLENOID, Starter, Design-I |
1 |
|
No Longer Available |
| 21 |
10-82129110 |
|
|
|
|
SCREW, (M6 x 10) |
3 |
|
|
| 22 |
8M0010250 |
|
|
|
|
BRACKET, Design-I |
1 |
|
|
| 24 |
858953 |
|
|
|
|
BRACKET |
2 |
|
|
| 25 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel, Design-I |
2 |
|
|
| 26 |
84-8M0065143 |
|
|
|
|
HARNESS ASSEMBLY, Trim |
1 |
|
|
| 27 |
89-8M0098898 |
|
|
|
|
RELAY |
1 |
|
|
| 28 |
10-8M0085874 |
|
|
|
|
SCREW |
2 |
|
|
