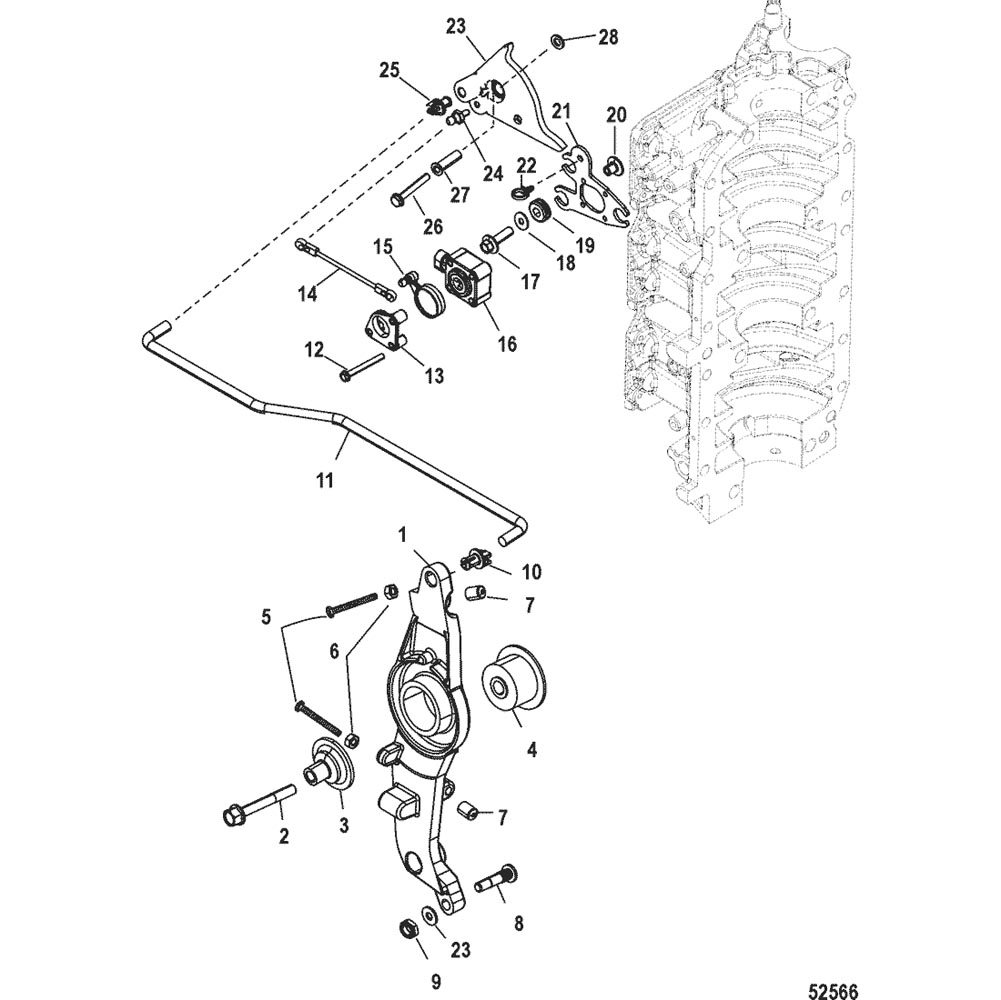

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
8M0040987 |
|
|
|
|
LEVER |
1 |
8252682 |
|
| 2 |
10-81893460 |
|
|
|
|
SCREW, (M8 x 60) |
1 |
|
|
| 3 |
23-887605 |
|
|
|
|
BUSHING |
1 |
|
|
| 4 |
23-821113 |
|
|
|
|
BUSHING |
1 |
|
|
| 5 |
10-40124 |
|
|
|
|
SCREW, (M6 x 55) |
2 |
|
|
| 6 |
11-400212 |
|
|
|
|
NUT, (M6) Stainless Steel |
2 |
|
|
| 7 |
42942 |
|
|
|
|
CAP |
2 |
|
|
| 8 |
42927 |
|
|
|
|
INSERT |
1 |
|
|
| 9 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 10 |
23-932481 |
|
|
|
|
BUSHING |
1 |
|
|
| 11 |
884834 |
|
|
|
|
LINK |
1 |
|
|
| 12 |
10-40011113 |
|
|
|
|
SCREW, (M5 x 45) Stainless Steel |
3 |
|
|
| 13 |
8582261 |
|
|
|
|
COVER |
1 |
|
|
| 14 |
8M0008111 |
|
|
|
|
LINK |
1 |
|
|
| 15 |
883081 |
|
|
|
|
LEVER |
1 |
|
|
| 16 |
83295211 |
|
|
|
|
INDICATOR, Throttle Position |
1 |
|
|
| 17 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
3 |
|
|
| 18 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 19 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 20 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 21 |
8544862 |
|
|
|
|
BRACKET |
1 |
|
|
| 22 |
54-858932 |
|
|
|
|
CLIP |
1 |
|
|
| 23 |
8M0065991 |
|
|
|
|
CAM ASSEMBLY |
1 |
|
|
| 24 |
8235694 |
|
|
|
|
--BALL, Threaded |
1 |
|
|
| 25 |
23-932481 |
|
|
|
|
--BUSHING |
1 |
|
|
| 26 |
10-40011155 |
|
|
|
|
SCREW, (M8 x 55) Stainless Steel |
1 |
|
|
| 27 |
23-8807371 |
|
|
|
|
BUSHING |
1 |
|
|
| 28 |
12-56720 |
|
|
|
|
WASHER, (.330 x .750 x .060) Stainless Steel |
1 |
|
|
