Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Bell Housing

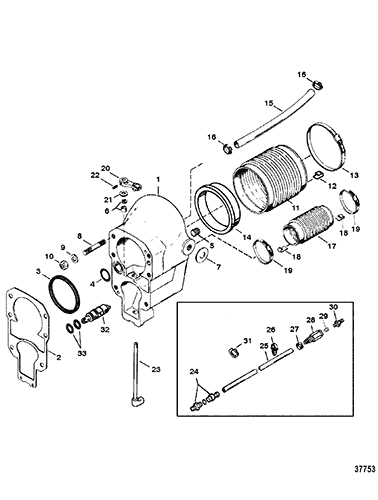

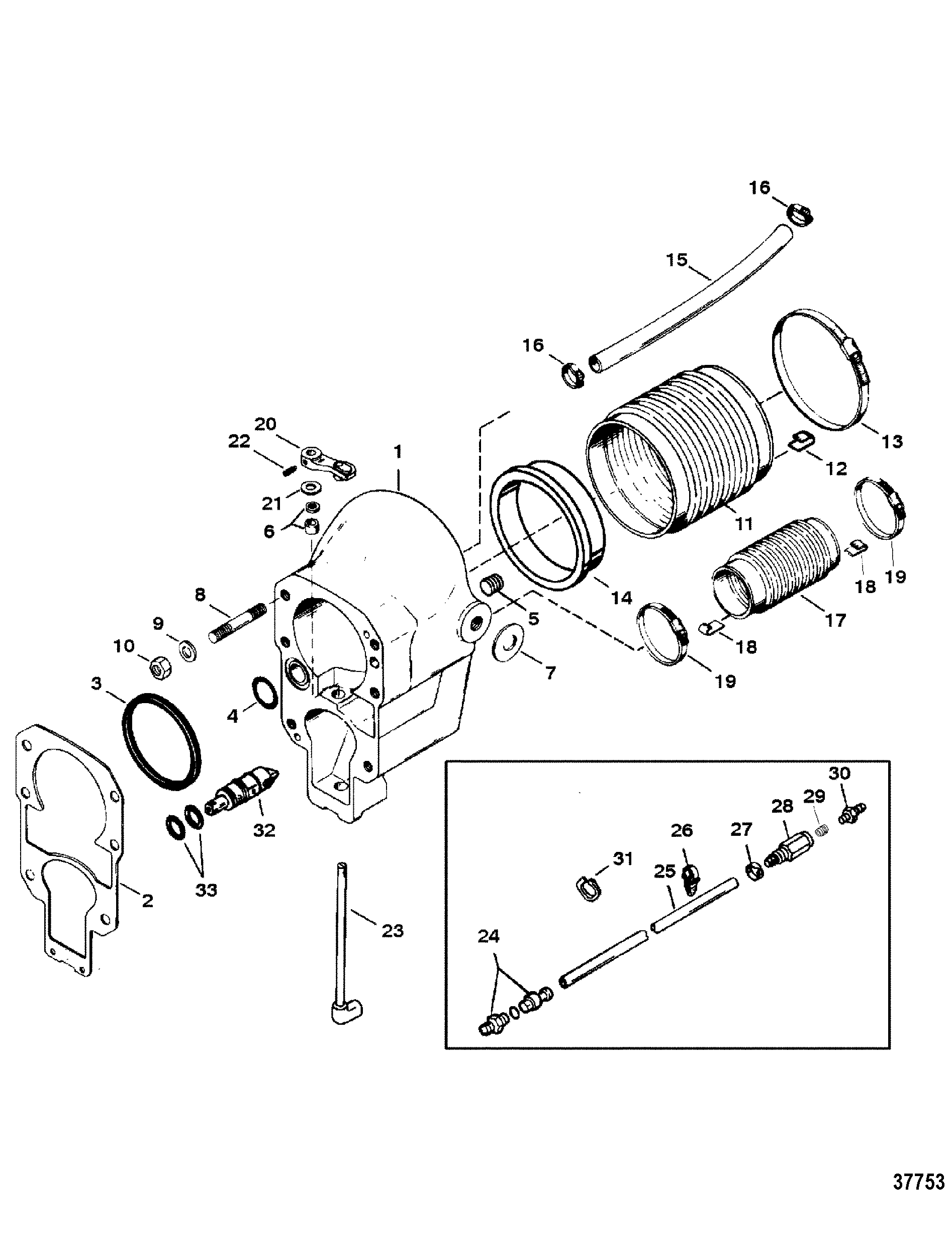

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806031A2 | BELL HOUSING ASSEMBLY | 1 | ||||||
| 2 | 27-94996Q2 | 676-9-62600 or 676-9-62601 |
GASKET KIT | 1 | 27-64818A3 | ||||
| 3 | 27-35982 | GASKET, Rubber | 1 | ||||||
| 4 | 25-33504 | O-RING | 1 | ||||||
| 5 | 22-328022 | PLUG, Pipe (.125-27) | 1 | 22-328021 | |||||
| 6 | 23-806036A1 | BUSHING/SEAL KIT, Oil | 1 | ||||||
| 7 | 12-72498 | WASHER, Synthane | 2 | ||||||
| 8 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 6 | ||||||
| 9 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel | 6 | ||||||
| 10 | 11-859116 | NUT, (.4375-20) | 6 | 11-134391 | |||||
| 11 | 816431A1 | BELLOWS ASSEMBLY, Universal Joint | 1 | ||||||
| 12 | 54-86049 | 676-9-73116 | 700-89440 | CLIP, Grounding | 1 | ||||
| 13 | 54-815504372 | 700-01100 | CLAMP, Worm Gear | 1 | |||||
| 14 | 816607 | SLEEVE | 1 | ||||||
| 15 | 32-8M0062309 | HOSE | 1 | 32-4172533 | |||||
| 16 | 54-815504412 | CLAMP, Worm Gear | 2 | ||||||
| 17 | 18654A1 | BELLOWS ASSEMBLY | 1 | ||||||
| 18 | 54-86049 | 676-9-73116 | 700-89440 | CLIP, Grounding | 2 | ||||
| 19 | 54-815504348 | 700-01070 | CLAMP, Worm Gear | 2 | |||||
| 20 | 45518A3 | LEVER ASSEMBLY | 1 | ||||||
| 21 | 12-39116 | WASHER | 1 | ||||||
| 22 | 10-45590 | SCREW, (.250-28) | 1 | ||||||
| 23 | 816685 | SHIFT SHAFT, Upper | 1 | ||||||
| 24 | 22-815956A1 | COUPLING ASSEMBLY, Speedometer | 1 | ||||||
| 25 | 32-5495053 | TUBING, (53.00 Feet Bulk) | 1 | ||||||
| 26 | 54-12994 | CLIP | 1 | ||||||
| 27 | 865261 | CLAMP | 1 | 54-816606 | |||||
| 28 | 865261 | FITTING ASSEMBLY | 1 | 22-816594A1 | |||||
| 29 | 22-56800 | PLUG, Pipe (.0625-27) | 1 | ||||||
| 30 | 22-814382 | CONNECTOR | 1 | ||||||
| 31 | 54-818557 | CLAMP | 2 | ||||||
| 32 | 18920A1 | VALVE ASSEMBLY | 1 | USE WITH OIL RESERVOIR | |||||
| 33 | 25-48171 | O-RING, (.364. x .070) | 2 | USE WITH OIL RESERVOIR |
