Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Power Trim Cylinder Repair Kits

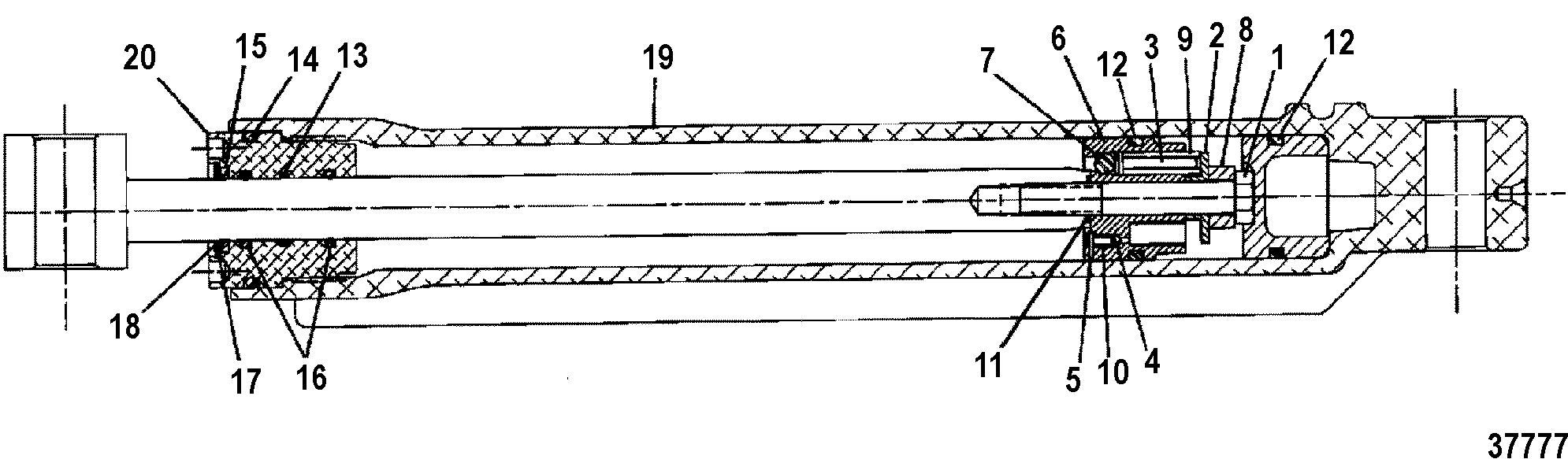

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Note: DO NOT SUBSTITUTE O RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 87399A3



OVERHAUL KIT 1
1 NSS



Not Sold Separate, SCREW 1
This part is not sold separately 2
2 NSS



Not Sold Separate, SPRING SEAT 1   This part is not sold separately 2
3 NSS



Not Sold Separate, VALVE SEAT 3
This part is not sold separately 2
4 NSS



Not Sold Separate, STEEL BALL (.109 DIA.) 1   This part is not sold separately 2
5 NSS



Not Sold Separate, SPRING PIN 1   This part is not sold separately 2
6 NSS



Not Sold Separate, SHOCK PISTON 1   This part is not sold separately 2
7 NSS



Not Sold Separate, STEEL BALL (.250 DIA.) 3   This part is not sold separately 2
8 NSS



Not Sold Separate, SPACER 1   This part is not sold separately 2
9 NSS



Not Sold Separate, COMPRESSION SPRING 3   This part is not sold separately 2
10 NSS



Not Sold Separate, SPRING 1   This part is not sold separately 2
- 25-87400A2



SEAL KIT 1
11 NSS



Not Sold Separate, O-RING 1   This part is not sold separately 2
12 NSS



Not Sold Separate, O-RING 2   This part is not sold separately 2
13 NSS



Not Sold Separate, SPRING 2   This part is not sold separately 2
14 NSS



Not Sold Separate, O-RING 1   This part is not sold separately 2
15 NSS



Not Sold Separate, SCRAPER ROD 1   This part is not sold separately 2
16 NSS



Not Sold Separate, O-RING 2   This part is not sold separately 2
17 NSS



Not Sold Separate, WASHER 1   This part is not sold separately 2
18 NSS



Not Sold Separate, RETAINING RING 1   This part is not sold separately 2
19 815935T



TUBE 1   (PORT CYLINDER)
19 815954T



TUBE 1   (STARBOARD CYLINDER)
20 806191T



CAP 2
