| Note: For Continuity Circuit Components, see the 'Continuity Kit' Section |

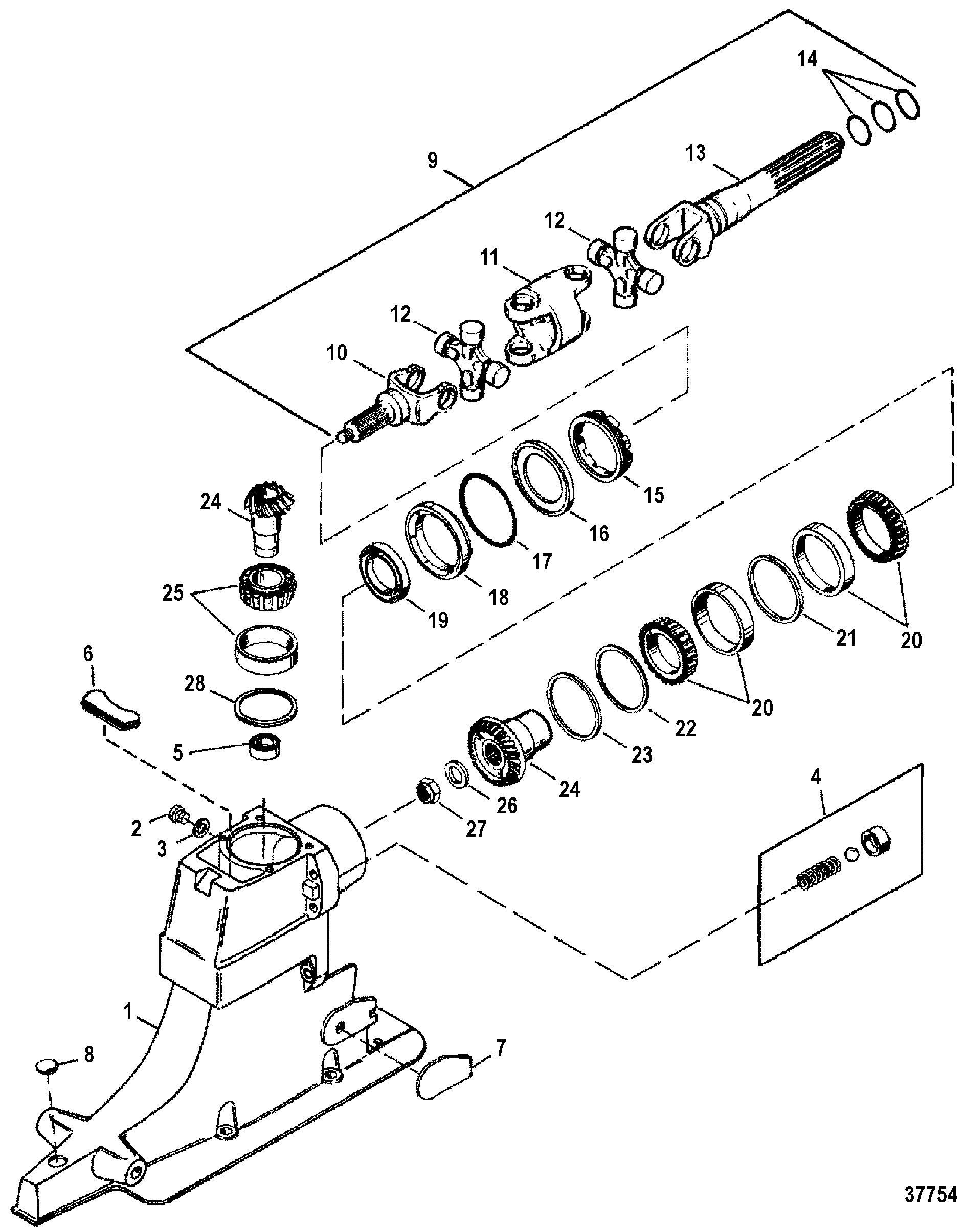

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
1547-815930A7 |
|
|
|
|
HOUSING ASSEMBLY, Driveshaft |
1 |
|
|
| 2 |
10-79953Q04 |
|
|
|
|
SCREW KIT, (.375-16 x .250) |
1 |
10-79953A2 |
|
| 3 |
12-191833 |
|
|
|
525-12-191833 |
WASHER, Fiber |
1 |
12-19183 |
4 |
| 4 |
24-17997A1 |
|
|
700-12930 |
|
SPRING KIT |
1 |
|
|
| 5 |
26-66302 |
|
|
700-85011 |
|
SEAL, Oil |
2 |
|
SN# 0M400411 & Below |
| 5 |
26-864319 |
|
|
|
|
SEAL, Oil |
1 |
|
SN# 0M400412 & Up 4 |
| 6 |
861738 |
|
|
|
|
PLUG |
1 |
821564 |
No longer made, limited availability |
| 7 |
8M2015937 |
|
|
|
|
WEAR PAD |
1 |
814386 |
(PORT) |
| 7 |
879346T30 |
|
|
|
|
WEAR PAD |
1 |
814387 |
(STARBOARD) |
| 8 |
19-824928001 |
|
|
|
525-19-824928001 |
PLUG |
1 |
19-32297 |
|
| 9 |
814819A2 |
|
676-9-72409 |
700-28050 |
|
UNIVERSAL JOINT |
1 |
|
|
| 10 |
46020T02 |
|
|
|
|
YOKE, Gear End |
1 |
46020T |
|
| 11 |
393831 |
|
|
|
|
SOCKET, Center |
1 |
39383T |
|
| 12 |
805536A2 |
|
676-9-72406 |
|
|
CROSS AND BEARING |
2 |
|
|
| 13 |
814819A3 |
|
676-9-72401 |
|
|
YOKE, Coupler End |
1 |
|
|
| 14 |
25-29845 |
|
|
|
525-25-29845 |
O-RING, (.924 x .103) |
2 |
|
4 |
| 14 |
25-35027 |
|
676-9-76507 |
700-81180 |
525-25-35027 |
O-RING, (1.046) |
1 |
|
4 |
| 15 |
8168112 |
|
676-9-72154 |
|
|
RETAINER |
1 |
8168111 |
|
| 16 |
35983 |
|
676-9-78105 |
700-28390 |
|
RING |
1 |
|
|
| 17 |
25-70937 |
|
676-9-76551 |
700-82380 |
|
O-RING |
1 |
|
4 |
| 18 |
66081A2 |
|
|
700-28370 |
|
CARRIER ASSEMBLY |
1 |
|
|
| 19 |
26-823894 |
|
676-9-76102 |
|
|
SEAL, Oil |
1 |
|
4 |
| 20 |
31-35988A12 |
|
676-9-75123 |
700-21520 |
|
BEARING KIT, Roller |
1 |
|
|
| 21 |
23-35985 |
|
|
|
|
SPACER |
1 |
|
|
| 22 |
15-35980A1 |
|
|
700-23280 |
|
SHIM SET |
AR |
|
3 |
| 23 |
15-71013 |
|
|
700-28380 |
|
SHIM, Spacer |
1 |
|
|
| 24 |
43-55778A3 |
|
|
700-11240 |
|
GEAR KIT |
1 |
|
(2.40:1 AND 1.94:1 RATIO) (20-24 GEARS) |
| 24 |
43-75325A3 |
|
|
700-11230 |
|
GEAR KIT |
1 |
|
(1.81:1 RATIO) (17-19 GEARS) |
| 24 |
43-45814A5 |
|
|
700-11220 |
|
GEAR KIT |
1 |
|
(1.62:1 RATIO) (24-24 GEARS) |
| 24 |
43-18411A2 |
|
|
700-11210 |
|
GEAR KIT |
1 |
|
(1.47:1 RATIO) (20-22 GEARS) |
| 25 |
31-35990A1 |
|
676-9-75122 |
|
|
BEARING ASSEMBLY, Roller |
1 |
|
|
| 25 |
31-32573A1 |
|
|
700-21560 |
|
BEARING ASSEMBLY, Roller |
1 |
|
(1.47:1 RATIO ONLY) |
| 26 |
12-45810 |
|
676-9-78107 |
700-28330 |
|
WASHER |
1 |
|
|
| 27 |
11-22339 |
|
|
700-28360 |
525-11-22339 |
NUT, (.625-18) |
1 |
|
|
| 28 |
15-36178A02 |
|
|
|
|
SHIM SET |
AR |
15-36178A1 |
3 |
| - |
26-88397A1 |
|
|
700-87501 |
|
SEAL KIT, Driveshaft Housing |
- |
|
|
