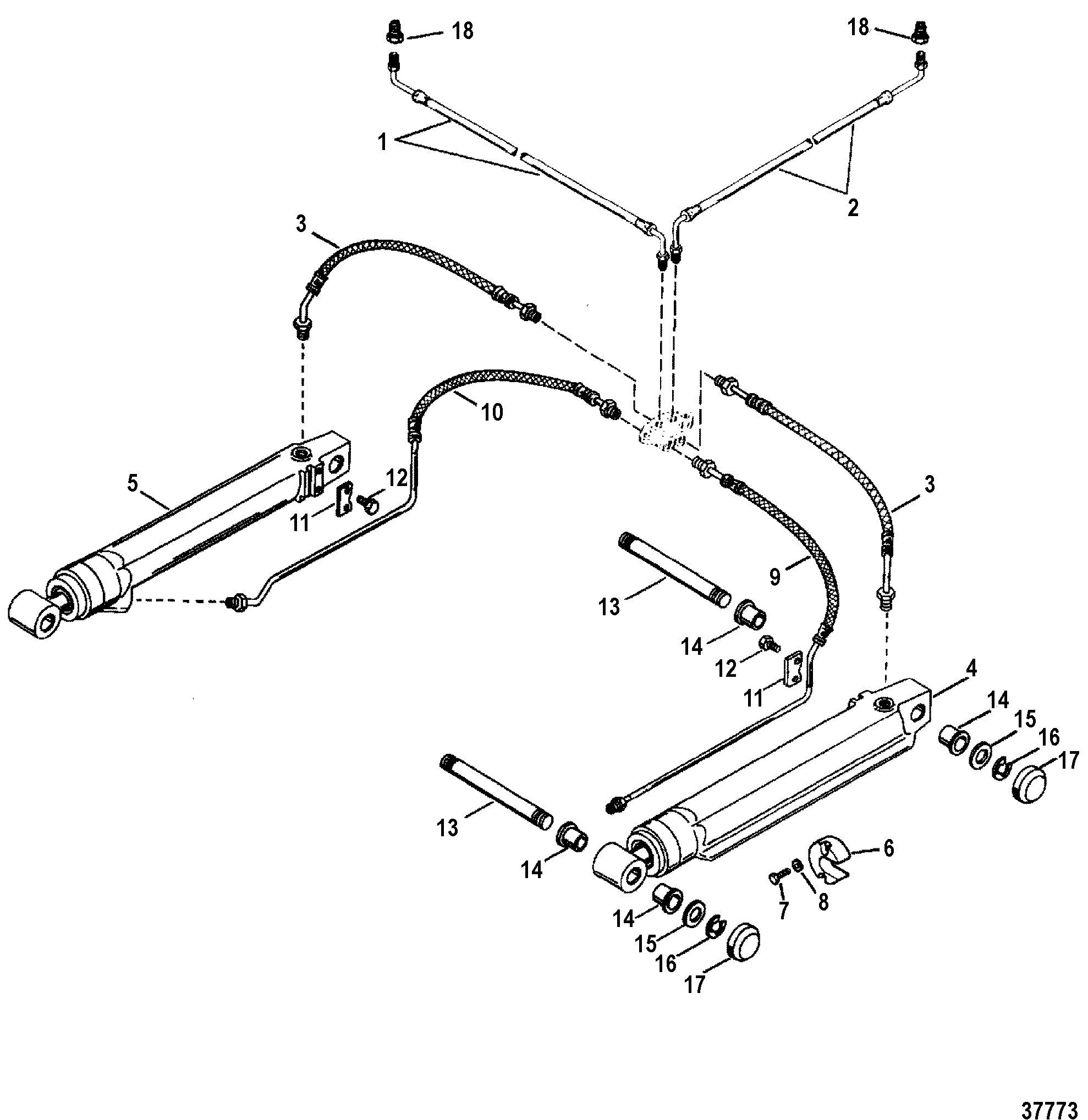

| Note: SEE "POWER TRIM CYLINDER REPAIR KITS" SECTION FOR BREAKDOWN OF TRIM CYLINDERS. |
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
32-861127 |
|
676-9-71516 |
|
|
HOSE, Black, CONNECTOR TO PUMP |
1 |
32-95858 |
|
| 2 |
32-861128 |
|
676-9-71512 |
|
|
HOSE, Gray, CONNECTOR TO PUMP |
1 |
32-95859 |
|
| 3 |
32-99904Q |
|
|
|
|
HOSE, TRIM CYLINDER TO CONNECTOR |
2 |
32-99904 |
|
| 4 |
815954A7 |
|
|
|
|
TRIM CYLINDER ASSEMBLY |
1 |
|
(STARBOARD) (SEE NOTE) |
| 5 |
815935A7 |
|
|
|
|
TRIM CYLINDER ASSEMBLY |
1 |
|
(PORT) (SEE NOTE) |
| - |
87399A3 |
|
|
|
|
OVERHAUL KIT |
2 |
|
|
| - |
25-87400A2 |
|
|
|
|
SEAL KIT |
2 |
|
|
| 6 |
806189Q1 |
|
|
|
|
ANODE ASSEMBLY |
2 |
806189A1 |
|
| 7 |
10-806290 |
|
|
|
|
SCREW, (#10-32 x .625) |
4 |
|
|
| 8 |
13-69432 |
|
|
700-21491 |
525-13-69432 |
LOCKWASHER, External (#10) |
4 |
|
|
| 9 |
32-864960 |
|
|
|
|
HOSE, Trim Cylinder |
1 |
32-999021 |
(STARBOARD) |
| 10 |
32-864959 |
|
|
|
|
HOSE, Trim Cylinder |
1 |
32-999031 |
(PORT) |
| 11 |
85060 |
|
|
|
|
PLATE |
2 |
|
|
| 12 |
10-85486 |
|
|
|
|
SCREW, (.250-20 x .380) Stainless Steel |
4 |
|
|
| 13 |
17-815953A01 |
|
|
|
|
PIN |
2 |
17-815953 |
|
| 14 |
23-8159501 |
|
|
|
|
BUSHING |
8 |
23-815950 |
|
| 15 |
12-815952 |
|
|
700-21672 |
|
WASHER |
4 |
|
|
| 16 |
53-815949 |
|
|
|
|
E RING |
4 |
|
|
| 17 |
19-815951 |
|
676-9-77201 |
700-26490 |
|
CAP |
4 |
|
|
| 18 |
22-808727 |
|
|
|
|
CONNECTOR, (.437 UNF To .250 Inverted Flare) |
2 |
|
|
| - |
15768A3 |
|
|
|
|
SPACER KIT (UP) LIMIT KIT |
1 |
|
|
