| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

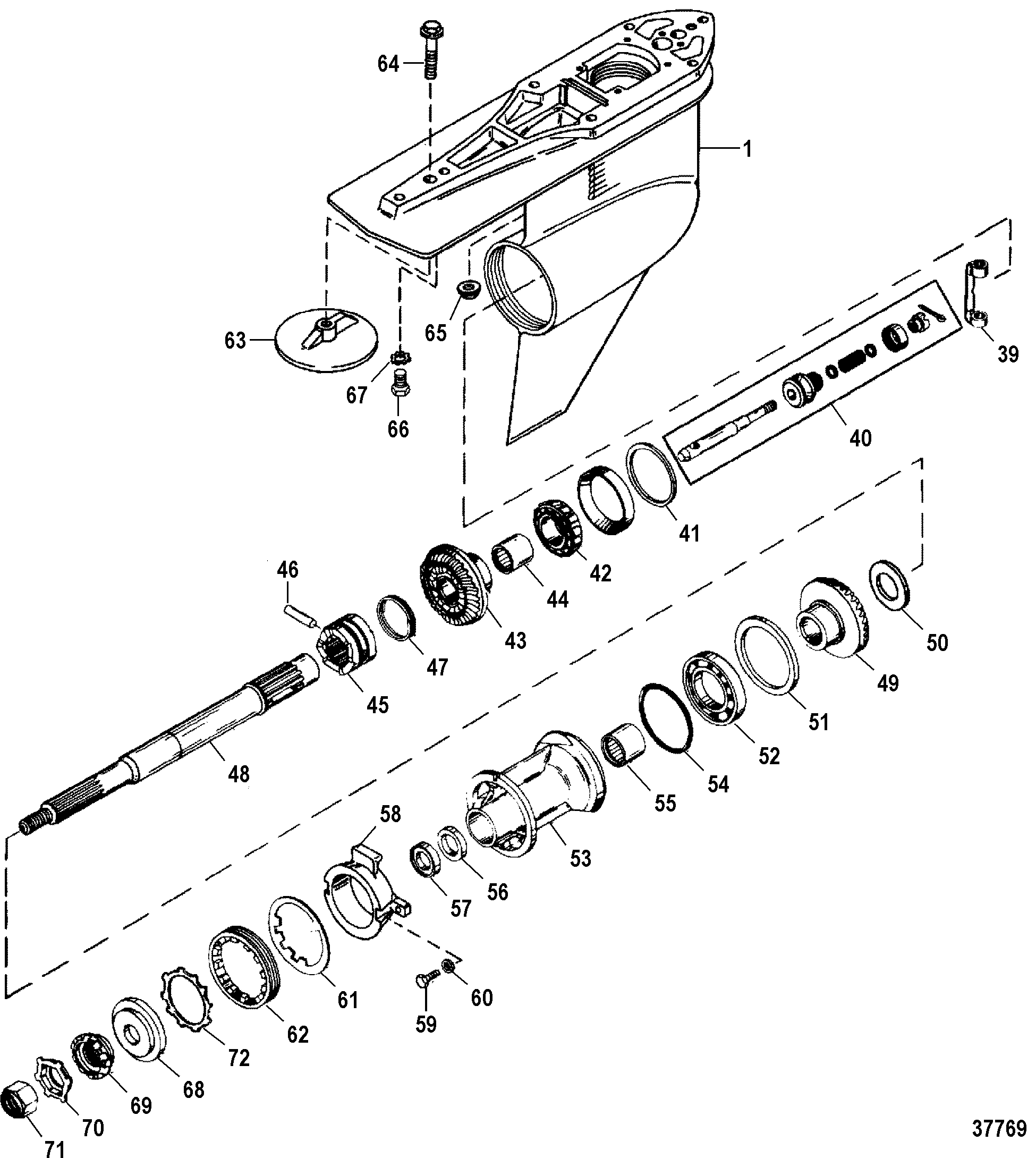

1623-815822A53 |
|
|
|
|
GEAR HOUSING ASSEMBLY |
1 |
1623-815822A32 |
(COMPLETE) |
| 1 |
1623-815822A36 |
|
|
|
|
GEAR HOUSING ASSEMBLY |
1 |
|
|
| 39 |
76865 |
|
676-9-78132 |
700-11040 |
|
CRANK, Shift |
1 |
|
|
| 40 |
818349T1 |
|
676-9-78133 |
700-11030 |
|
SPOOL KIT |
1 |
818349A1 |
|
| 41 |
15-44491A1 |
|
|
700-23221 |
|
SHIM SET |
AR |
|
3 |
| 42 |
31-30894A1 |
|
|
|
|
BEARING SET, Cup And Cone |
1 |
|
|
| 42 |
31-828439A2 |
|
676-9-75119 |
700-21593 |
|
BEARING ASSEMBLY, Tapered Roller |
OPT. |
|
(2.40:1 RATIO ONLY) 7 |
| 43 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, GEAR, FORWARD |
1 |
|
This Part is not sold separately(SEE "GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)" SECTION - REF. #15) 2 |
| 44 |
31-30895T |
|
676-9-75111 |
700-11420 |
|
BEARING, Needle |
1 |
31-30895 |
|
| 45 |
52-853594T |
|
676-9-73474 |
700-11060 |
|
SLIDING CLUTCH |
1 |
52-824112 |
|
| 46 |
17-30632 |
|
676-9-78111 |
700-21131 |
|
PIN, Cross |
1 |
|
No longer made, limited availability |
| 47 |
24-30893 |
|
676-9-78135 |
700-11050 |
|
SPRING |
1 |
|
|
| 48 |
44-824110 |
|
676-9-72450 |
|
|
PROPELLER SHAFT |
1 |
|
|
| 49 |
43-828073A1 |
|
|
700-11013 |
|
GEAR, REVERSE |
1 |
|
|
| 49 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, GEAR, REVERSE |
1 |
|
This Part is not sold separately (SEE "GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)" SECTION - REF. #15)(2.40:1 RATIO ONLY) 2 |
| 50 |
23-824108 |
|
|
700-11012 |
|
SPACER |
1 |
|
|
| 51 |
681001 |
|
676-9-78106 |
|
|
RING, Thrust |
1 |
|
|
| 52 |
30-88957T |
|
676-9-75114 |
700-21620 |
|
BEARING ASSEMBLY, Ball |
1 |
30-88957 |
|
| 53 |
818763A10 |
|
676-9-72602 |
|
|
CARRIER ASSEMBLY, Bearing |
1 |
|
|
| 54 |
25-31534 |
|
676-9-76544 |
|
525-25-31534 |
O-RING |
1 |
|
5 |
| 55 |
31-30956T |
|
676-9-75112 |
700-11410 |
|
BEARING, Needle |
1 |
31-30956 |
|
| 56 |
26-14077 |
|
676-9-76119 |
700-85130 |
|
SEAL, Oil |
1 |
|
(INSIDE) 5 |
| 57 |
26-12224 |
|
676-9-76101 |
700-85700 |
|
SEAL, Oil |
1 |
|
(OUTSIDE) 5 |
| 58 |
806105Q1 |
|
|
700-12702 |
|
ANODE ASSEMBLY |
1 |
806105A1 |
|
| 59 |
10-806290 |
|
|
700-12832 |
525-10-806290 |
SCREW, (#10-32 x .625) |
2 |
|
|
| 60 |
13-69432 |
|
|
700-21491 |
525-13-69432 |
LOCKWASHER, External (#10) |
2 |
|
|
| 61 |
14-18323 |
|
676-9-72640 |
|
525-14-18323 |
TAB WASHER |
1 |
|
|
| 62 |
8M2011027 |
|
|
700-21120 |
525-8M2011027 |
RETAINER |
1 |
79448 |
|
| 63 |
76214Q5 |
|
|
700-12710 |
525-76214Q5 |
ANODE KIT |
1 |
76214A5 |
|
| 63 |
31640Q4 |
|
|
700-12670 |
|
TRIM TAB |
1 |
316404 |
(2.40:1 AND 1.94:1 RATIO ONLY) |
| 64 |
10-806327 |
|
|
700-21741 |
525-10-806327 |
SCREW, (.437-14 x 1.750) |
1 |
|
|
| 65 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) |
4 |
11-817618 |
|
| 66 |
10-65210 |
|
|
|
525-10-65210 |
SCREW, (.375-16 x 1.00) |
1 |
|
|
| 67 |
13-35479 |
|
|
|
525-13-35479 |
LOCKWASHER, (.375) |
1 |
|
|
| 68 |
12-835467Q01 |
|
|
700-21301 |
|
THRUST HUB |
1 |
12-835467 |
|
| 69 |
12-31211Q03 |
|
|
700-21360 |
|
WASHER, Splined |
1 |
12-31211A2 |
|
| 70 |
14-816629Q |
|
|
700-21200 |
|
TAB WASHER |
1 |
14-816629 |
|
| 71 |
11-52707Q1 |
|
|
700-21230 |
|
PROP NUT |
1 |
11-827614 |
|
| 72 |
13-423511 |
|
|
|
|
LOCKWASHER, Toothed |
1 |
|
|
| - |
26-816575A3 |
|
676-9-74206 |
700-87511 |
|
SEAL KIT, Gear Housing |
- |
|
|
