| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

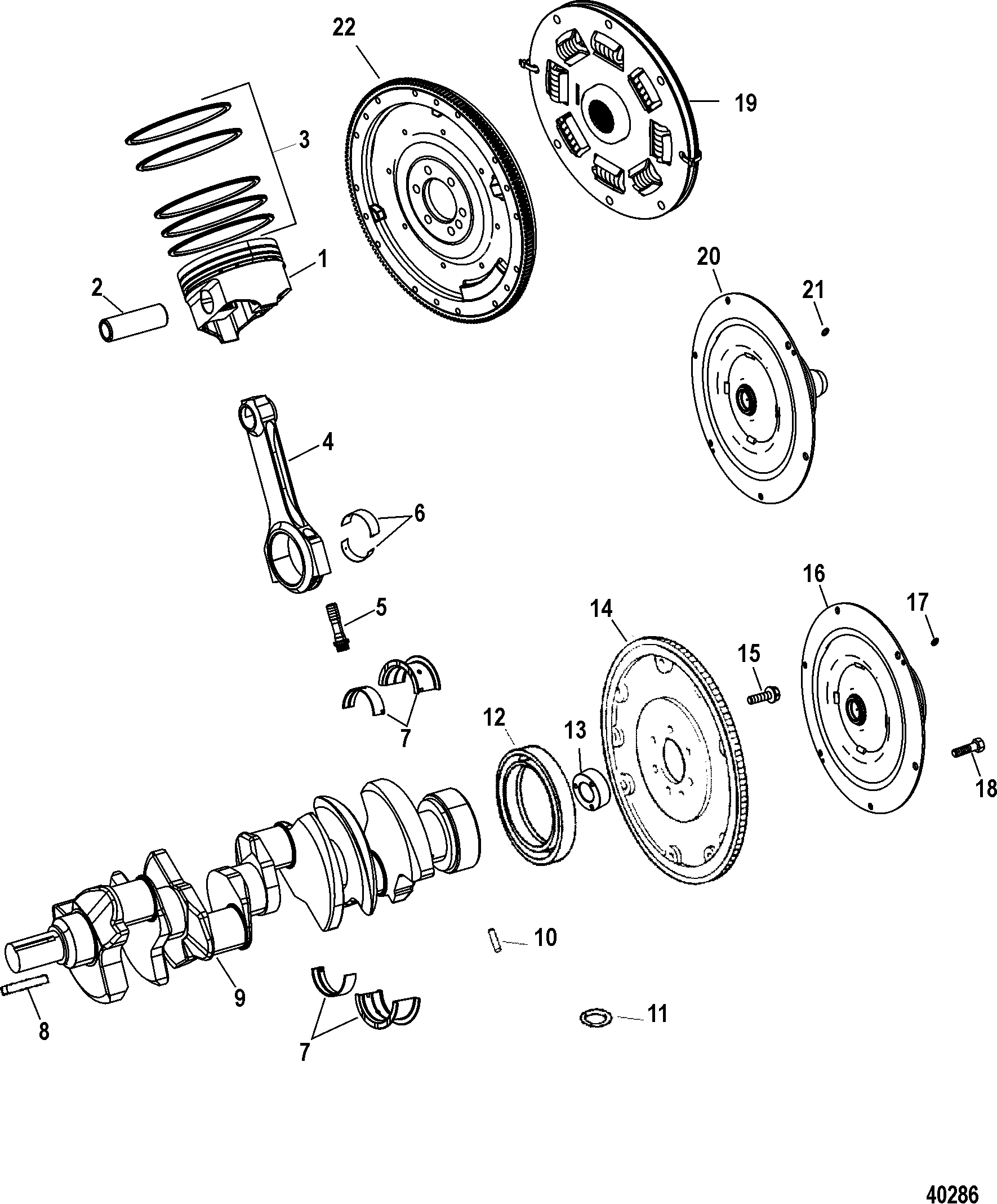

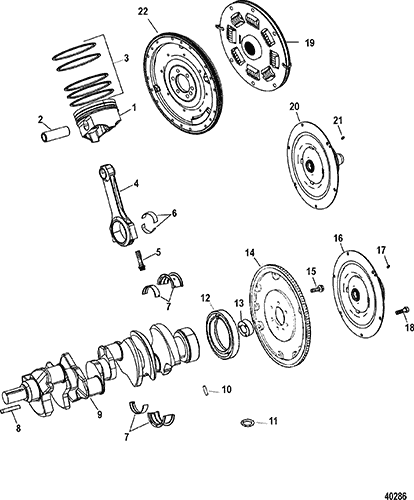

| 1 |
700-8M0005739 |
|
|
|
|
PISTON ASSEMBLY, Standard |
8 |
|
5 |
| 1 |
798-842266A02 |
|
|
|
|
PISTON KIT, .003 Oversize |
8 |
|
|
| 2 |
41-848819T |
|
|
|
|
PIN, Piston |
8 |
|
5 |
| 3 |
39-827660T |
|
|
|
|
RING SET, Piston - Standard |
8 |
|
5 |
| 4 |
614-8M8020323 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
|
5 |
| 5 |
10-8M0000838 |
|
|
|
|
SCREW, Special |
16 |
|
5 |
| 6 |
23-8M0030217 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
8 |
|
5 |
| 6 |
23-8M0030218 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
|
|
| 6 |
23-8M0030216 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
|
|
| 6 |
23-8M0030982 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
|
|
| 7 |
8M0051198 |
|
|
|
|
BEARING SET, Main - Standard |
1 |
23-842400 |
5 |
| 7 |
8M0053743 |
|
|
|
|
BEARING SET, Main - .001 Oversize |
AR |
23-842401 |
|
| 7 |
23-842402 |
|
|
|
|
BEARING SET, Main - .001 Undersize |
AR |
|
|
| 7 |
23-8M0053549 |
|
|
|
|
BEARING SET, Main - .010 Undersize |
AR |
23-842403 |
|
| 8 |
28-845607 |
|
|
|
|
KEY, Crankshaft |
1 |
|
5 |
| 9 |
400-842271T01 |
|
|
|
|
CRANKSHAFT ASSEMBLY |
1 |
|
5 |
| 10 |
17-43504 |
|
|
|
|
PIN, Dowel |
1 |
|
5 |
| 11 |
25-69756 |
|
|
|
|
O-RING, (.549 x .103), Number 5 Bearing Cap Oil Hole |
1 |
|
2,5 |
| 12 |
26-811554 |
|
|
|
|
SEAL, Oil |
1 |
|
2,5 |
| 13 |
23-823108 |
|
|
|
|
BUSHING, Crankshaft Pilot |
1 |
|
Driveline Models-Bravo 5 |
| 13 |
23-8M0000965 |
|
|
|
|
BUSHING, Crankshaft Pilot |
1 |
|
NXT1 |
| 14 |
230-843374T1 |
|
|
|
|
FLYWHEEL |
1 |
|
Bravo 5 |
| 15 |
10-845757 |
|
|
|
|
SCREW, (.437-20 x 1.00) |
6 |
|
5 |
| 16 |
861523A9 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Short Aluminium Hub |
1 |
|
Driveline Models-Bravo |
| 16 |
861523A18 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Short Steel Hub |
OPT |
|
Driveline Models-Bravo |
| 17 |
22-49099 |
|
|
|
|
FITTING |
2 |
|
Driveline Models-Bravo |
| 18 |
10-863480 |
|
|
|
|
SCREW, (.375-16 x 1.125) |
6 |
|
Bravo |
| 18 |
10-8M0005491 |
|
|
|
|
SCREW, (.375-24 x 1.060) Black Oxide |
8 |
|
NXT1 |
| 19 |
899736T |
|
|
|
|
COUPLING ASSEMBLY, Engine |
1 |
|
NXT1 |
| 20 |
861523A20 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Long Steel Hub |
1 |
|
Bravo Models |
| 21 |
22-74036 |
|
|
|
|
FITTING, Grease |
1 |
|
|
| 22 |
230-899735T |
|
|
|
|
FLYWHEEL |
1 |
|
NXT1 |
| - |
27-843073A06 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
|
| - |
841178A05 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
|
