525 EFI - Serial 0M962886 and Up - Electrical Components (Ignition)

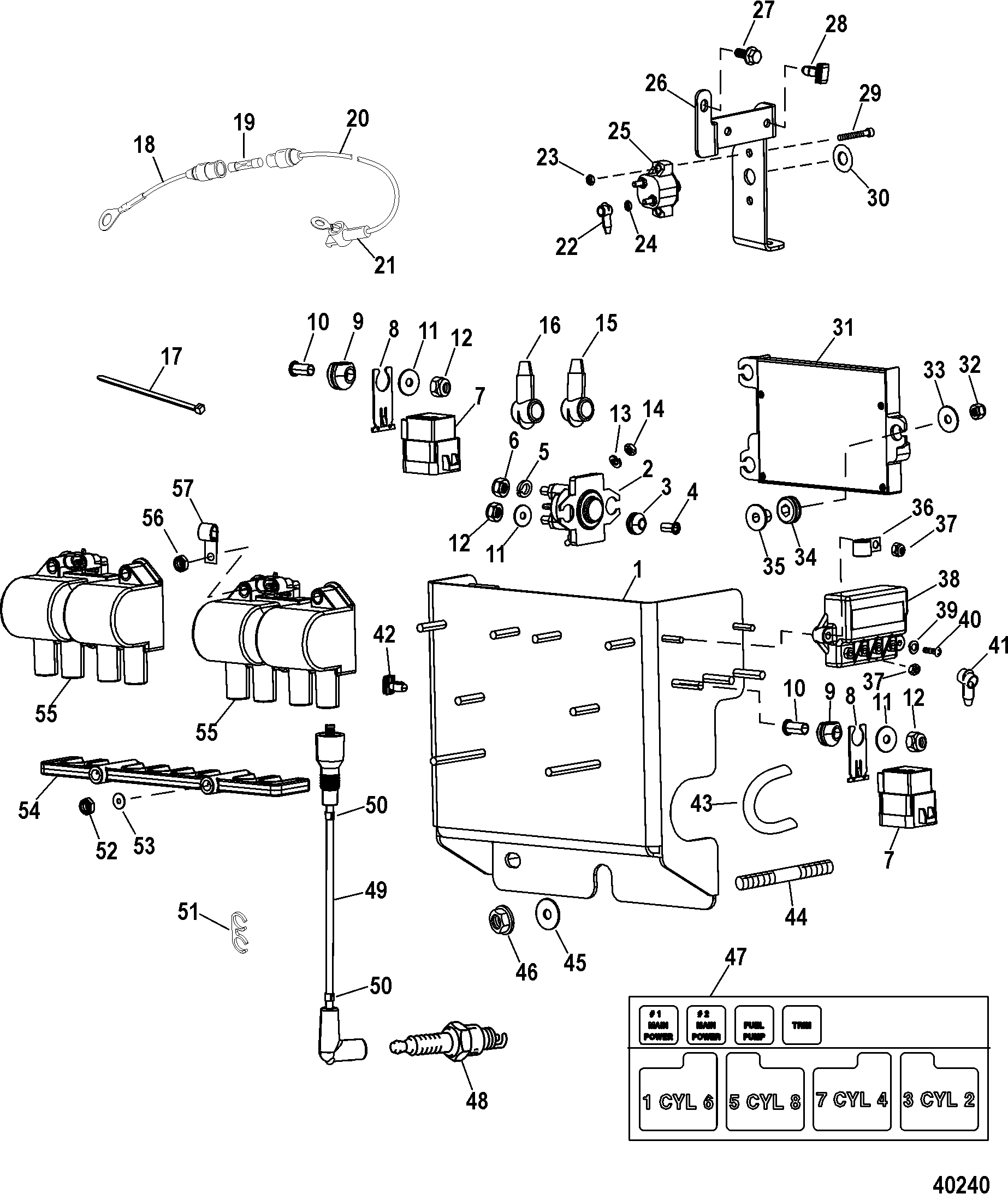

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 842054



BRACKET, Electrical Mounting 1

2 89-850187T1



SOLENOID ASSEMBLY 1

3 25-818967



GROMMET 1

4 23-818968



BUSHING 1

5 13-26992



LOCKWASHER, (.250) Stainless Steel 2

6 11-94330



NUT, (.250-20) Brass 2

7 882751A1

700-73040
RELAY ASSEMBLY 4

8 828102



BRACKET, Relay Mounting 4

9 25-818967



GROMMET 4
2
10 23-818968



BUSHING 4

11 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 2

12 11-8267098



NUT, (.250-20) Stainless Steel 2

13 13-26995



LOCKWASHER, (#8) Stainless Steel 2

14 11-26419



NUT, (#8-32) Brass 2

15 85-880786



BOOT, Insulator - Red 1

16 85-880787



BOOT, Insulator - Yellow 1

17 54-816311T

700-21465
TIE STRAP, (8.00 Inches) AR

18 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1

19 88-79091



FUSE, 20 Ampere 1

20 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1

21 85-86606



BOOT, Insulator - Black 1

22 85-89919



BOOT, Insulator - Black 2

23 11-61356



NUT, (#10-32) Reduced Hex 2

24 11-826709106



NUT, (#10-32) Stainless Steel 2

25 88-11178A01



BREAKER, Circuit - 50 Ampere 1
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
26 842103



BRACKET, Circuit Breaker Mounting 1

27 10-817505



SCREW, (.250-20 x .620) Stainless Steel 1

28 54-879962



CLIP, Fuse Cover Holder 2

29 10-18124



SCREW, (#10-32 x .750) 2

30 37-72554



DECAL, Circuit Breaker 1

31 8M0046836



PCM, Propulsion Control Module 1

31 8M0046836



PCM, Propulsion Control Module 1 840947T14 NLA-order 8M0046836
32 11-8267098



NUT, (.250-20) Stainless Steel 3

33 12-65567



WASHER, (.265 x .750 x .048) Stainless Steel 3

34 25-834985



GROMMET 3

35 23-856954



BUSHING 3

36 54-858951



J CLIP 1

37 11-826709108



NUT, (.250-20) Stainless Steel 6

38 42600A09



MERCATHODE ASSEMBLY 1

39 13-26996



LOCKWASHER, (#10) Stainless Steel 1

40 10-62568



SCREW, (#10-16 x .375) 1

41 85-65208



BOOT, Insulator - Black 3

42 54-879962



CLIP 2

43 817712003



SEAL, (6.79 Feet) 1

44 16-579203



STUD, (.437-14/.437-20 x 2.060) 1

44 16-57984



STUD, (.437-14/.437-20 x 2.380) 1

45 12-45176



WASHER, (.453 x .812 x .105) Stainless Steel 2

46 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 2

47 37-8M0000179



LABEL SET, Electrical Components 1

48 33-810883



SPARK PLUG 8
5
49 899329A09



CABLE SET, High Tension-Set of Eight 1

50 843137A01



MARKER SET, Ignition Cables, Two Per - Numbers 1 Thru 8 1

51 54676



RETAINER, Two Wire 2

52 11-8267098



NUT, (.250-20) Stainless Steel 2

53 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 2

54 8M0053613



RETAINER, Ignition Cable Support 1 844367
55 841203T



COIL, Ignition 2

56 11-826709106



NUT, (#10-32) Stainless Steel 6
57 54-858951



J CLIP 1
- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1
- 841178A05



PARTIAL ENGINE ASSEMBLY 1
