525 EFI - Serial 0M962886 and Up - Electrical Components (Starter And Alternator)

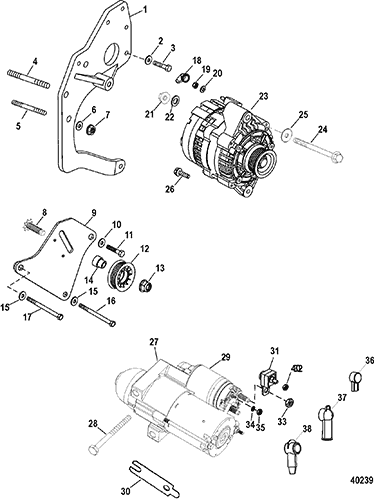

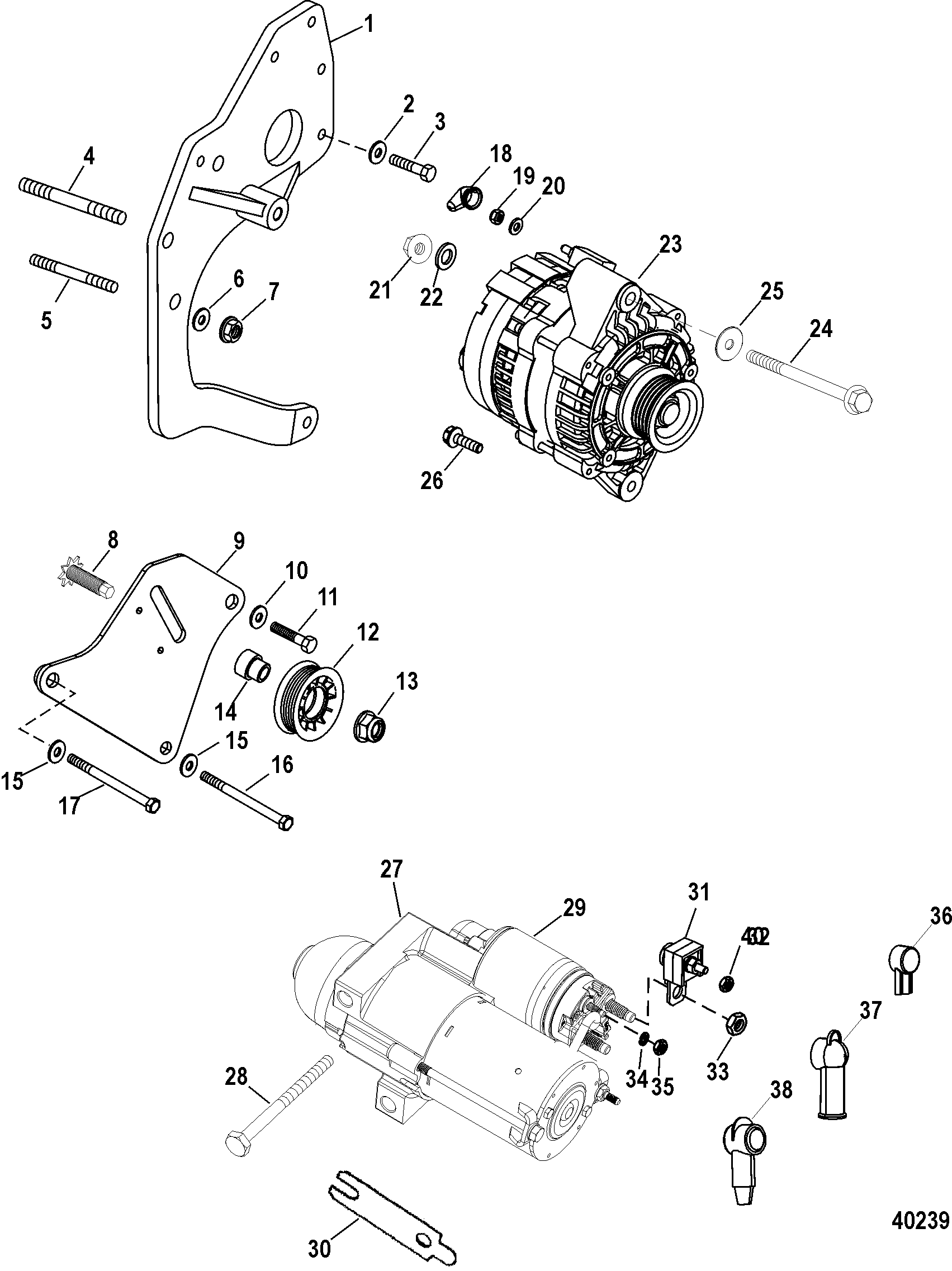

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M8023684



BRACKET 1

2 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 1

3 10-825427



SCREW, (.437-14 x 1.250) Stainless Steel 1

4 16-579203



STUD, (.437-14/.437-20 x 2.060) 1

5 16-579203



STUD, (.437-14/.437-20 x 2.060) 1

6 12-45176



WASHER, (.453 x .812 x .105) Stainless Steel 2

7 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 2

8 43-8183812



PINION STUD, (.437-20) Stainless Steel 1

9 8M0065011



BRACKET, Tensioner 1 8424431
10 12-45176



WASHER, (.453 x .812 x .105) Stainless Steel 1

11 10-99204



SCREW, (.437-14 x 1.00) Stainless Steel 1

12 807757T



PULLEY ASSEMBLY, Idler - Black 1

13 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 1

14 845117



BUSHING 1

15 12-45176



WASHER, (.453 x .812 x .105) Stainless Steel 1

15 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 1

16 10-87302



SCREW, (.375-16 x 5.00) Stainless Steel 1

17 10-841118



SCREW, (.437-14 x 5.50) Stainless Steel 1

18 85-66659



BOOT, Insulator - Black 2

19 11-401386



NUT, (M6) Stainless Steel 1

20 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 1

21 11-401388



NUT, (M8) Stainless Steel 1

22 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 1

23 863077T01



ALTERNATOR ASSEMBLY 1

24 10-4010870



SCREW, (M10 x 70) Hex Flange - Stainless Steel 1

25 12-841388



WASHER, (.410 x .810 x .050) Stainless Steel 1

26 10-82155025



SCREW, (M8 x 25) Stainless Steel 1

27 50-8M8021116



STARTER MOTOR ASSEMBLY, Service Complete 1

28 10-8053432



SCREW, (.375-16 x 4.33) 2

29 809463A1
676-9-15125 700-72450
SOLENOID KIT 1

30 15-8172721



SHIM, Special 1

31 79023T10



FUSE ASSEMBLY, 110 Ampere 1 88-79023A10
32 11-826709109



NUT, (.250-28) Stainless Steel 1

33 11-401388



NUT, (M8) Stainless Steel 1

34 13-26996



LOCKWASHER, (#10) Stainless Steel 1

35 11-400211



NUT, (M5) Stainless Steel 1

36 85-79695T



BOOT, Insulator - Black 1 85-79695
37 85-830233



BOOT, Insulator - Red 1

38 85-880787



BOOT, Insulator - Yellow 1
