525 EFI - Serial 0M962886 and Up - Flywheel Housing (Driveline)(NXT1)

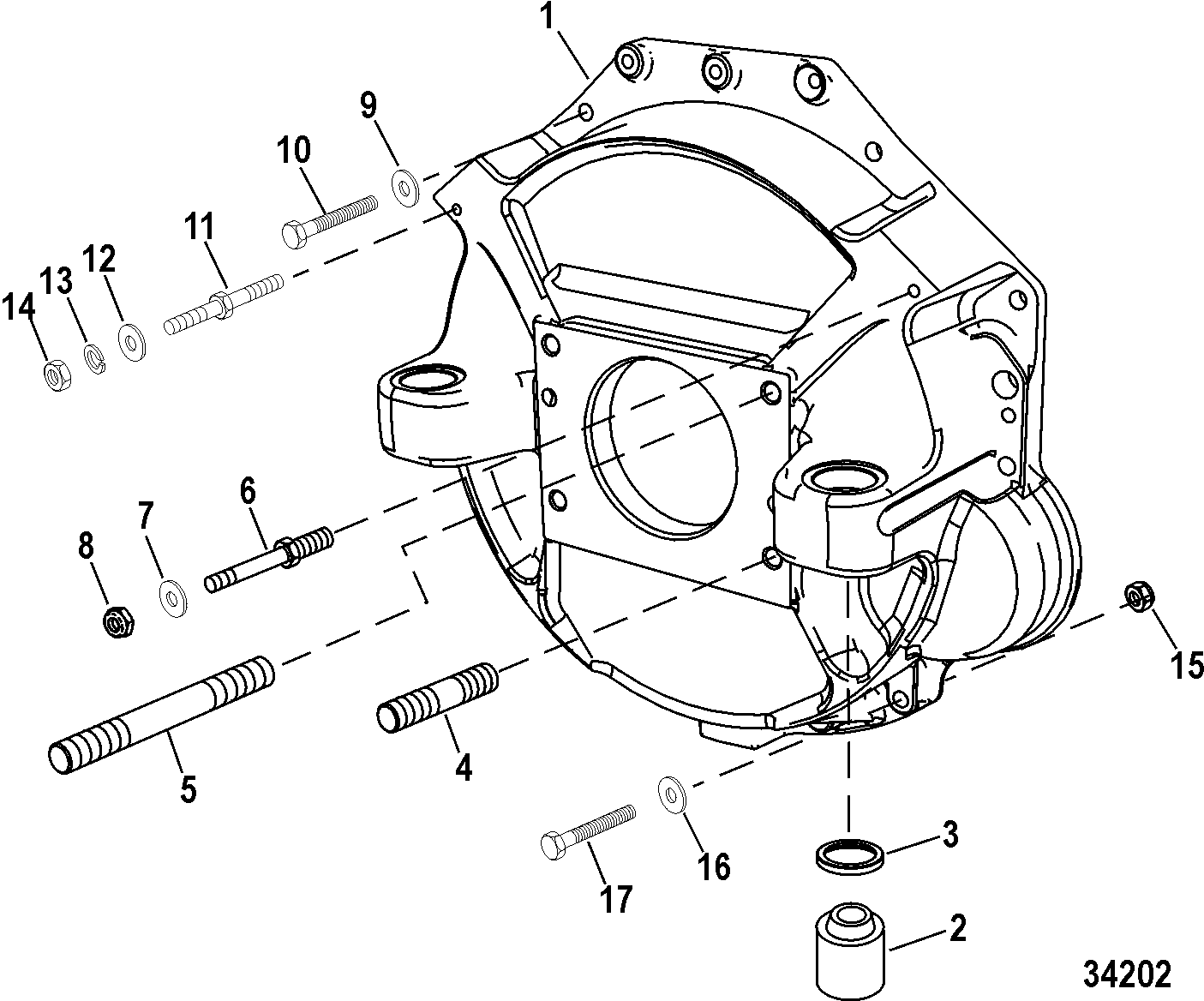

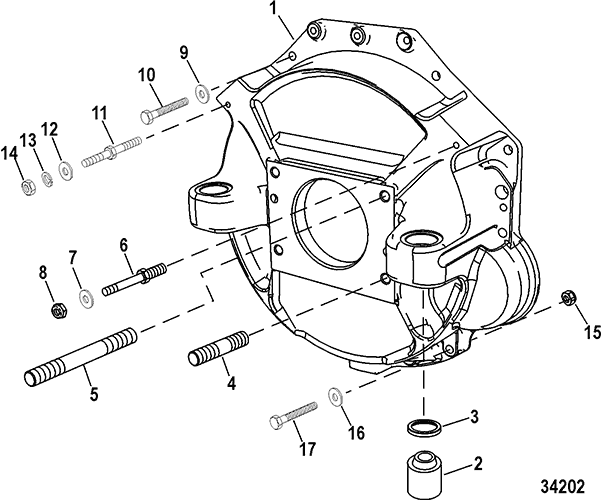

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Flywheel Housing (Driveline)(NXT1)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)(NXT1)
- Oil Cooler And Oil Filter(Engine)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components(Bravo)
- Shift Plate Components(NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841956A01 | HOUSING ASSEMBLY, Flywheel | 1 | ||||||
| 2 | 865330A02 | MOUNT KIT, Rubber | 1 | ||||||
| 3 | 23-99322 | 700-21050 | SPACER | 2 | |||||
| 4 | 16-8M0007427 | STUD, (.500-13/.500-20 x 2.440) | 2 | ||||||
| 5 | 16-8M0005406 | STUD, (.500-20 x 4.50) | 2 | ||||||
| 6 | 16-844354 | STUD, (.250-28/.312-18 x 1.750) | 1 | ||||||
| 7 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 1 | ||||||
| 8 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 1 | |||||
| 9 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 4 | ||||||
| 10 | 8M0001700 | SCREW, (.375-16 x 1.750) Stainless Steel | 4 | ||||||
| 11 | 16-846248 | STUD, (.375-16 x 3.120), Ground | 2 | ||||||
| 12 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 13 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | |||||
| 14 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 15 | 11-82670912 | NUT, (.375-16) Stainless Steel | 2 | ||||||
| 16 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 17 | 10-846294 | SCREW, (.375-16 x 1.500) Stainless Steel | 2 |
