525 EFI - Serial 0M962886 and Up - Exhaust Header - Tailpipe Assembly

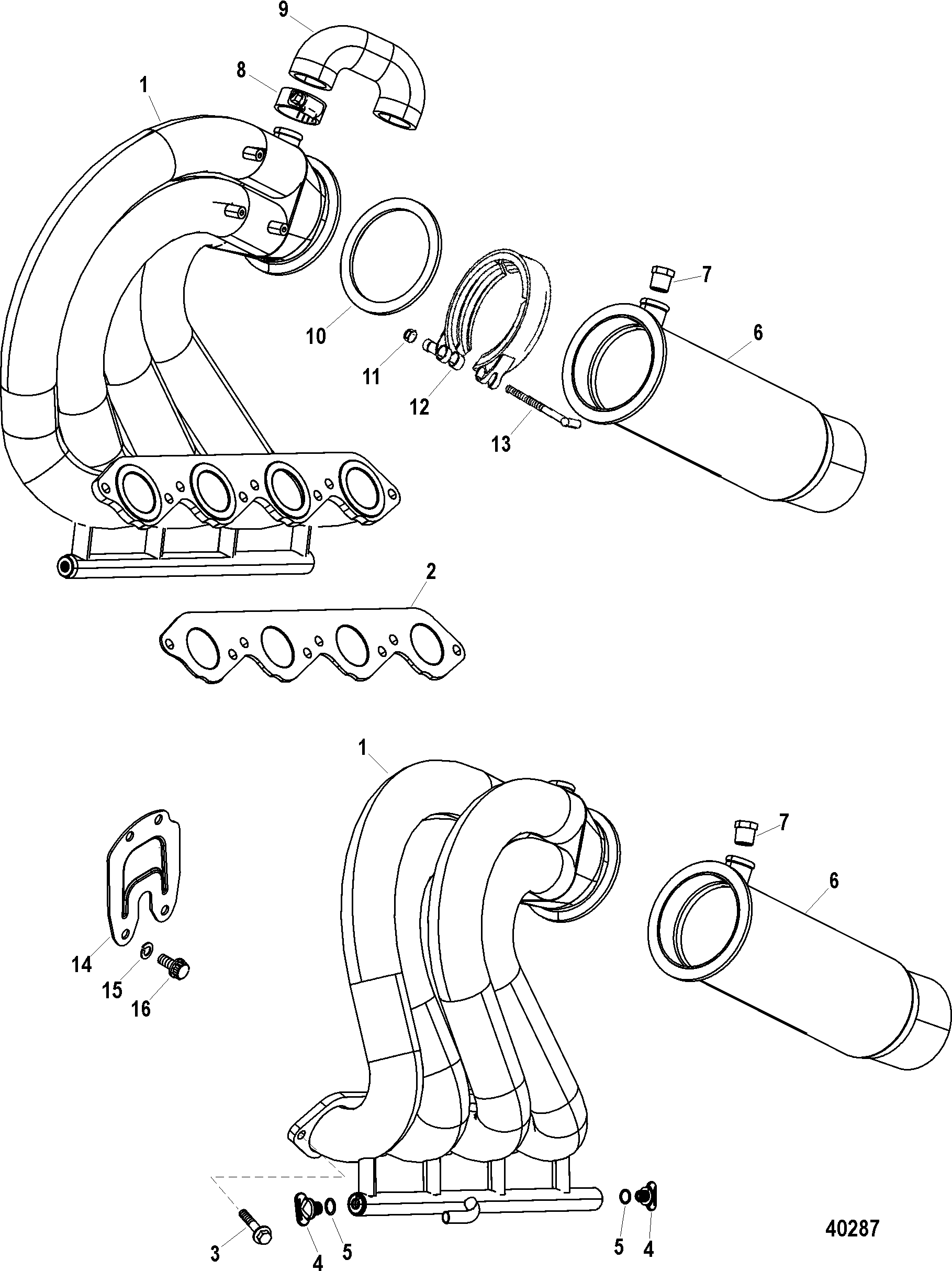

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 843933T03         HEADER KIT, Exhaust - Starboard, Also Includes Tailpipe Gasket 27-842454 1   This Part is No Longer Available
1 843934T03         HEADER KIT, Exhaust - Port, Also Includes Tailpipe Gasket 27-842454 1   This Part is No Longer Available
2 27-840940         GASKET, Exhaust Header 2
2,5
3 10-821131         SCREW, (.375-16 x 1.00) 16

4 22-806608A02         PLUG ASSEMBLY, (.500-13) Blue 4

5 25-26802         SEAL 4 25-8M2000926
6 843384A1         TAILPIPE ASSEMBLY, Port 2   This Part is No Longer Available Please email and ask us for the service bulletin regarding this part
7 22-842453406         FITTING, Restrictor (.406) 2

8 54-180763         CLAMP, Worm Gear 4

9 32-8424181         HOSE, Molded 2

10 27-842454         GASKET, Tailpipe 2
2
11 11-82671110         NUT, (.250-20) 2 11-842458
12 54-842456         CLAMP, Band 2

13 10-842457         T BOLT, (.250-20) 2

14 861776A2         PLATE KIT, Exhaust Blockoff 1
15 13-41471         LOCKWASHER, (.375) 4
16 10-98794   676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4
- 27-843073A06         GASKET/SEAL SET, Engine Overhaul 1
- 841178A05         PARTIAL ENGINE ASSEMBLY 1
