| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

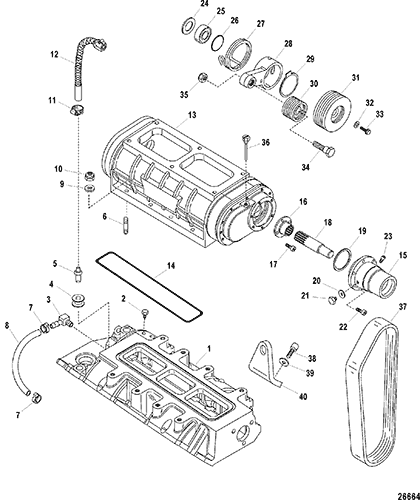

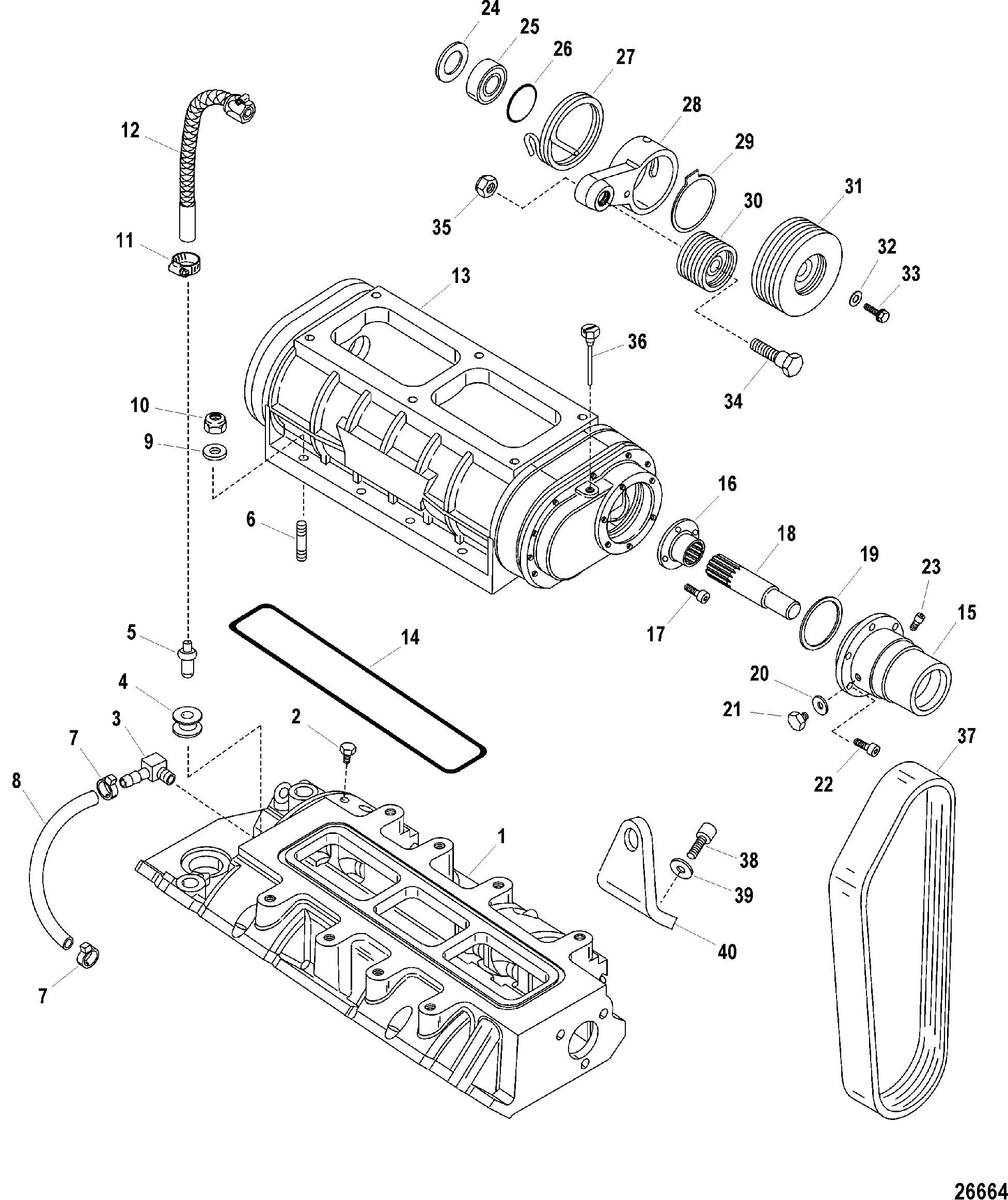

| 1 |
849901A1 |
|
|
|
|
MANIFOLD ASSEMBLY, Intake |
1 |
|
This Part is No Longer Available |
| 2 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
1 |
|
|
| 3 |
22-196881 |
|
|
|
|
FITTING, (90 Degree) |
1 |
|
|
| 4 |
25-811553 |
|
|
|
|
GROMMET |
1 |
|
|
| 5 |
848578 |
|
|
|
|
VALVE ASSEMBLY, Crankcase Vent |
1 |
|
|
| 6 |
16-849928 |
|
|
|
|
STUD, (.312-18/.312-24 x 2.00) |
8 |
|
|
| 7 |
56762 |
|
|
|
|
TIE STRAP, (4.00 Inches) |
2 |
|
|
| 8 |
32-8M0062600 |
|
|
|
|
HOSE, (54.00 Inches Bulk), Cut 10.50 Inches - Map Sensor |
1 |
32-1940971 |
|
| 9 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
8 |
|
|
| 10 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
8 |
11-35814 |
|
| 11 |
54-815504104 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 12 |
32-823229A3 |
|
|
|
|
HOSE ASSEMBLY (13.50 Inches) |
1 |
|
|
| 13 |
849893A22 |
|
|
|
|
SUPERCHARGER ASSEMBLY |
1 |
849893A8 |
This Part is No Longer Available |
| 14 |
25-844473 |
|
|
|
|
O-RING, (10.975 x .210) |
1 |
|
2 |
| 15 |
841272A1 |
|
|
|
|
NOSE ASSEMBLY |
1 |
|
|
| 16 |
841278 |
|
|
|
|
COUPLER |
1 |
|
This Part is No Longer Available |
| 17 |
10-92702 |
|
|
|
|
SCREW, (.250-28 x .875) |
4 |
|
|
| 18 |
841273 |
|
|
|
|
SHAFT |
1 |
|
This Part is No Longer Available |
| 19 |
25-92400 |
|
|
|
|
O-RING |
1 |
|
|
| 20 |
12-68300 |
|
|
|
|
WASHER, (..88 x .39 x .06) |
1 |
|
No longer made, limited availability |
| 21 |
10-841265 |
|
|
|
|
SCREW, (.250-28 x .875) |
1 |
|
This Part is No Longer Available |
| 22 |
10-823138 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
6 |
|
|
| 23 |
10-841446 |
|
|
|
|
SCREW, (.250-20 x .500) |
1 |
|
This Part is No Longer Available |
| 24 |
26-841266 |
|
|
|
|
SEAL |
1 |
|
This Part is No Longer Available |
| 25 |
30-841269 |
|
|
|
|
BEARING |
1 |
|
This Part is No Longer Available |
| 26 |
53-841275 |
|
|
|
|
RING, Snap |
1 |
|
|
| 27 |
24-841270 |
|
|
|
|
SPRING |
1 |
|
|
| 28 |
841271 |
|
|
|
|
IDLER ARM |
1 |
|
|
| 29 |
53-841268 |
|
|
|
|
RING, Snap |
1 |
|
|
| 30 |
848091T |
|
|
|
|
PULLEY, Idler |
1 |
|
This Part is No Longer Available |
| 31 |
845311 |
|
|
|
|
PULLEY, Snout |
1 |
|
This Part is No Longer Available |
| 32 |
12-841277 |
|
|
|
|
WASHER |
1 |
|
|
| 33 |
10-841276 |
|
|
|
|
SCREW, (.375-24 x .750) |
1 |
|
|
| 34 |
10-841267 |
|
|
|
|
SCREW, (.500-13 x 2.500) |
1 |
|
|
| 35 |
11-844766 |
|
|
|
|
NUT, (.500-13) |
1 |
|
|
| 36 |
841279A1 |
|
|
|
|
DIPSTICK ASSEMBLY |
1 |
|
|
| 37 |
57-817113 |
|
|
|
|
BELT, Serpentine |
1 |
|
|
| 38 |
10-822168 |
|
|
|
|
SCREW, (.375-16 x 1.750) Stainless Steel |
2 |
|
|
| 38 |
10-817124 |
|
|
|
|
SCREW, (.375-16 x 1.500) |
10 |
|
|
| 38 |
10-843751 |
|
|
|
|
SCREW, (.375-16 x 1.500) With Holes |
2 |
|
|
| 38 |
10-842787 |
|
|
|
|
SCREW, (.375-16 x 2.00) |
2 |
10-47432 |
|
| 39 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
16 |
|
|
| 40 |
54-8499981 |
|
|
|
|
LIFTING EYE, Black |
2 |
|
|
| - |
27-842182A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
