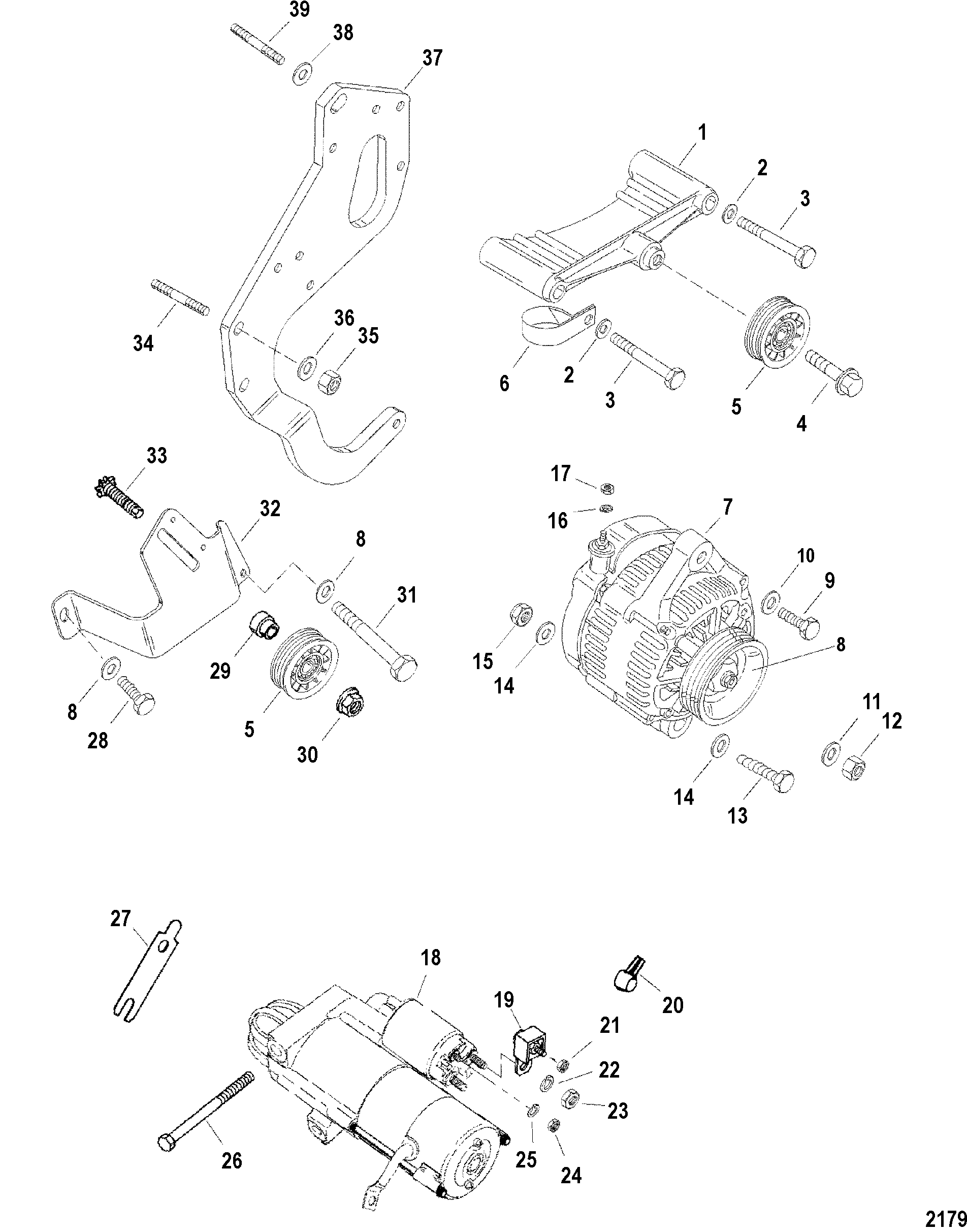

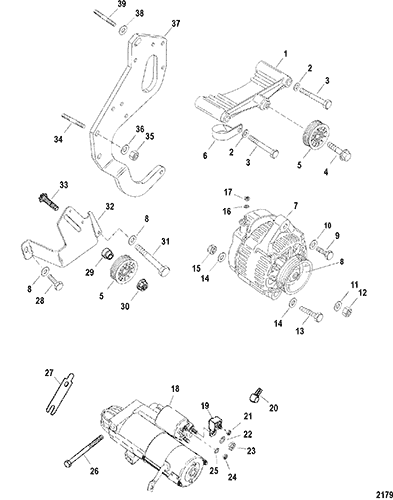

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
849297T1 |
|
|
|
|
BRACKET, Idler Pulley, Idler Pulley |
1 |
|
Non Power Steering Models |
| 2 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
| 3 |
10-840244 |
|
|
|
|
SCREW, (.375-16 x 3.375) Stainless Steel |
2 |
|
|
| 4 |
10-82130130 |
|
|
|
|
SCREW, (M10 x 30) |
1 |
|
|
| 5 |
864625T |
|
|
|
|
PULLEY ASSEMBLY, Idler - Black |
1 |
849296T |
Power Steering Models |
| 5 |
864625T |
|
|
|
|
PULLEY ASSEMBLY, Idler - Black |
2 |
849296T |
Non Power Steering Models |
| 6 |
54-62494 |
|
|
|
|
CLIP, Cooler Hose To Circulating Pump |
1 |
|
|
| 7 |
857006A3 |
|
676-9-19203 |
|
|
ALTERNATOR KIT, Blue |
1 |
|
SN# 0L601000 THRU 0L602090 No longer made, limited availability |
| 7 |
8M8023423 |
|
|
|
|
ALTERNATOR ASSEMBLY, Blue |
1 |
875285T2 |
SN# 0L306696 THRU 0M053292 |
| 8 |
849043T |
|
|
|
|
PULLEY, Blue - Alternator |
1 |
|
SN# 0L601000 THRU 0L602090 |
| 8 |
842421T |
|
|
|
|
PULLEY, Blue, Alternator |
1 |
|
SN# 0L306696 THRU 0M053292 |
| 9 |
10-95802 |
|
|
|
|
SCREW, (.375-16 x 2.750) Stainless Steel |
1 |
|
SN# 0L601000 THRU 0L602090 |
| 9 |
10-849397 |
|
|
|
|
SCREW, (.375-16 x 3.250) Stainless Steel |
1 |
|
SN# 0L306696 THRU 0M053292 |
| 10 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
3 |
|
|
| 11 |
12-824451 |
|
|
|
|
WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062), Thrust |
1 |
|
SN# 0L601000 THRU 0L602090 |
| 11 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel, Thrust |
1 |
|
SN# 0L306696 THRU 0M053292 |
| 12 |
11-401386 |
|
|
|
|
NUT, (M6) |
1 |
11-8268336 |
|
| 13 |
10-69267 |
|
|
|
|
SCREW, (.312-18 x 1.750) |
1 |
|
|
| 14 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
|
| 15 |
11-82670910 |
|
|
|
|
NUT, (.312-18) |
1 |
11-67980 |
|
| 16 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
1 |
|
|
| 17 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 18 |
50-8M8021116 |
|
|
|
602-10105 |
STARTER MOTOR ASSEMBLY |
1 |
|
NOTE: See Starter Assembly Section For Parts Breakdown |
| 19 |
88-79023A91 |
|
676-9-15510 |
|
|
FUSE ASSEMBLY, 90 Ampere |
1 |
|
|
| 20 |
85-79695T |
|
|
|
|
BOOT, Insulator - Black |
1 |
85-79695 |
|
| 21 |
11-826709109 |
|
|
|
525-11-826709109 |
NUT, (.250-28) Stainless Steel |
1 |
|
|
| 22 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312-24) |
1 |
|
|
| 23 |
11-401388 |
|
|
|
|
NUT, (M8) |
1 |
11-400635 |
|
| 24 |
11-400211 |
|
|
|
|
NUT, (M5) Stainless Steel |
1 |
|
|
| 25 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 26 |
10-8053432 |
|
|
|
|
SCREW, (.375-16 x 4.33) |
2 |
|
|
| 27 |
15-8172721 |
|
|
|
|
SHIM, Special |
1 |
|
|
| 28 |
10-94247 |
|
|
|
525-10-94247 |
SCREW, (.375-16 x .750) Stainless Steel |
1 |
|
|
| 29 |
845117 |
|
|
|
|
BUSHING |
1 |
|
|
| 30 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) |
1 |
11-817618 |
|
| 31 |
10-843575 |
|
|
|
|
SCREW, (.375-16 x 4.00) Stainless Steel |
1 |
|
|
| 32 |
845124T1 |
|
|
|
|
BRACKET, Tensioner |
1 |
|
|
| 33 |
43-8183812 |
|
|
|
|
PINION STUD, (.437-20) Stainless Steel |
1 |
|
|
| 34 |
16-579203 |
|
|
|
525-16-579203 |
STUD, (.437-14/.437-20 x 2.060) |
2 |
|
|
| 35 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) |
4 |
11-817618 |
|
| 36 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
4 |
|
|
| 37 |
849905T |
|
|
|
|
BRACKET |
1 |
|
(Alternator/Power Steering Mount) |
| 38 |
12-861854 |
|
|
|
525-12-861854 |
WASHER, (.453 x .750 x .032) Stainless Steel, Used As Shim |
1 |
|
|
| 39 |
16-842441 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.250) |
1 |
|
Power Steering Models |
| 39 |
16-579203 |
|
|
|
525-16-579203 |
STUD, (.437-14/.437-20 x 2.060) |
1 |
|
Non Power Steering Models |
