| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

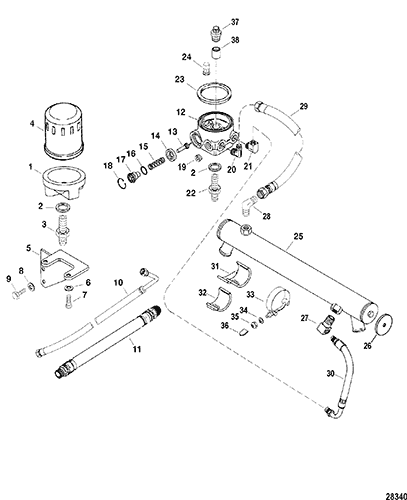

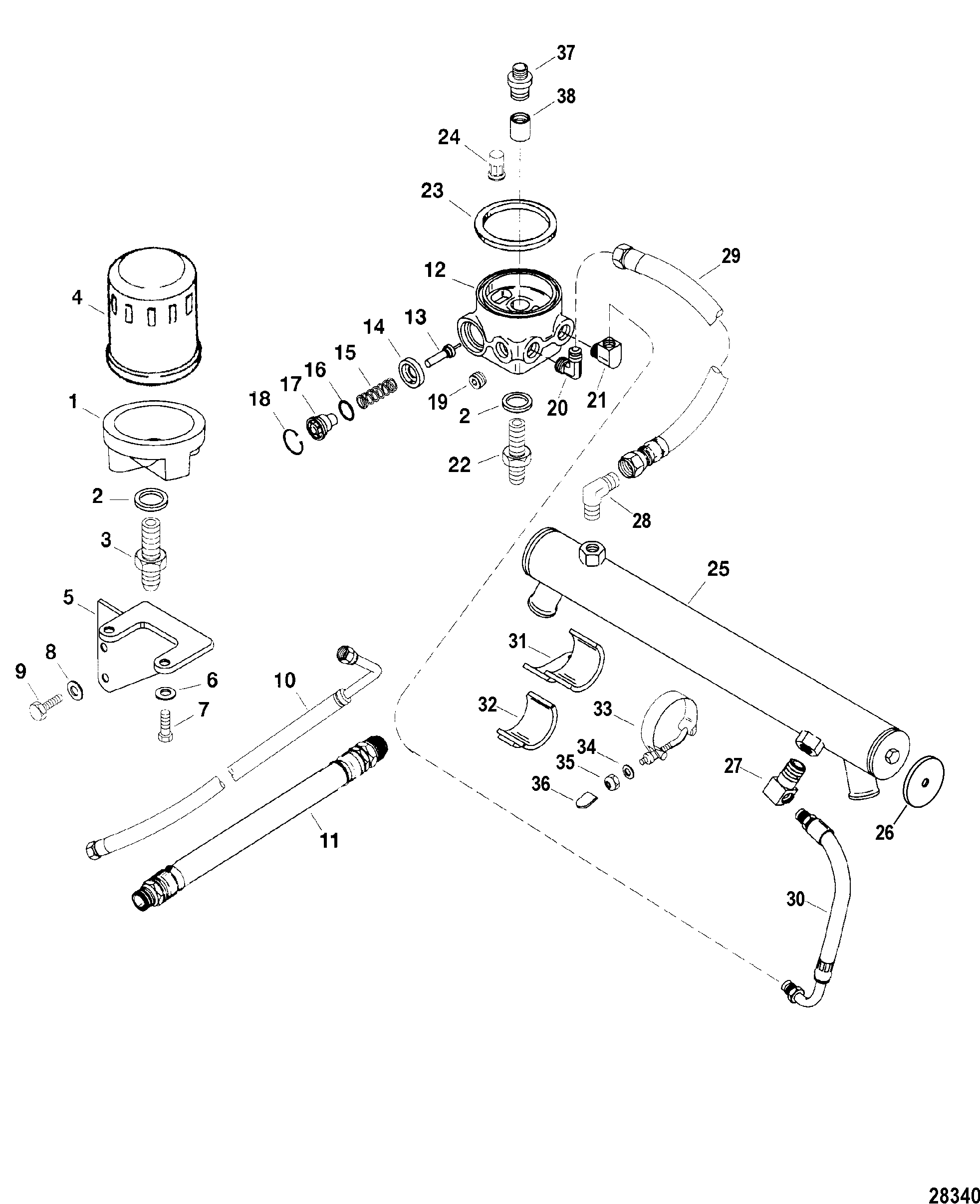

| 1 |
35-806329T |
|
|
|
|
ADAPTOR, Oil Filter |
1 |
|
|
| 2 |
26-42077 |
|
|
|
|
SEAL |
2 |
|
2 |
| 3 |
22-806328 |
|
|
|
|
FITTING |
1 |
|
|
| 4 |
35-16595Q |
|
676-9-57811 |
|
|
FILTER, Oil |
1 |
35-16595T |
|
| 5 |
849907T |
|
|
|
|
BRACKET, Filter Adaptor |
1 |
|
|
| 6 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
|
| 7 |
10-845856 |
|
|
|
|
SCREW, (.312-18 x .750) |
2 |
|
|
| 8 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
| 9 |
10-94247 |
|
|
|
525-10-94247 |
SCREW, (.375-16 x .750) Stainless Steel |
2 |
|
|
| 10 |
32-849876T |
|
|
|
|
HOSE ASSEMBLY, Oil (34.620 Inches), Filter To Adaptor |
1 |
|
|
| 11 |
32-849883 |
|
|
|
|
HOSE ASSEMBLY, Oil (31.750 Inches), Adaptor To Filter |
1 |
32-849883T |
|
| 12 |
849885A04 |
|
|
|
|
HOUSING ASSEMBLY, Oil Thermostat |
1 |
|
|
| 12 |
849885T2 |
|
|
|
|
HOUSING, Oil Thermostat |
1 |
|
|
| 13 |
8161631 |
|
|
|
|
THERMOSTAT |
1 |
|
|
| 14 |
849983 |
|
|
|
|
PISTON, Oil Thermostat |
1 |
|
|
| 15 |
24-816162 |
|
|
|
|
SPRING |
1 |
|
|
| 16 |
25-864701 |
|
|
|
|
O-RING, (1.112 x .103) |
1 |
25-47632 |
2 |
| 17 |
8161651 |
|
|
|
|
COVER, Oil Thermostat |
1 |
|
|
| 18 |
53-848571 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 19 |
22-32561 |
|
|
|
|
PLUG, Pipe - Allen Head (.250-18) |
1 |
|
|
| 20 |
22-706811 |
|
|
|
|
ELBOW, 90 Degree |
1 |
|
|
| 21 |
22-47630 |
|
|
|
|
ELBOW, 90 Degree |
1 |
|
|
| 22 |
22-806328 |
|
|
|
|
FITTING |
1 |
|
|
| 23 |
25-32507 |
|
|
|
|
O-RING, (3.359 x .139) |
1 |
|
2 |
| 24 |
|
|
|
|
VALVE, Relief |
1 |
|
5 |
| 25 |
849952A03 |
|
|
|
|
COOLER, Oil |
1 |
849952T |
|
| 26 |
8M0036570 |
|
|
|
|
GASKET, Oil Cooler |
2 |
27-842785 |
|
| 27 |
22-47630 |
|
|
|
|
ELBOW, 90 Degree |
1 |
|
|
| 28 |
22-706811 |
|
|
|
|
ELBOW, 90 Degree |
1 |
|
|
| 29 |
32-845126T |
|
|
|
|
HOSE ASSEMBLY, Oil (26.50 Inches), Cooler To Adaptor |
1 |
|
|
| 30 |
32-842496 |
|
|
|
|
HOSE ASSEMBLY, Oil (8.80 Inches), Adaptor To Cooler |
1 |
32-849884T |
|
| 31 |
849908T |
|
|
|
|
BRACKET, Oil Cooler |
2 |
|
Bravo Models |
| 32 |
845459T |
|
|
|
|
BRACKET, Oil Cooler |
2 |
|
Driveline Models |
| 33 |
54-844664 |
|
|
|
|
CLAMP, T Bolt Band |
2 |
|
|
| 34 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
2 |
|
|
| 35 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT, (.250-28) Stainless Steel |
2 |
|
|
| 36 |
19-8079923 |
|
|
|
|
COVER, Hose Clamp End - Clamp Stud (.375) |
2 |
|
|
| 37 |
22-805632 |
|
|
|
|
CONNECTOR, Oil Filter |
1 |
|
|
| 38 |
22-841870 |
|
|
|
|
CONNECTOR, Oil Thermostat Housing |
1 |
|
|
| - |
27-842182A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
