575 SCi - Serial 0L306696 Thru 0L307026 - Thermostat Housing

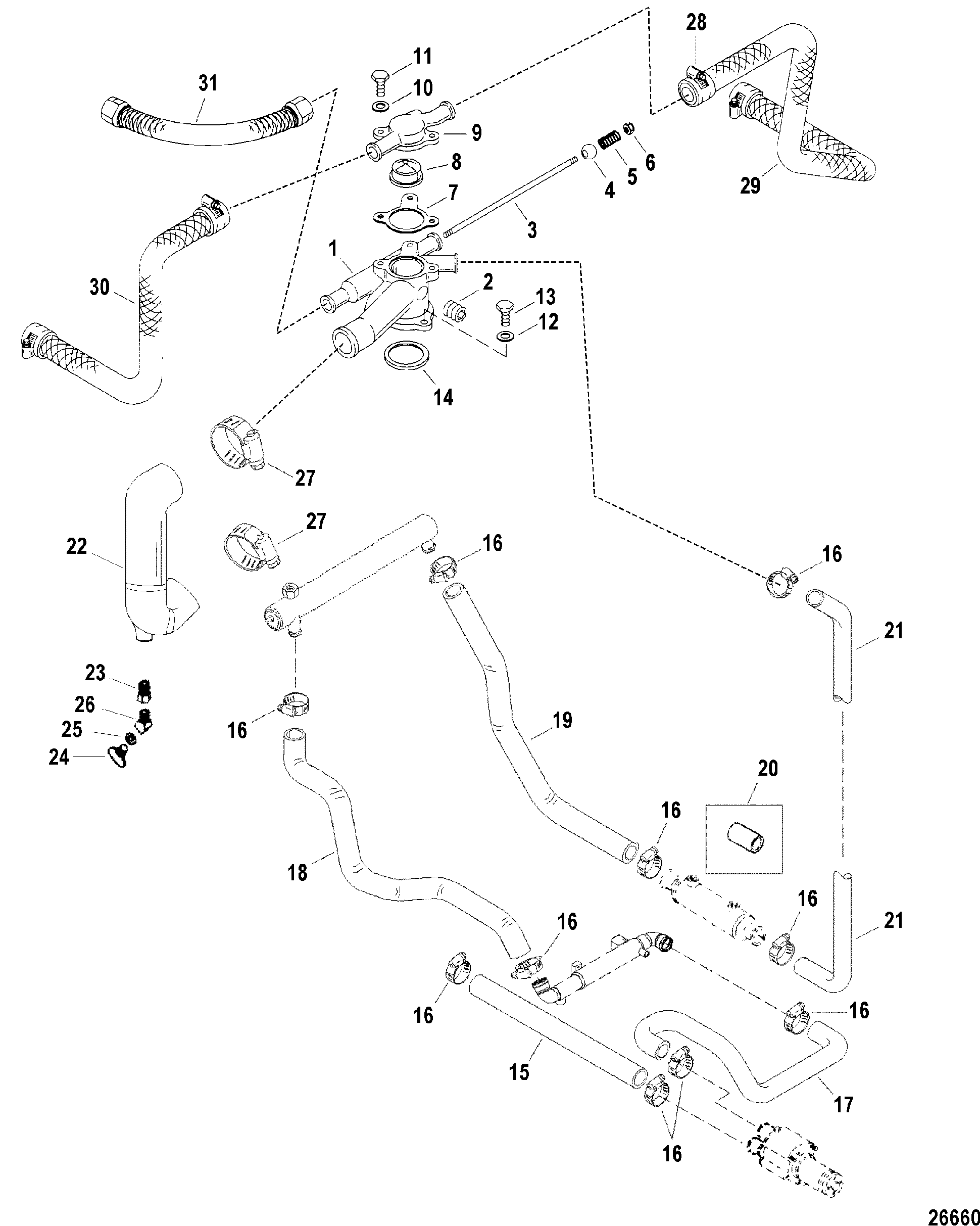

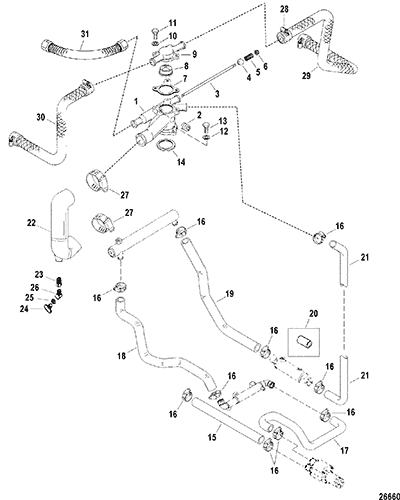

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 879330T39



HOUSING, Thermostat 1 8477042
2 22-36373



PLUG, (.375-18) Hex - Steel 1

3 6-847742



STUD, (#10-32 x 11.810) 1

4 30-98475



BALL, Nylon 2

5 24-75533



SPRING 2

6 11-29488

700-21163
NUT, (#10-32) 2
No longer made, limited availability
7 27-818364



GASKET, Thermostat 1
2
8 591371



THERMOSTAT 1

9 849875T01



COVER, Thermostat Housing - Black 1 8498751
10 12-37828



WASHER, (.390 x .625 x .062) Stainless Steel 3

11 10-30206



SCREW, (.375-16 x 1.00) Stainless Steel 3

12 12-37828



WASHER, (.390 x .625 x .062) Stainless Steel 3

13 10-65210



SCREW, (.375-16 x 1.00) 3

14 25-20826

700-82280 525-25-20826 O-RING, (2.230 x .139) 1
NOTE: Thermostat Housing To Intake Manifold 2
15 32-8M0062665



HOSE, (48.00 Inches Bulk), Cut As Required 1 32-5346170 Drive To Sea Pump - Six Drive
15 32-1743565



HOSE, (38.00 Inches Bulk), Cut As Required 1
Drive To Sea Pump - Bravo Models
15 32-13556A1



HOSE KIT, (10.00 Feet), Cut As Required 1
Drive To Sea Pump - Driveline Models
16 54-180766



CLAMP, Worm Gear 10

17 32-849935



HOSE, Molded, Sea Pump To Fuel Cooler 1

18 32-844881



HOSE, Molded, Fuel Cooler To Oil Cooler 1

19 32-848956



HOSE, Molded, Oil Cooler To Tube 1

20 22-13177



TUBE, Hose Attachment 1
Non Power Steering
21 32-844475



HOSE, Molded, Tube To Thermostat Housing 1

22 32-842412A02



HOSE ASSEMBLY, Thermostat To Circulating Pump 1 32-842412A1
23 22-860088



BUSHING 1

24 22-806608A02



PLUG KIT, (.500-13) Royal Blue 1 22-806608A1
25 25-32509



O-RING, (.489 x .070) 1

26 22-37682



FITTING, Elbow (45 Degree) 1

27 54-180768



CLAMP, Worm Gear 2

28 54-180764



CLAMP, Worm Gear 8

29 32-849942



HOSE, Molded, Port Thermostat Cover To Exhaust Manifold 1

30 32-849943



HOSE, Molded, Starboard Thermostat Cover To Exhaust Manifold 1

31 32-849940



HOSE, Molded, Thermostat Tee To Exhaust Elbow 1
Port
31 32-849941



HOSE, Molded, Thermostat Tee To Exhaust Elbow 1
Starboard
- 27-842182A1



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
