| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

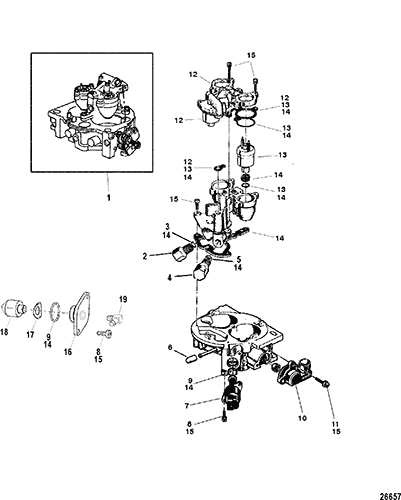

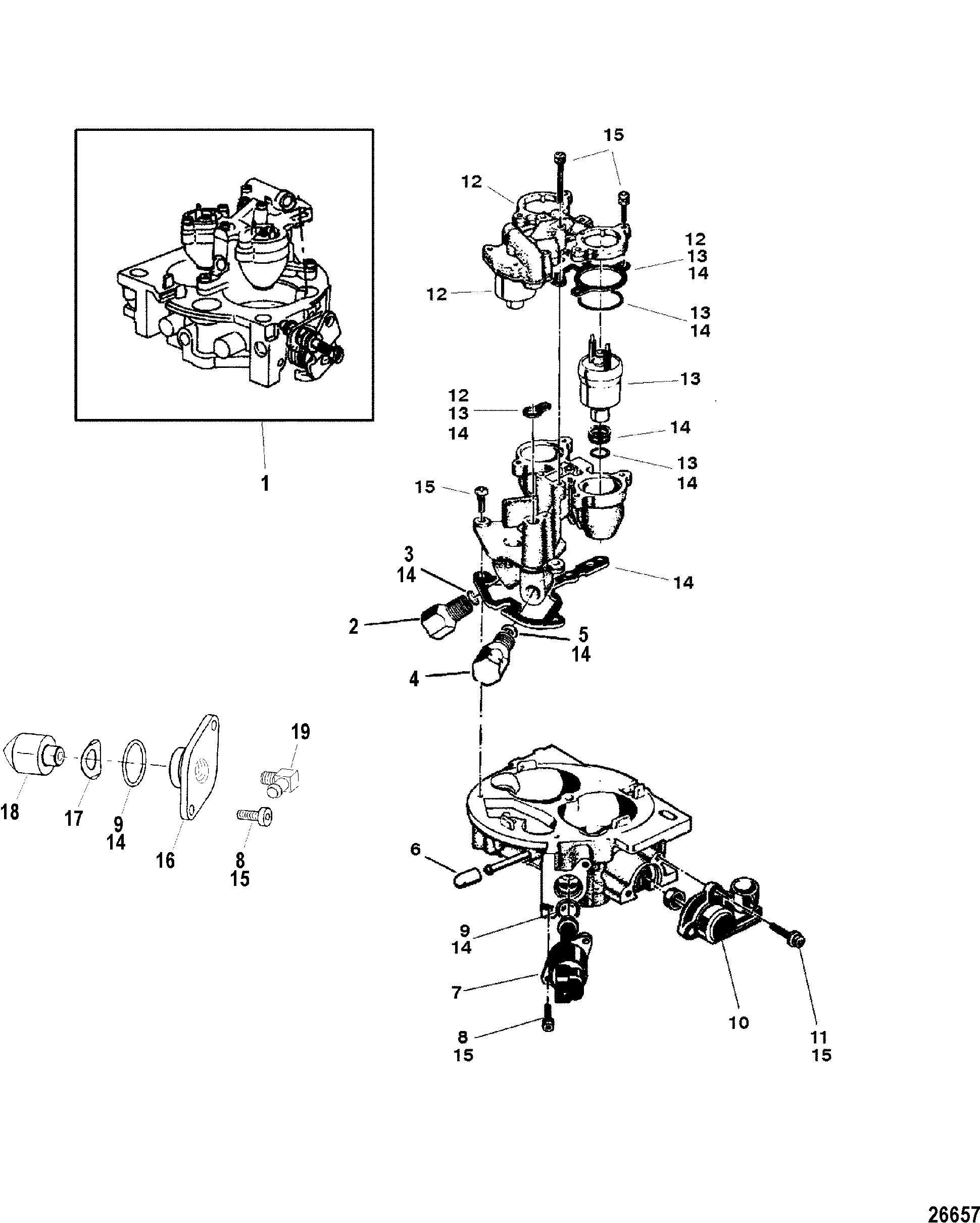

| 1 |
807941T13 |
|
|
|
|
THROTTLE BODY ASSEMBLY, Front - Blue |
1 |
807941T2 |
This Part is No Longer Available SN# 0M052947 & Below |
| 1 |
807941T13 |
|
|
|
|
THROTTLE BODY ASSEMBLY, Front - Blue |
1 |
|
This Part is No Longer Available SN# 0M052948 & Up |
| 1 |
807941T11 |
|
|
|
|
THROTTLE BODY ASSEMBLY, Rear - Blue |
1 |
807941T3 |
This Part is No Longer Available SN# 0M052947 & Below |
| 1 |
807941T11 |
|
|
|
|
THROTTLE BODY ASSEMBLY, Rear - Blue |
1 |
|
This Part is No Longer Available SN# 0M052948 & Up |
| 2 |
22-806653A1 |
|
|
|
|
FITTING ASSEMBLY, Inlet |
1 |
|
|
| 3 |
26-806655 |
|
|
|
|
SEAL |
1 |
|
|
| 4 |
22-808024A1 |
|
|
|
|
PLUG ASSEMBLY |
1 |
|
|
| 5 |
26-806706 |
|
|
|
|
SEAL |
1 |
|
|
| 6 |
806899 |
|
|
|
|
PLUG |
3 |
|
NOTE: Qty 2 - Front / Qty 1 - Rear |
| 7 |
805224A1 |
|
|
|
|
MOTOR ASSEMBLY, IAC |
1 |
|
Front Only SN# 0M052947 & Below |
| 7 |
805224A03 |
|
|
|
|
MOTOR KIT, (IAC) |
2 |
|
Front And Rear SN# 0M052948 & Up |
| 8 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
| 9 |
25-808547 |
|
|
|
|
O-RING |
1 |
|
|
| 10 |
805226A1 |
|
|
|
|
SENSOR ASSEMBLY, TPS, Throttle Postion |
1 |
|
|
| 11 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
| 12 |
852955 |
|
|
|
|
REGULATOR KIT, Fuel Pressure |
1 |
|
This Part is No Longer Available No longer available |
| 13 |
853998A1 |
|
|
|
|
INJECTOR KIT, Fuel |
1 |
853998T |
This Part is No Longer Available |
| 14 |
27-852957 |
|
|
|
|
GASKET KIT, Overhaul |
1 |
|
This Part is No Longer Available |
| 15 |
10-852958 |
|
|
|
|
SCREW KIT |
1 |
|
|
| 16 |
8457711 |
|
|
|
|
COVER |
1 |
|
Rear Only SN# 0M052947 & Below |
| 17 |
13-31030 |
|
|
|
|
WAVE WASHER |
1 |
|
Rear Only SN# 0M052947 & Below |
| 18 |
19-8499201 |
|
|
|
|
PLUG, (IAC) |
1 |
|
Rear Only SN# 0M052947 & Below |
| 19 |
22-196881 |
|
|
|
|
FITTING, (90 Degree) |
1 |
|
Rear Only SN# 0M052947 & Below |
