465 GM 502 1990-1992 - Serial 0C849992 Thru 0F213244 - Exhaust Manifold - Elbow

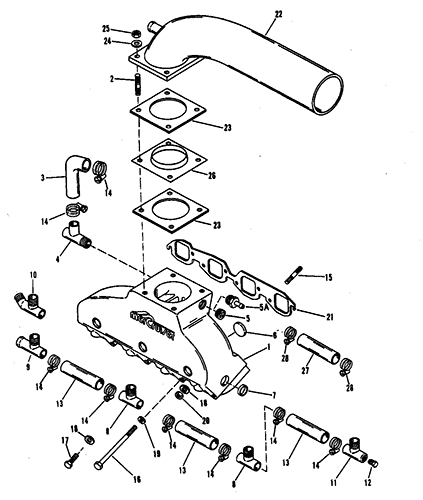

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 8M0084206         MANIFOLD ASSEMBLY-Exhaust (Port) 1 814901A5
1 814901T6         MANIFOLD ASSEMBLY-Exhaust (Starboard) 1 814901A6
2 16-815214         STUD 8

3 32-8152121         HOSE-Manifold to Exhaust Pipe 2

4 22-816035         FITTING 2

5 19-815203         PLUG-Pipe 2

5A 22-818768         FITTING (Straight) 2

6 19-815205         FREEZE PLUG (Large) (1") 10   This Part is No Longer Available
7 19-815204         FREEZE PLUG (Small) (3/4") 4

8 22-815208         FITTING-Tee 4   This Part is No Longer Available
9/10 22-815210         FITTING-Tee 2   This Part is No Longer Available
11 22-815209         FITTING-Tee 2   This Part is No Longer Available
12 19-815211         PLUG-Pipe-Drain 2   This Part is No Longer Available
13 32-815215         HOSE (3-1/2") 6

14 54-815207         CLAMP 16

15 16-821279         STUD (2-3/16") 4

16 10-821107         SCREW (3/8-16 x 3") 8

17 10-812567         SCREW (3/8-16 x 1-5/8") 4

18 12-20572         WASHER 8

19 12-37828         WASHER 8

20 11-25269         NUT (3/8-24) 4

21 27-46820         GASKET-Exhaust Manifold to Head 2
6
22 818498A1         ELBOW KIT-Exhaust (Standard) 2   This Part is No Longer Available
22 818499A1         ELBOW KIT-Exhaust (3") OPT.   This Part is No Longer Available 3
22 818497A1         ELBOW KIT-Exhaust (6") OPT.   This Part is No Longer Available 3
23 27-848147         GASKET-Exhaust Elbow 2

24 12-49112         WASHER 8   This Part is No Longer Available
25 11-68411         NUT (3/8-16) 8
No longer made, limited availability
26 816037         PLATE-Diffuser 2

27 32-688941         HOSE (6") Cut as Req'd 1

28 54-815504105         CLAMP 2
