465 GM 502 1990-1992 - Serial 0C849992 Thru 0F213244 - Flywheel Housing (Transmission Models)

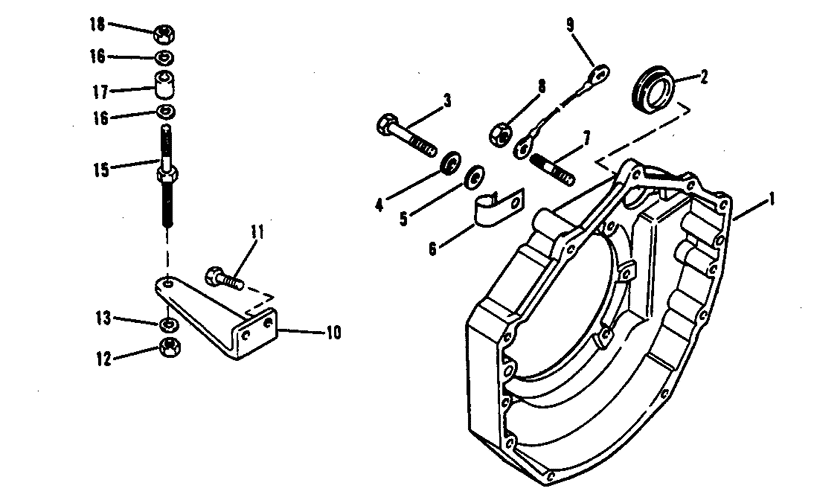

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44187T | HOUSING-Flywheel | 1 | ||||||
| 2 | 19-12304 | PLUG-Timing Window | 1 | ||||||
| 3 | 10-34353 | SCREW (3/8-16 x 1") | 1 | ||||||
| 3 | 10-37612 | SCREW (3/8-16 x 1-1/4") | 1 | ||||||
| 3 | 10-47688 | SCREW (3/8-16 x 2-3/4") | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER (3/8") | 7 | ||||||
| 5 | 12-20553 | WASHER | 5 | ||||||
| 5 | 12-20572 | WASHER (FOR SLOT) | 1 | ||||||
| 6 | 54-47483 | J CLIP | 1 | ||||||
| 7 | 16-96112 | STUD (2-1/4") | 2 | ||||||
| 8 | 11-32219 | NUT (3/8-16) | 2 | ||||||
| 9 | 84-62826A7 | CABLE ASSEMBLY (21")-Ground | 1 | This Part is No Longer Available | |||||
| 9 | 84-62826A6 | CABLE ASSEMBLY (13")-Ground | 1 | ||||||
| 10 | 17917 | BRACKET-Shift | 1 | ||||||
| 11 | 10-28668 | SCREW (1/4-20 x 7/8") | 2 | ||||||
| 12 | 11-826709109 | NUT (1/4-28) | 1 | 11-35045 | |||||
| 13 | 12-39143 | WASHER | 1 | ||||||
| 15 | 16-63335 | STUD | 1 | This Part is No Longer Available | |||||
| 16 | 12-69056 | WASHER | 2 | 12-21631 | |||||
| 17 | 23-31866 | SPACER | 1 | ||||||
| 18 | 11-8267089 | NUT (1/4-28) | 1 | 11-20361 |
