465 GM 502 1990-1992 - Serial 0C849992 Thru 0F213244 - Thermostat Housing

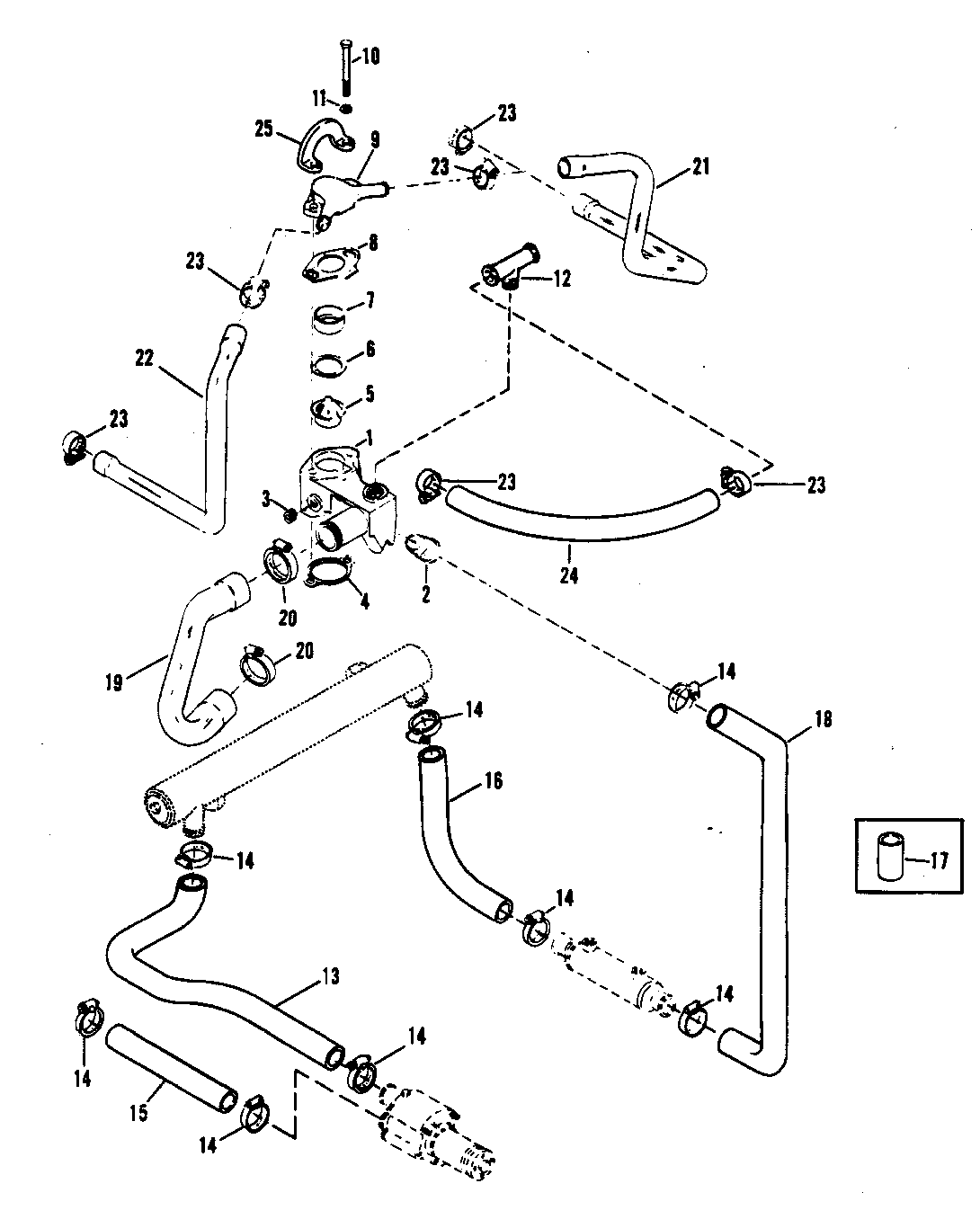

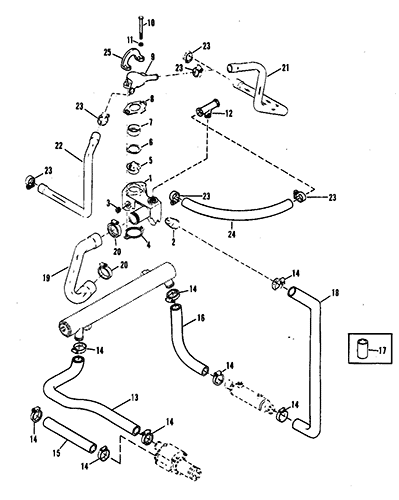

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 90736A18 | HOUSING ASSEMBLY-Thermostat | 1 | ||||||
| 2 | 23-47511 | SLEEVE | 1 | ||||||
| 3 | 22-32803 | PLUG-Pipe (3/8") | 2 | ||||||
| 4 | 27-530451 | GASKET-Thermostat Housing | 1 | 6 | |||||
| 5 | 807252T1 | THERMOSTAT (140 Deg.) | 1 | 8052731 | |||||
| 6 | 27-47510 | GASKET-Thermostat | 1 | 6 | |||||
| 7 | 23-47508T | SLEEVE-Thermostat | 1 | 23-47508 | |||||
| 8 | 27-418122 | GASKET-Thermostat Cover | 1 | 6 | |||||
| 9 | 8M0061068 | COVER-Thermostat | 1 | 47442A1 | |||||
| 10 | 10-14164 | SCREW (3/8-16 x 4-3/8") | 2 | ||||||
| 11 | 12-20553 | WASHER | 2 | ||||||
| 12 | 22-98477A2 | VALVE ASSEMBLY | 1 | ||||||
| 13 | 32-816197 | HOSE-Pump to Cooler | 1 | SERIAL 0C849992-0D725646 | |||||
| 13 | 32-821736 | HOSE-Pump to Cooler | 1 | SERIAL 0D725647-0F213244 | |||||
| 14 | 54-180766 | CLAMP | 8 | ||||||
| 15 | 32-1743565 | HOSE-Sea Pump to Drive Unit | 1 | ||||||
| 16 | 32-848956 | HOSE-Oil Cooler to Oil Cooler | 1 | 32-12818 | |||||
| 17 | 22-13177 | TUBE-Water Hose (NON POWER STEERING) | 1 | ||||||
| 18 | 32-896998 | HOSE-Oil Cooler to Thermostat Housing | 1 | 32-64346 | |||||
| 19 | 32-897181 | HOSE-Thermostat Housing to Water Pump | 1 | ||||||
| 20 | 54-180768 | CLAMP | 2 | ||||||
| 21 | 32-897491 | HOSE-Thermostat Cover (PORT) | 1 | ||||||
| 22 | 32-897301 | HOSE-Thermostat Cover (STBD) | 1 | ||||||
| 23 | 54-180764 | CLAMP | 8 | ||||||
| 24 | 32-8M0062614 | HOSE (17") Cut as Req'd | 2 | 32-3322070 | |||||
| 25 | 12552 | LIFTING EYE | 1 |
