465 GM 502 1990-1992 - Serial 0C849992 Thru 0F213244 - Fuel Pump And Fuel Filter (D456155-F213244)

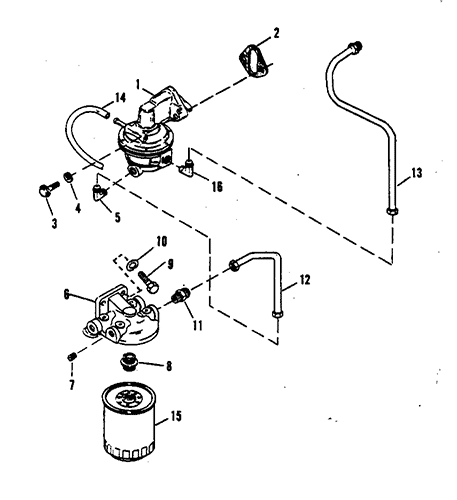

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861677T | PUMP ASSEMBLY-Fuel | 1 | 818383T | |||||
| 2 | 27-34213 | GASKET-Fuel Pump | 1 | 5 | |||||
| 3 | 10-34354 | SCREW (3/8-16 x 1-1/2") | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER (3/8") | 2 | ||||||
| 5 | 22-93385 | FITTING (90 DEGREES) | 2 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY-Fuel Filter | 1 | ||||||
| 7 | 22-32561 | PLUG-Pipe | 3 | ||||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 9 | 10-28782 | SCREW (5/16-18 x 7/8") | 2 | ||||||
| 10 | 13-26993 | LOCKWASHER (5/16") | 1 | ||||||
| 11 | 22-33821 | CONNECTOR | 2 | ||||||
| 12 | 32-848602 | LINE-Fuel-Filter to Pump | 1 | 32-847598 | |||||
| 13 | 32-822105 | LINE-Fuel-Fuel Pump to Carburetor | 1 | This Part is No Longer Available | |||||
| 14 | 32-9337070 | TUBING-Fuel Pump to Carburetor (Cut as Req'd) | 1 | This Part is No Longer Available | |||||
| 15 | 35-802893Q01 | FILTER-Fuel | 1 | 35-807172 | |||||
| 16 | 22-817395 | FITTING (45 DEGREES) | 1 | ||||||
| 17 | 27-811546A98 | COMPONENT OF GASKET SET | - | 27-811546A93 | This Part is No Longer Available |
