465 GM 502 1990-1992 - Serial 0C849992 Thru 0F213244 - Fuel Pump And Fuel Filter (C849992-D456154)

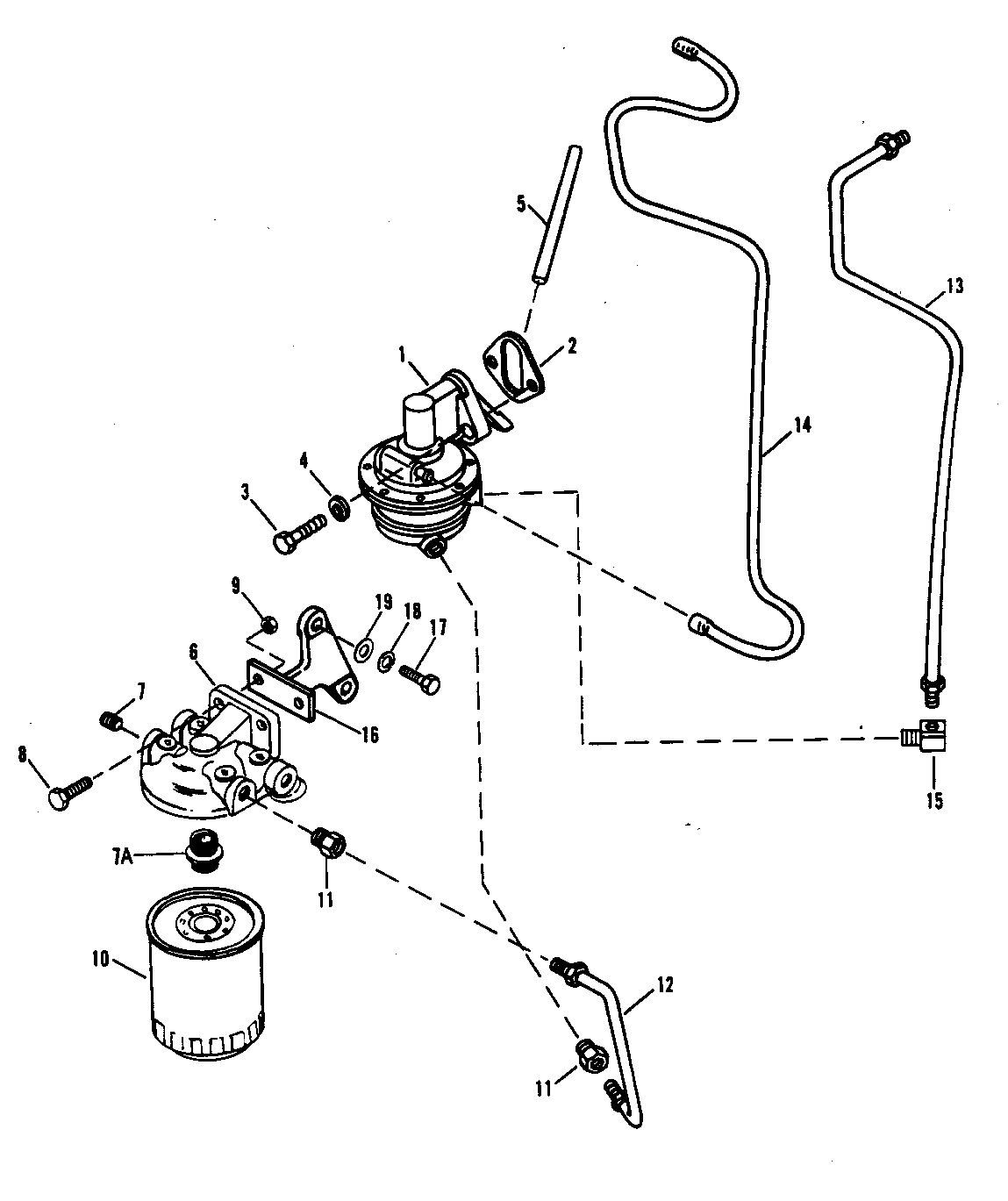

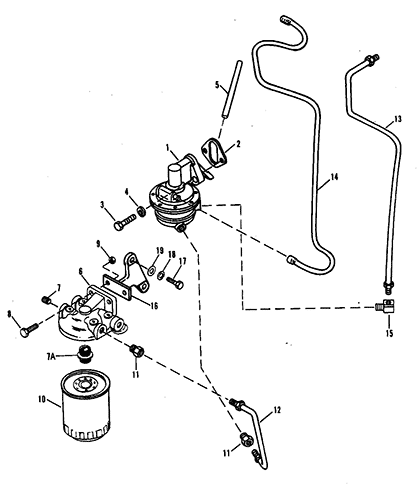

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862049A1 | PUMP ASSEMBLY-Fuel | 1 | 814624A2 | |||||
| 2 | 27-34213 | GASKET-Fuel Pump | 1 | 4 | |||||
| 3 | 10-37612 | SCREW (3/8-16 x 1-1/4") | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER (3/8") | 2 | ||||||
| 5 | 35377 | ROD-Fuel Pump | 1 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY-Fuel Filter | 1 | ||||||
| 7 | 22-32561 | PLUG-Pipe | 3 | ||||||
| 7A | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 8 | 10-26066 | SCREW (5/16-24 x 1-3/4") | 2 | No longer made, limited availability | |||||
| 9 | 11-82670911 | NUT (5/16-24) | 2 | 11-35814 | |||||
| 10 | 35-802893Q01 | FILTER-Fuel | 1 | 35-807172 | |||||
| 11 | 22-33821 | CONNECTOR | 2 | ||||||
| 12 | 32-814884T | LINE-Fuel-Filter to Pump | 1 | This Part is No Longer Available | |||||
| 13 | 32-816029 | LINE-Fuel-Fuel Pump to Carburetor | 1 | This Part is No Longer Available | |||||
| 14 | 32-9337070 | TUBING-Fuel Pump to Carburetor (Cut as Req'd) | 1 | This Part is No Longer Available | |||||
| 15 | 22-93385 | FITTING | 1 | ||||||
| 16 | 96940T | BRACKET-Filter Assembly Mount | 1 | This Part is No Longer Available | |||||
| 17 | 10-37612 | SCREW (3/8-16 x 1-1/4") | 1 | 3/8-16 THREAD | |||||
| 18 | 13-35048 | LOCKWASHER (3/8") | 1 | 3/8-16 THREAD | |||||
| 19 | 12-20553 | WASHER | 1 | 3/8-16 THREAD | |||||
| 17 | 10-47462 | SCREW (7/16-14 x 1-1/4") | 1 | 7/16-14 THREAD | |||||
| 18 | 13-32993 | LOCKWASHER (7/16") | 1 | 7/16-14 THREAD | |||||
| 19 | 12-22248 | WASHER | 1 | 7/16-14 THREAD | |||||
| 20 | 27-815669A90 | COMPONETS OF GASKET SET | This Part is No Longer Available |
