150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Driveshaft Housing

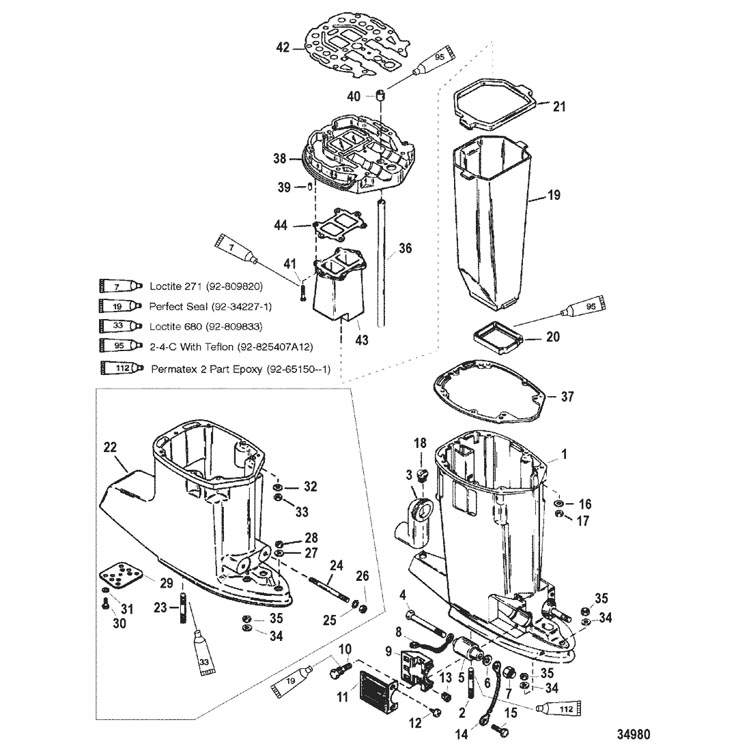

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1590-8343T10         HOUSING ASSEMBLY, Driveshaft 1 8343A10
1 1590-8343T10         HOUSING ASSEMBLY, Driveshaft 1 8343A11
2 16-579203         STUD, (.437-14/.437-20 x 2.060) 2
3 849330         BOOT, Idle Exhaust 1
4 10-898831         SCREW, (.500-20 x 6.00) 2 63474
5 816054T1         MOUNT, Lower 2 8160541
6 12-816056         WASHER 4
7 11-898832         NUT, (.500-20) 2 28040
8 88238A10         CABLE ASSEMBLY, Ground 1
9 54-8M0036782         CLAMP 2 67076
10 10-66727         SCREW, (.312-18 x 1.250) 4
11 8M4500752         COVER, Black 2 67077T
11 67077T         COVER, Gray 2   No Longer Available
12 10-88417         SCREW, (#12-24 x .620) 4
13 11-35521         NUT 4
14 88238A10         CABLE ASSEMBLY, Ground 1
15 10-41508         SCREW, (.250-20 x .500) Stainless Steel 1
16 12-822838         WASHER, (.401 x .745 x .097) 4
17 11-46335         NUT, (.375-24) 4
18 19-64649         PLUG 1
19 18276T         TUBE, Exhaust 1 18276
20 66350001         SEAL, LOWER 1 66350
21 8M0039076         SEAL, UPPER 1 177261
22 1581-818900T24         HOUSING ASSEMBLY, Driveshaft 1 818900A8
22 1581-818900T9         HOUSING ASSEMBLY, Driveshaft 1   No Longer Available
23 16-59579         STUD, (.437-14/.437-20 x 2.812) 2
24 16-818908         STUD, (.500-13/.500-20 x 4.120) 2
25 12-816056         WASHER 2
26 11-898832         NUT, (.500-20) 2 28040
27 12-822836         WASHER, (.445 x .805 x .108) 3
28 11-859116         NUT, (.4375-20) 3 134391
29 818909         PLATE, Exhaust Blockoff 1
30 10-39349         SCREW, (.312-18 x .750) Stainless Steel 1
31 12-847539         WASHER 1
32 12-822838         WASHER, (.401 x .745 x .097) 4
33 11-46335         NUT, (.375-24) 4
34 12-822836         WASHER, (.445 x .805 x .108) 3
35 11-859116         NUT, (.4375-20) 3 134391
36 32-672951         TUBE, Water 1
36 32-8M0042788         TUBE, Water 1 67295
36 32-8M0042790         TUBE 1 74729
37 27-991734         GASKET 1 991732
37 27-991733         GASKET 1
38 18233A4         PLATE ASSEMBLY 1   No Longer Available
38 18233A9         PLATE ASSEMBLY 1   No Longer Available
38 18233A10         PLATE ASSEMBLY 1   No Longer Available
39 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
40 26-38970         SEAL 1
41 10-90192         SCREW, (.250-20 x .750) Stainless Steel 6
42 27-183074         GASKET 1
42 27-183075         GASKET 1
43 17303T1         DIFFUSER 1 17303 No Longer Available
43 812834A2         EXTENSION, Exhaust 1 812834
43 879288T71         EXTENSION, Exhaust 1 41942F3
44 27-782461         GASKET 1 78246
- 27-823142A98         GASKET SET, Engine
