150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Fuel Pump/Filter

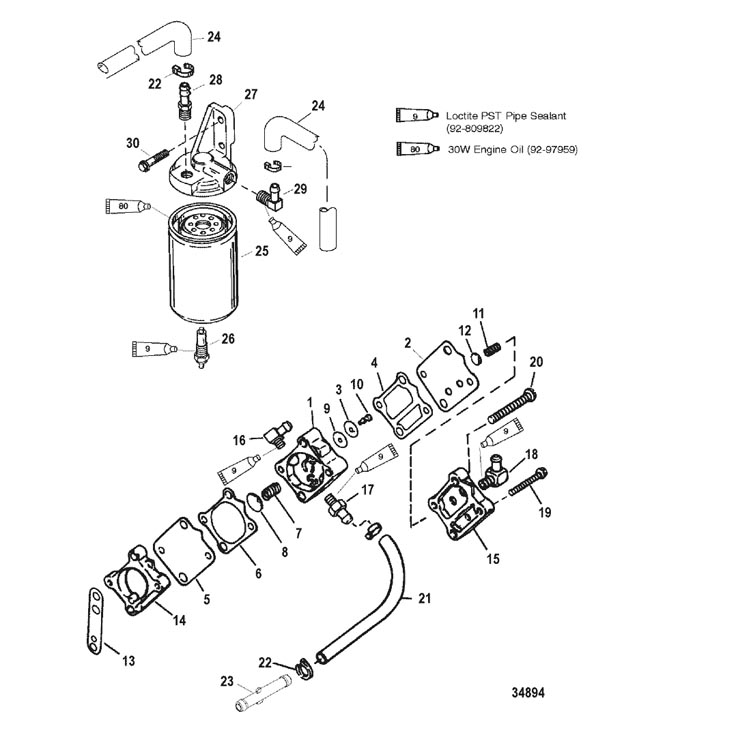

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 14360T75         PUMP ASSEMBLY, Fuel 1 14360A53
2 21-857005A1         DIAPHAGM KIT 1 42990A10
3 NSS         Check Valve-Rubber 2   Not Sold Separate
4 NSS         Gasket-Boost 1   Not Sold Separate
5 NSS         Diaphragm 2   Not Sold Separate
6 NSS         Gasket-Pulse 1   Not Sold Separate
7 NSS         Spring 1   Not Sold Separate
8 NSS         Cap 1   Not Sold Separate
9 NSS         Check Valve 2   Not Sold Separate
10 NSS         Retainer 2   Not Sold Separate
11 NSS         Spring 1   Not Sold Separate
12 NSS         Cap 1   Not Sold Separate
13 27-987691         GASKET, Base 1
14 144303         BASE 1
15 987752         PLATE 1
16 22-996642         ELBOW 1 996641
17 22-291112         CONNECTOR 1 29111
18 22-433351         CONNECTOR, 90 Degree (.125-27) Nylon 1 43335
19 10-82104540         SCREW, (M5 x 40), Fuel Pump 2
20 10-82130050         SCREW, (M6 x 50), Fuel Pump to Crankcase 2
21 32-8M0108349         TUBING, (28.00 Inches Bulk) (13-1/2) 1 83075780
22 54-816311T         TIE STRAP, (8.00 Inches) AR 816311
23 22-822769         CONNECTOR 1
24 32-1350385         TUBING, (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.) 2
25 35-18458Q4         FILTER KIT 1 18458A4
26 8285861         PROBE 1 828586
27 13170A3         BASE 1
28 22-89771Q2         CONNECTOR, (.250-18) 1 897712
29 22-136071         ELBOW 1
30 10-455611         SCREW, (.250-20 x 1.12) 2 45561
- 27-823142A98         GASKET SET, Engine 1
- 809839T94         POWERHEAD ASSEMBLY 1 809839A94
- 808603T94         POWERHEAD ASSEMBLY 1 808603A94 No Longer Available
