150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Gear Housing, Driveshaft-Standard-SportMaster

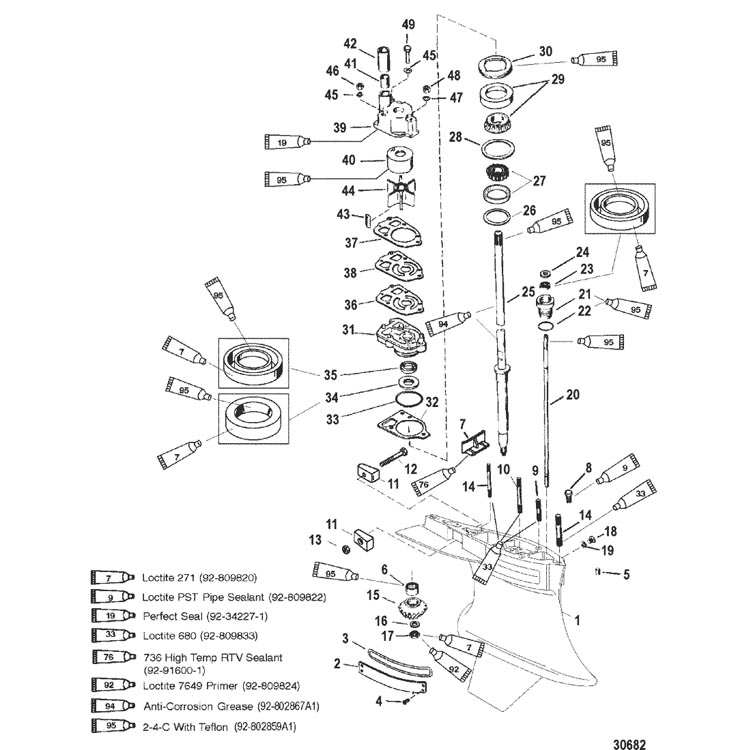

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: THE BASIC GEAR HOUSING LISTED IS GENERIC. IT DOES NOT INCLUDE STUDS.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1687-8M0084203         GEAR HOUSING ASSEMBLY, Basic-Without Torque Tab 1 848474A39
2 847950T3         COVER 2 8479503 No Longer Available
3 25-34776         O-RING 2
4 10-815904         SCREW, (#10-32 x .500) 12
5 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
6 31-42647A1         BEARING ASSEMBLY, Roller 1
7 8M0039169         FILLER BLOCK 1 67891
8 22-847949         PLUG, Pipe 1
9 16-8M0034463         STUD, (.312-18/.324-24 x 3.380) 1 562972
10 16-69501         STUD (5/16 X 3-1/4 IN.) 1
11 16-59579         STUD, (.437-14/.437-20 x 2.812) 3
11 16-786382         STUD, (.437-14/.437-20 x 3.120) 1
11 16-579203         STUD, (.437-14/.437-20 x 2.060) 2
11 16-74730         STUD (7/16 X 7.06 IN.) 2   No Longer Available
11 16-74732         STUD (7/16 X 7.69 IN.) 3   No Longer Available
11 16-78639         STUD (7/16 X 8-1/8 IN.) 1   No Longer Available
12 826134Q         ANODE 2 826134
13 10-4000333         SCREW, (M6 x 40) 1
14 11-401386         NUT, (M6) 1 8268336
15 NSS         Pinion Gear-Part of 43-15845A2 or 43-817515A2 1   Not Sold Separate
16 12-92721         WASHER 1
17 11-35921         NUT, (.625-18) 1
18 10-79953Q04         SCREW KIT, (.375-16 x .250) 1 79953A2
19 12-191833         WASHER, Fiber 1 19183
20 789022         SHIFT SHAFT, LOWER 1
21 23-77631A2         BUSHING ASSEMBLY 1
22 25-25439         O-RING, (.862 x .103) 1
23 26-8164641         SEAL, Oil 1
24 12-77674         WASHER 1
25 45-848449A4         DRIVESHAFT ASSEMBLY 1
25 45-848449A5         DRIVESHAFT ASSEMBLY 1
25 45-848449A6         DRIVESHAFT ASSEMBLY 1
26 15-8M0063268         SHIM ASSEMBLY 1   No Longer Available
27 31-48939A2         BEARING, Tapered Roller 1
28 15-8M0063267         SHIM SET AR   No Longer Available
29 31-36387A1         BEARING ASSEMBLY, Roller/Cup 1
30 8245191         RETAINER 1 824519
31 46-44292A3         BASE ASSEMBLY, Water Pump 1
32 27-426311         GASKET 1
33 25-896523         O-RING, (2.175 x .175) 1 90011
34 26-89238         SEAL, Oil 1
35 26-16977         SEAL, Oil 1
36 27-18051         GASKET, LOWER 1
37 27-858524         GASKET, UPPER 1 856091
38 324351         FACE PLATE 1 32435
39 46-96148T1         BODY ASSEMBLY, Water Pump 1 96148A1
40 48752T         INSERT 1 48752
41 26-38970         SEAL 1
42 23-29804T         SLEEVE 1 29804
43 28-8M0032834         KEY 1 56654
44 47-89984T4         IMPELLER 1 899844
45 12-29245         WASHER, (.281 x .500 x .060) Stainless Steel 2
46 11-8267119         NUT, (.250-28) 2 13438
47 12-36001         WASHER 1
48 11-13436         NUT 1
49 10-96411         SCREW, (#14-8 x 2.25) 1
- 26-89238A3         SEAL KIT, Gear Housing 1
- 56-59579         STUD KIT 1   No Longer Available
- 56-90415A25         STUD KIT 1   No Longer Available
