| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

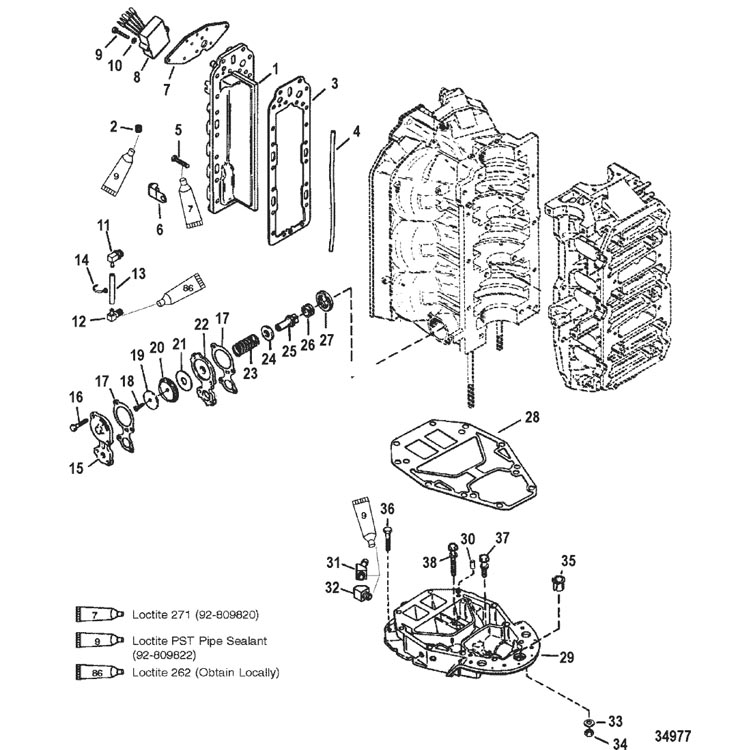

| 1 |
815552T1 |
|
|
|
|
DIVIDER PLATE |
1 |
815552A1 |
|
| 2 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
1 |
|
|
| 3 |
27-847525004 |
|
|
|
|
GASKET |
1 |
8475251 |
|
| 4 |
26-814754 |
|
|
|
|
SEAL, (12.50 Inches) |
1 |
|
|
| 5 |
10-848496 |
|
|
|
|
SCREW, (.312-18 x 1.50) |
18 |
|
|
| 5 |
10-848497 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
2 |
|
|
| 6 |
54-814634 |
|
|
|
|
CLAMP |
AR |
|
|
| 6 |
54-642352 |
|
|
|
|
J CLIP |
1 |
|
|
| 7 |
8478951 |
|
|
|
|
PLATE, Regulator |
1 |
|
|
| 8 |
8M0084173 |
|
|
|
|
REGULATOR, Voltage |
2 |
854515 |
|
| 9 |
10-69697 |
|
|
|
|
SCREW, (.250-28 x 1.50) |
4 |
|
No Longer Available |
| 10 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
4 |
35045 |
|
| 11 |
22-8144301 |
|
|
|
|
FITTING, (.500-14) |
1 |
814430 |
|
| 12 |
22-920071 |
|
|
|
|
FITTING, (.250-18) |
1 |
92007 |
|
| 13 |
32-8M0108355 |
|
|
|
|
HOSE, (57.00 Inches Bulk) (23-1/2) |
1 |
830756109 |
|
| 14 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
2 |
816311 |
|
| 15 |
8M0039767 |
|
|
|
|
COVER |
1 |
68729 |
|
| 16 |
10-74824 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
4 |
|
|
| 17 |
27-78690002 |
|
|
|
|
GASKET |
2 |
78690 |
|
| 18 |
10-69570 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 19 |
12-76451 |
|
|
|
|
WASHER |
1 |
|
|
| 20 |
144791 |
|
|
|
|
DIAPHRAGM |
1 |
14479 |
|
| 21 |
16496 |
|
|
|
|
DEFLECTOR, Water |
1 |
|
|
| 22 |
16497A1 |
|
|
|
|
PLATE |
1 |
|
|
| 23 |
24-64878 |
|
|
|
|
SPRING, (Black) |
1 |
|
|
| 24 |
12-85303 |
|
|
|
|
WASHER |
1 |
|
|
| 25 |
14480 |
|
|
|
|
POPPET |
1 |
|
|
| 26 |
25-64872 |
|
|
|
|
GROMMET |
1 |
|
|
| 27 |
65848 |
|
|
|
|
CARRIER |
1 |
|
|
| 28 |
27-8231422 |
|
|
|
|
GASKET |
2 |
|
|
| 29 |
18260A4 |
|
|
|
|
PLATE ASSEMBLY, Exhaust |
1 |
|
No Longer Available |
| 29 |
18260T6 |
|
|
|
|
PLATE ASSEMBLY, Exhaust |
1 |
18260A6 |
No Longer Available |
| 29 |
18260T7 |
|
|
|
|
PLATE ASSEMBLY, Exhaust |
1 |
18260A7 |
No Longer Available |
| 30 |
17-8M0043826 |
|
|
|
|
PIN, Dowel (.875) |
2 |
823106 |
|
| 31 |
22-14867 |
|
|
|
|
ELBOW, 45 Degree |
1 |
|
|
| 32 |
22-29085 |
|
|
|
|
FITTING, Elbow (45 Degree) |
1 |
|
|
| 33 |
12-822838 |
|
|
|
|
WASHER, (.401 x .745 x .097) |
6 |
|
|
| 34 |
11-46335 |
|
|
|
|
NUT, (.375-24), POWER HEAD STUDS |
6 |
|
|
| 35 |
23-27132 |
|
|
|
|
BUSHING |
1 |
|
|
| 36 |
10-60179 |
|
|
|
|
SCREW, (.437-14 x 3.500) |
3 |
|
|
| 36 |
10-898833 |
|
|
|
|
SCREW, (.375-16 x 3.50) |
3 |
66725 |
|
| 37 |
10-66727 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
1 |
|
|
| 38 |
10-68783 |
|
|
|
|
SCREW, (.312-18 x 2.50) |
1 |
|
|
| - |
27-823142A98 |
|
|
|
|
GASKET SET, Engine |
1 |
|
|
| - |
809839T94 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
809839A94 |
|
| - |
808603T94 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
808603A94 |
No Longer Available |
