| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

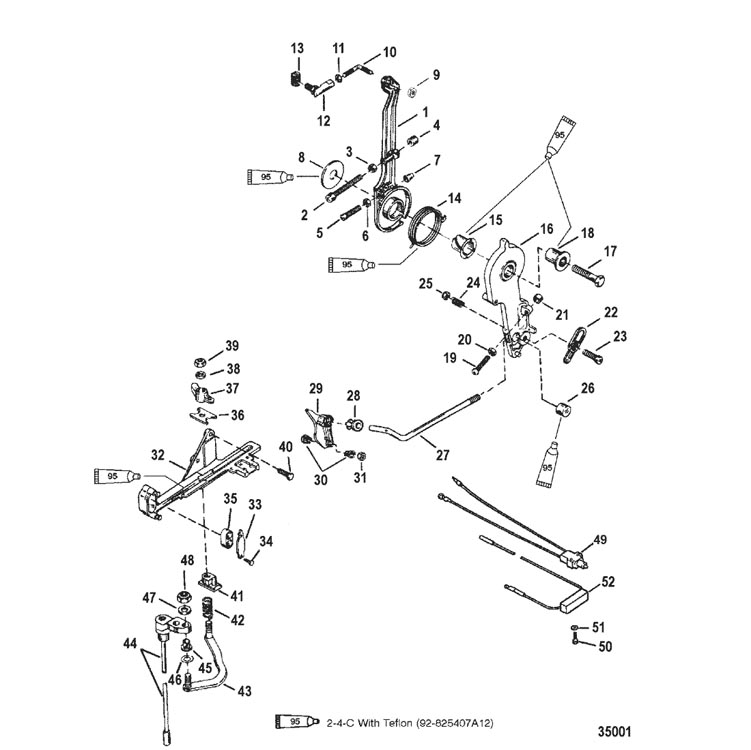

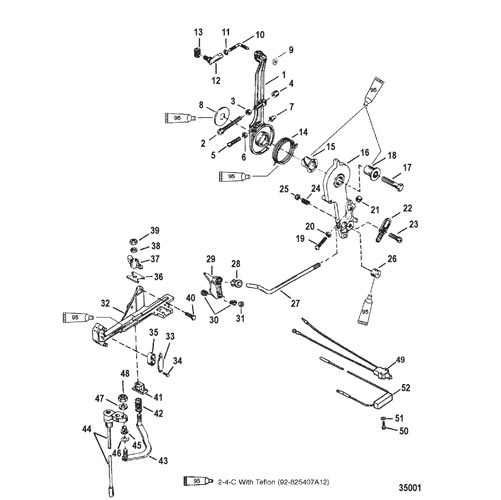

| 1 |
41094A3 |
|
|
|
|
LEVER ASSEMBLY |
1 |
|
|
| 2 |
10-64022 |
|
|
|
|
SCREW, (.250-20 x 2.125) |
1 |
|
|
| 3 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 4 |
26852 |
|
|
|
|
CAP, Nylon |
1 |
|
|
| 5 |
10-13627 |
|
|
|
|
SCREW, (.190-32 x 1.250) |
1 |
|
|
| 6 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
1 |
|
|
| 7 |
48039 |
|
|
|
|
CAP |
1 |
|
|
| 8 |
12-46765 |
|
|
|
|
WASHER, (.390 x 1.50 x .120) |
1 |
|
|
| 9 |
11-46438 |
|
|
|
|
NUT, (#10-32) |
1 |
|
|
| 10 |
76035 |
|
|
|
|
ROD |
1 |
|
|
| 11 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
1 |
|
|
| 12 |
62459T |
|
|
|
|
BALL JOINT ASSEMBLY |
1 |
62459 |
|
| 13 |
74897T |
|
|
|
|
PIVOT |
1 |
74897 |
|
| 14 |
24-823235 |
|
|
|
|
SPRING |
1 |
|
|
| 15 |
23-55171 |
|
|
|
|
BUSHING |
1 |
|
|
| 16 |
410952 |
|
|
|
|
LEVER |
1 |
41095 |
|
| 17 |
10-818165 |
|
|
|
|
SCREW, (.375-16 x 1.75) |
1 |
|
|
| 18 |
23-55164 |
|
|
|
|
BUSHING |
1 |
|
|
| 19 |
10-64022 |
|
|
|
|
SCREW, (.250-20 x 2.125) |
1 |
|
|
| 20 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 21 |
26852 |
|
|
|
|
CAP, Nylon |
1 |
|
|
| 22 |
39483 |
|
|
|
|
LATCH |
1 |
|
|
| 23 |
10-69026 |
|
|
|
|
SCREW, (.250-28 x .880) |
1 |
|
|
| 24 |
24-20099 |
|
|
|
|
SPRING |
1 |
|
|
| 25 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
1 |
35045 |
|
| 26 |
14638 |
|
|
|
|
BARREL |
1 |
|
|
| 27 |
14634 |
|
|
|
|
ROD |
1 |
|
|
| 28 |
23-932481 |
|
|
|
|
BUSHING |
1 |
|
|
| 29 |
8142392 |
|
|
|
|
CAM |
1 |
8142391 |
|
| 30 |
23-26856 |
|
|
|
|
BUSHING |
2 |
|
|
| 31 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
1 |
35045 |
|
| 32 |
814283A2 |
|
|
|
|
BRACKET ASSEMBLY |
1 |
|
|
| 33 |
98889 |
|
|
|
|
LATCH |
1 |
|
|
| 34 |
10-42975 |
|
|
|
|
DRIVE SCREW |
2 |
|
|
| 35 |
39519 |
|
|
|
|
CUP |
1 |
|
|
| 36 |
52100 |
|
|
|
|
WEAR PLATE |
1 |
|
|
| 37 |
8M0036768 |
|
|
|
|
LATCH |
1 |
38279 |
|
| 38 |
12-69056 |
|
|
|
|
WASHER, (.255 x .620 x .030) Stainless Steel |
1 |
|
|
| 39 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
1 |
35045 |
|
| 40 |
10-53167T |
|
|
|
|
SCREW, (.312-18 x .880) |
3 |
53167 |
|
| 41 |
814284 |
|
|
|
|
GUIDE BLOCK |
1 |
|
|
| 42 |
24-20099 |
|
|
|
|
SPRING |
1 |
|
|
| 43 |
67073A1 |
|
|
|
|
LINK ROD ASSEMBLY |
1 |
|
|
| 44 |
79932A18 |
|
|
|
|
SHIFT SHAFT ASSEMBLY |
1 |
|
|
| 44 |
79932A16 |
|
|
|
|
SHIFT SHAFT ASSEMBLY |
1 |
|
|
| 44 |
79932A17 |
|
|
|
|
SHIFT SHAFT ASSEMBLY |
1 |
|
|
| 45 |
23-26856 |
|
|
|
|
BUSHING |
1 |
|
|
| 46 |
13-29720 |
|
|
|
|
WAVE WASHER |
1 |
|
|
| 47 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
1 |
|
|
| 48 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
1 |
35045 |
|
| 49 |
87-814281A1 |
|
|
|
|
IDLE STABILIZING SHIFT KIT |
1 |
|
No Longer Available |
| 50 |
10-77478 |
|
|
|
|
SCREW, (#6-32 x .875) |
2 |
|
|
| 51 |
12-27882 |
|
|
|
|
WASHER |
2 |
|
|
| 52 |
17461A3 |
|
|
|
|
RESISTOR MODULE |
1 |
|
|
