| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

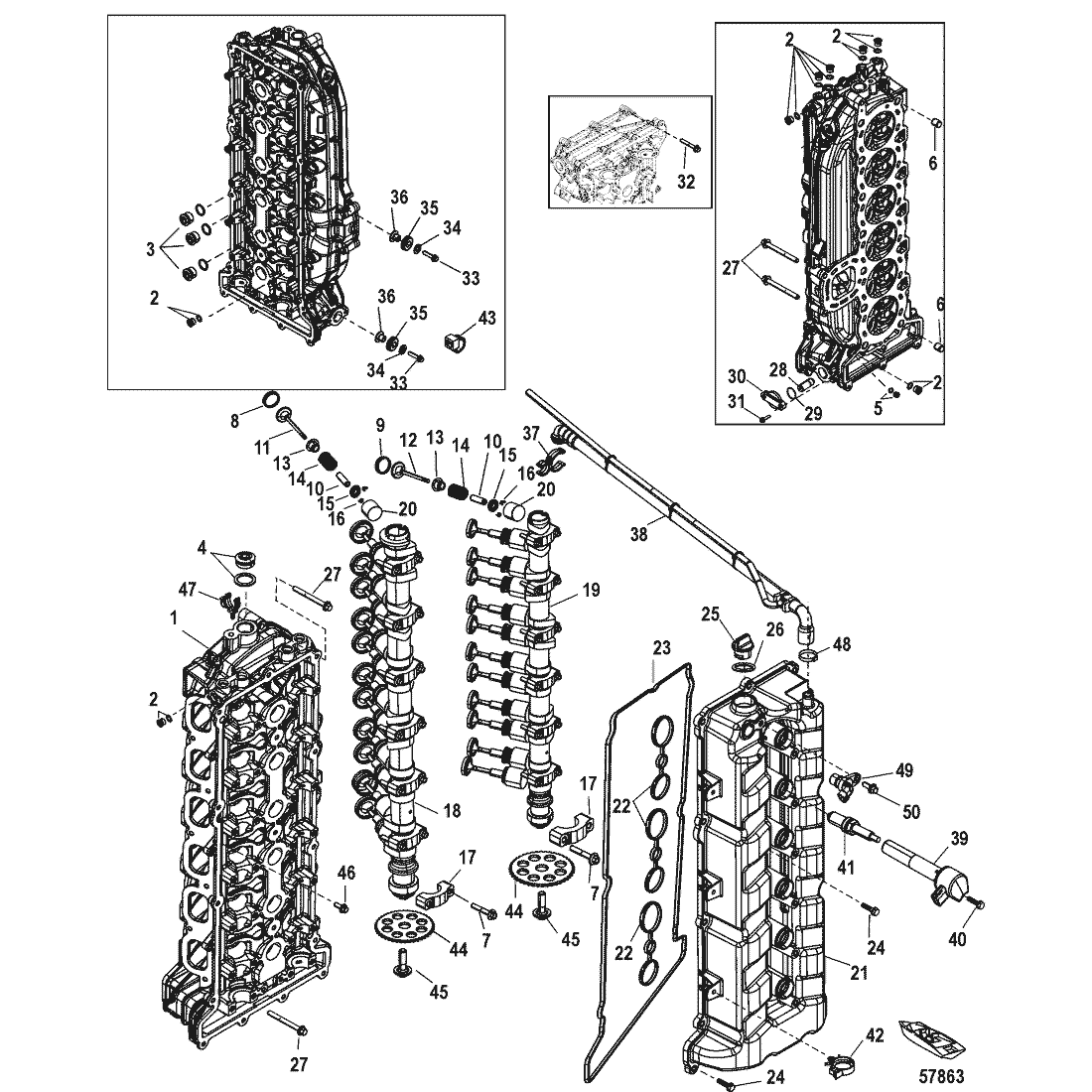

900-880536A15 |
|
|
|
|
CYLINDER HEAD ASSEMBLY |
1 |
|
|
| 1 |
900-8M0103282 |
|
|
|
|
CYLINDER HEAD ASSEMBLY, Basic |
1 |
|
|
| 2 |
19-8M0087448 |
|
|
|
|
PLUG, (12 MM) |
8 |
8M0047994 |
|
| 3 |
19-8M0047995 |
|
|
|
|
PLUG, (18 MM) |
3 |
|
|
| 4 |
19-8M0047996 |
|
|
|
|
PLUG, (24 MM) |
1 |
|
|
| 5 |
19-8M0087446 |
|
|
|
|
PLUG, (10 MM) |
1 |
8M0047992 |
|
| 6 |
17-880524 |
|
|
|
|
PIN, Dowel (14 MM) |
2 |
|
|
| 7 |
10-892454035 |
|
|
|
|
BOLT, (M6 x 36) |
28 |
|
|
| 8 |
880533 |
|
|
|
|
SEAT, Intake Valve |
12 |
|
|
| 9 |
8M0089477 |
|
|
|
|
SEAT, Exhaust Seat, Exhaust Valve |
12 |
|
|
| 10 |
880537 |
|
|
|
|
Guide, Intake Exhaust Valve, Intake and Exhaust Valves |
24 |
|
|
| 11 |
20-898907 |
|
|
|
|
VALVE, Intake |
12 |
|
|
| 12 |
20-898908 |
|
|
|
|
VALVE, Exhaust |
12 |
|
|
| 13 |
26-896880 |
|
|
|
|
SEAL, Valve |
24 |
|
|
| 14 |
24-8M0103092 |
|
|
|
|
SPRING VALVE KIT |
24 |
|
|
| 15 |
8M0908500 |
|
|
|
|
RETAINER ASSEMBLY, Valves |
24 |
|
|
| 16 |
28-880543 |
|
|
|
|
KEY |
48 |
|
|
| 17 |
NSS |
|
|
|
|
Cap |
14 |
|
Not Sold Separate |
| 18 |
400-892112T05 |
|
|
|
|
CAMSHAFT, Intake |
1 |
|
|
| 19 |
400-892113T04 |
|
|
|
|
CAMSHAFT, Exhaust |
1 |
|
|
| 20 |
899912001 |
|
|
|
|
TAPPET, (2.996) |
24/AR |
|
|
| 20 |
899912002 |
|
|
|
|
TAPPET, (3.021) |
24/AR |
|
|
| 20 |
899912003 |
|
|
|
|
TAPPET, (3.046) |
24/AR |
|
|
| 20 |
899912004 |
|
|
|
|
TAPPET, (3.071) |
24/AR |
|
|
| 20 |
899912005 |
|
|
|
|
TAPPET, (3.096) |
24/AR |
|
|
| 20 |
899912006 |
|
|
|
|
TAPPET, (3.118) |
24/AR |
|
|
| 20 |
899912007 |
|
|
|
|
TAPPET, (3.138) |
24/AR |
|
|
| 20 |
899912008 |
|
|
|
|
TAPPET, (3.158) |
24/AR |
|
|
| 20 |
899912009 |
|
|
|
|
TAPPET, (3.178) |
24/AR |
|
|
| 20 |
899912010 |
|
|
|
|
TAPPET, (3.198) |
24/AR |
|
|
| 20 |
899912011 |
|
|
|
|
TAPPET, (3.218) |
24/AR |
|
|
| 20 |
899912012 |
|
|
|
|
TAPPET, (3.238) |
24/AR |
|
|
| 20 |
899912013 |
|
|
|
|
TAPPET, (3.258) |
24/AR |
|
|
| 20 |
899912014 |
|
|
|
|
TAPPET, (3.278) |
24/AR |
|
|
| 20 |
899912015 |
|
|
|
|
TAPPET, (3.298) |
24/AR |
|
|
| 20 |
899912016 |
|
|
|
|
TAPPET, (3.318) |
24/AR |
|
|
| 20 |
899912017 |
|
|
|
|
TAPPET, (3.338) |
24/AR |
|
|
| 20 |
899912018 |
|
|
|
|
TAPPET, (3.358) |
24/AR |
|
|
| 20 |
899912019 |
|
|
|
|
TAPPET, (3.378) |
24/AR |
|
|
| 20 |
899912020 |
|
|
|
|
TAPPET, (3.398) |
24/AR |
|
|
| 20 |
899912021 |
|
|
|
|
TAPPET, (3.418) |
24/AR |
|
|
| 20 |
899912022 |
|
|
|
|
TAPPET, (3.438) |
24/AR |
|
|
| 20 |
899912023 |
|
|
|
|
TAPPET, (3.458) |
24/AR |
|
|
| 20 |
899912024 |
|
|
|
|
TAPPET, (3.478) |
24/AR |
|
|
| 20 |
899912025 |
|
|
|
|
TAPPET, (3.498) |
24/AR |
|
|
| 20 |
899912026 |
|
|
|
|
TAPPET, (3.518) |
24/AR |
|
|
| 20 |
899912027 |
|
|
|
|
TAPPET, (3.538) |
24/AR |
|
|
| 20 |
899912028 |
|
|
|
|
TAPPET, (3.558) |
24/AR |
|
|
| 20 |
899912029 |
|
|
|
|
TAPPET, (3.578) |
24/AR |
|
|
| 20 |
899912030 |
|
|
|
|
TAPPET, (3.598) |
24/AR |
|
|
| 20 |
899912031 |
|
|
|
|
TAPPET, (3.621) |
24/AR |
|
|
| 20 |
899912032 |
|
|
|
|
TAPPET, (3.646) |
24/AR |
|
|
| 20 |
899912033 |
|
|
|
|
TAPPET, (3.671) |
24/AR |
|
|
| 20 |
899912034 |
|
|
|
|
TAPPET, (3.696) |
24/AR |
|
|
| 20 |
899912035 |
|
|
|
|
TAPPET, (3.721) |
24/AR |
|
|
| 21 |
892596T04 |
|
|
|
|
COVER ASSEMBLY, Cam |
1 |
|
|
| 22 |
892584 |
|
|
|
|
SEAL |
3 |
|
|
| 23 |
8M6000959 |
|
|
|
|
SEAL |
1 |
|
|
| 24 |
10-88552525 |
|
|
|
|
SCREW, (M6 x 25 MM) Stainless Steel |
3 |
|
|
| 25 |
859578A1 |
|
|
|
|
PLUG ASSEMBLY, Oil |
1 |
|
|
| 26 |
25-90196 |
|
|
|
|
O-RING, (.921 x .139) |
1 |
|
|
| 27 |
10-88552660 |
|
|
|
|
SCREW, (M8 x 60) |
4 |
|
|
| 28 |
898463A01 |
|
|
|
|
TENSIONER ASSEMBLY |
1 |
|
|
| 29 |
25-898836 |
|
|
|
|
O-RING, Brown |
1 |
|
|
| 30 |
1100-8M0064752 |
|
|
|
|
END CAP - CAM TENSIONER , Tensioner |
1 |
|
|
| 31 |
10-88552525 |
|
|
|
|
SCREW, (M6 x 25 MM) Stainless Steel |
2 |
|
|
| 32 |
10-88552540 |
|
|
|
|
SCREW, (M6 x 40 MM) Stainless Steel |
3 |
|
|
| 33 |
10-88552635 |
|
|
|
|
SCREW, (M8 x 35 MM) |
2 |
|
|
| 34 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
2 |
|
|
| 35 |
25-833155 |
|
|
|
|
GROMMET |
2 |
|
|
| 36 |
23-8502341 |
|
|
|
|
BUSHING |
2 |
|
|
| 37 |
54-892833 |
|
|
|
|
CLIP |
1 |
|
|
| 38 |
32-889591A05 |
|
|
|
|
HOSE ASSEMBLY, Breather |
1 |
|
|
| 39 |
339-880615T01 |
|
|
|
|
COIL ASSEMBLY |
6 |
|
|
| 40 |
10-88552525 |
|
|
|
|
SCREW, (M6 x 25 MM) Stainless Steel |
6 |
|
|
| 41 |
33-889246Q39 |
|
|
|
|
SPARK PLUG, NGK-ILFR6GE |
6 |
|
|
| 42 |
54-858954 |
|
|
|
|
CLIP, (.625) |
3 |
|
|
| 43 |
54-850181 |
|
|
|
|
TIE STRAP, (11.750 Inches) |
1 |
|
|
| 44 |
43-880550 |
|
|
|
|
SPROCKET, Cam Drive |
2 |
|
|
| 45 |
10-8M0021532 |
|
|
|
|
SCREW, (M12 x 40 MM) |
2 |
|
|
| 46 |
10-88552512 |
|
|
|
|
SCREW, (M6 x 12 MM) Stainless Steel |
3 |
|
|
| 47 |
54-889746001 |
|
|
|
|
CLIP |
1 |
|
|
| 48 |
54-888988019 |
|
|
|
|
CLAMP, (22.6 mm) |
1 |
|
|
| 49 |
8M0011987 |
|
|
|
|
SENSOR |
1 |
|
|
| 50 |
10-88552516 |
|
|
|
|
SCREW, (M6 x 16 MM) Stainless Steel |
1 |
|
|
| - |
61-896966A07 |
|
|
|
|
ASSEMBLY, Long Block |
1 |
|
|
