200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Top Cowl

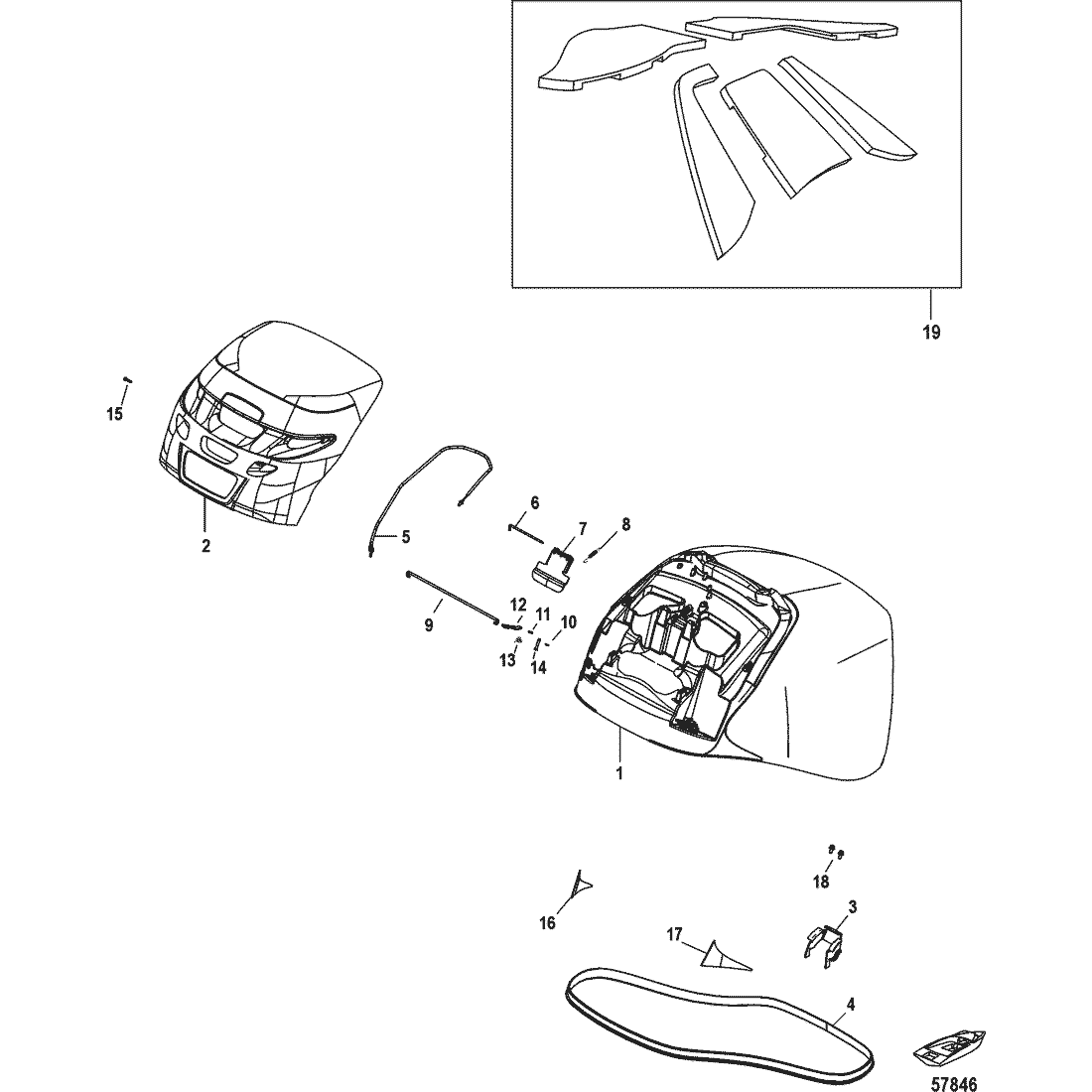

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 100-8M0100179 | TOP COWL ASSEMBLY, Mercury Pro, Decaled | 1 | ||||||
| 1 | 100-8M0100220 | TOP COWL ASSEMBLY, Mercury, Non-Decaled | 1 | ||||||
| 2 | 885354T01 | CAP, Air Dam, Mercury, Black | 1 | ||||||
| 3 | 888971 | FRONT LATCH RECEIVER | 1 | ||||||
| 4 | 8M0043229 | SEAL | 1 | ||||||
| 5 | 8M0080461 | CABLE, Latch | 1 | ||||||
| 6 | 17-888959 | PIN, Hinge | 1 | ||||||
| 7 | 888956 | LATCH, Hand Lever | 1 | ||||||
| 8 | 24-895373 | SPRING | 1 | ||||||
| 9 | 888955 | LINK, Latch Connecting | 1 | ||||||
| 10 | 18-26953 | COTTER PIN | 2 | ||||||
| 11 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 12 | 888952 | LINKAGE ARM | 2 | ||||||
| 13 | 24-888953 | SPRING | 2 | ||||||
| 14 | 17-822417 | PIN | 2 | ||||||
| 15 | 10-897678020 | SCREW, (M4 x 20mm) | 6 | ||||||
| 16 | 8M0033614 | APPLIQUE, Port, Mercury | 1 | ||||||
| 17 | 8M0033615 | APPLIQUE, Starboard, Mercury | 1 | ||||||
| 18 | 10-88552512 | SCREW, (M6 x 12 MM) Stainless Steel | 2 | ||||||
| 19 | 8M4501639 | SOUND BLANKET KIT | 1 |
