200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Power Trim Components

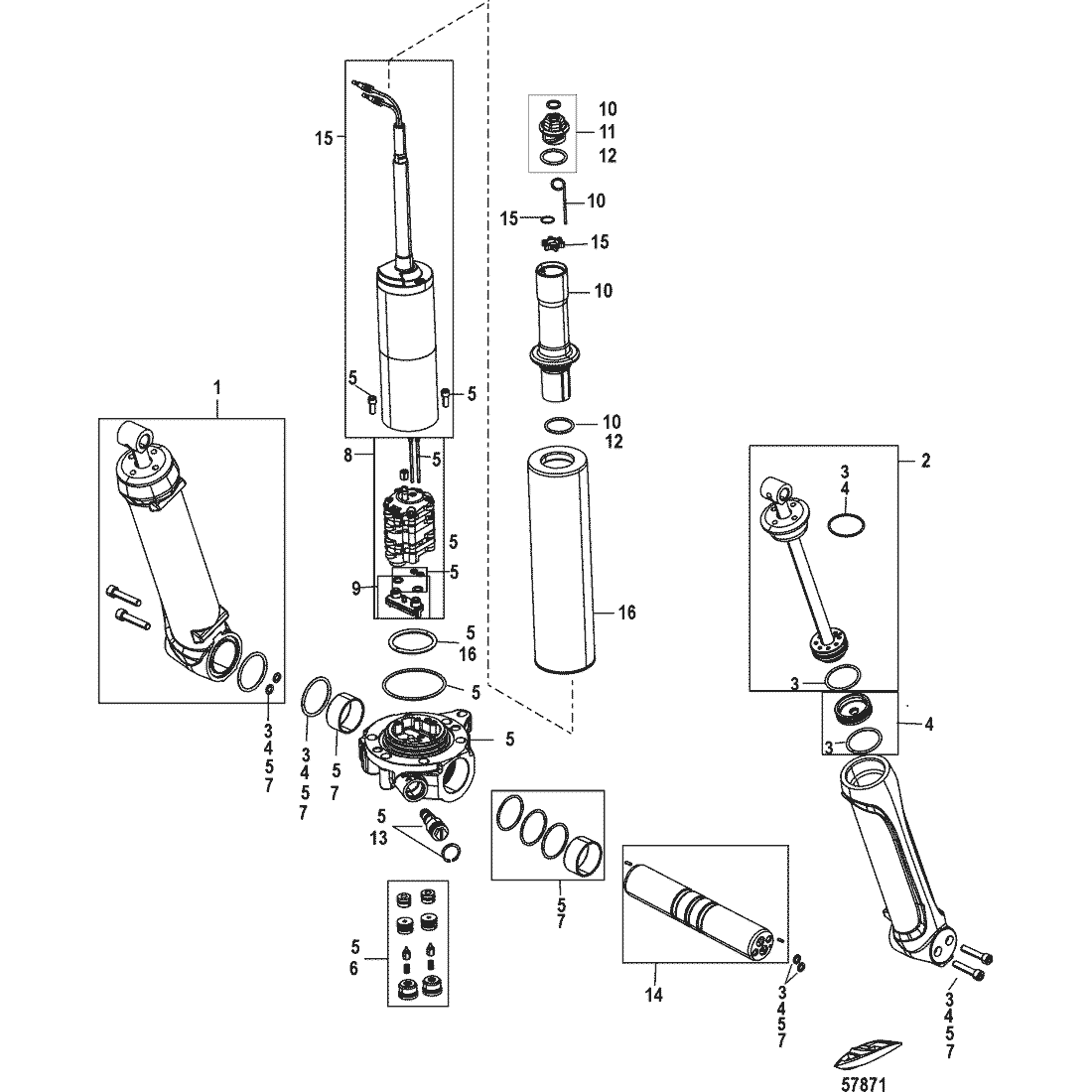

Section Drawing: (Hover or click to view larger)
