200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - SuperCharger

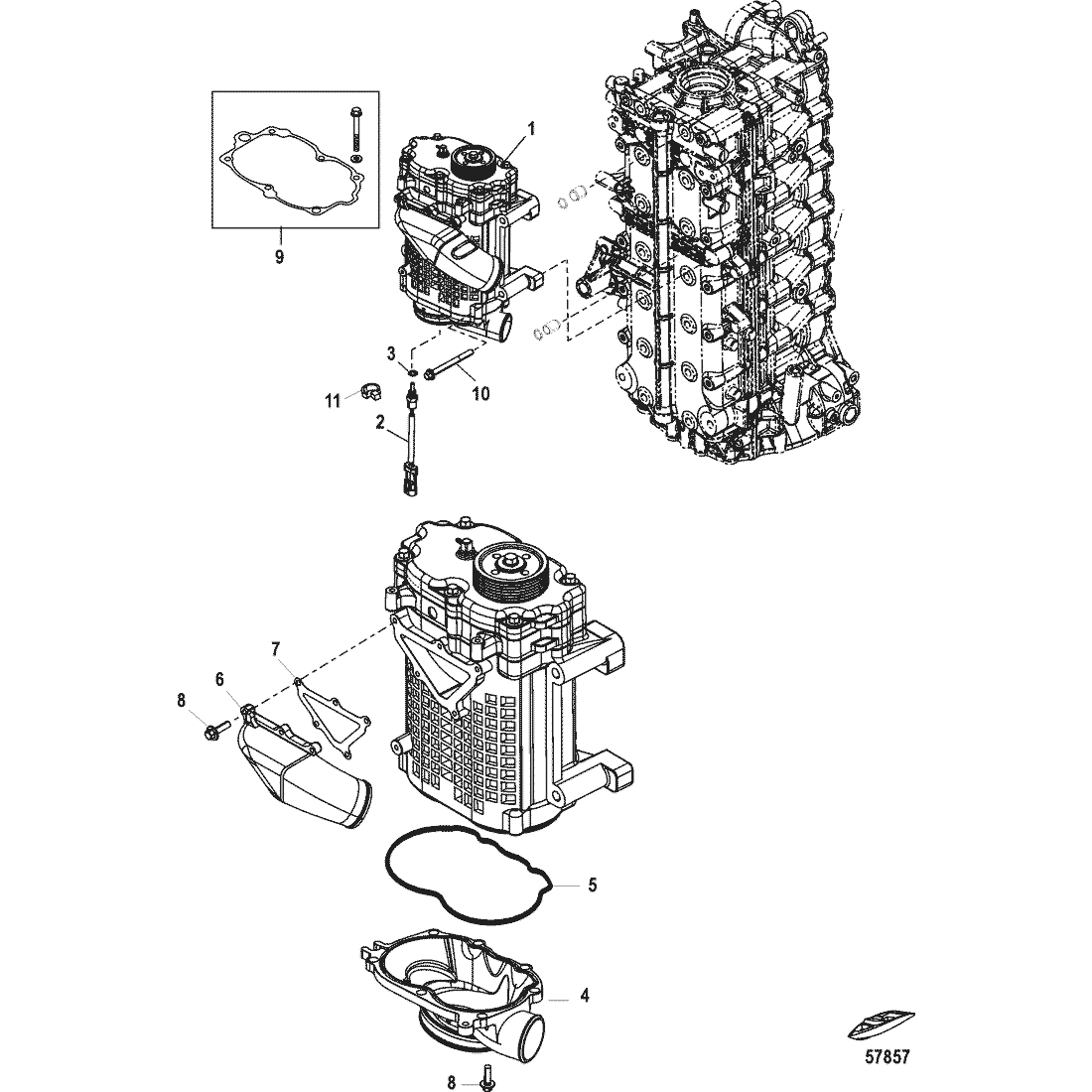

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0104720 | SUPERCHARGER | 1 | 8M0102809 | |||||
| 2 | 885342002 | SENSOR ASSEMBLY | 1 | ||||||
| 3 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 1 | ||||||
| 5 | 27-888947501 | GASKET | 1 | ||||||
| 6 | 8M0033976 | DUCT KIT, Outlet | 1 | ||||||
| 7 | 27-888947504 | GASKET | 1 | ||||||
| 8 | 10-888947502 | BOLT | 9 | ||||||
| 9 | 23-847803A02 | BUSHING/GASKET KIT | 1 | ||||||
| 10 | 10-885527105 | SCREW, (M10 x 105) | 4 | ||||||
| 11 | 56762 | TIE STRAP, (4.00 Inches) | 1 |
