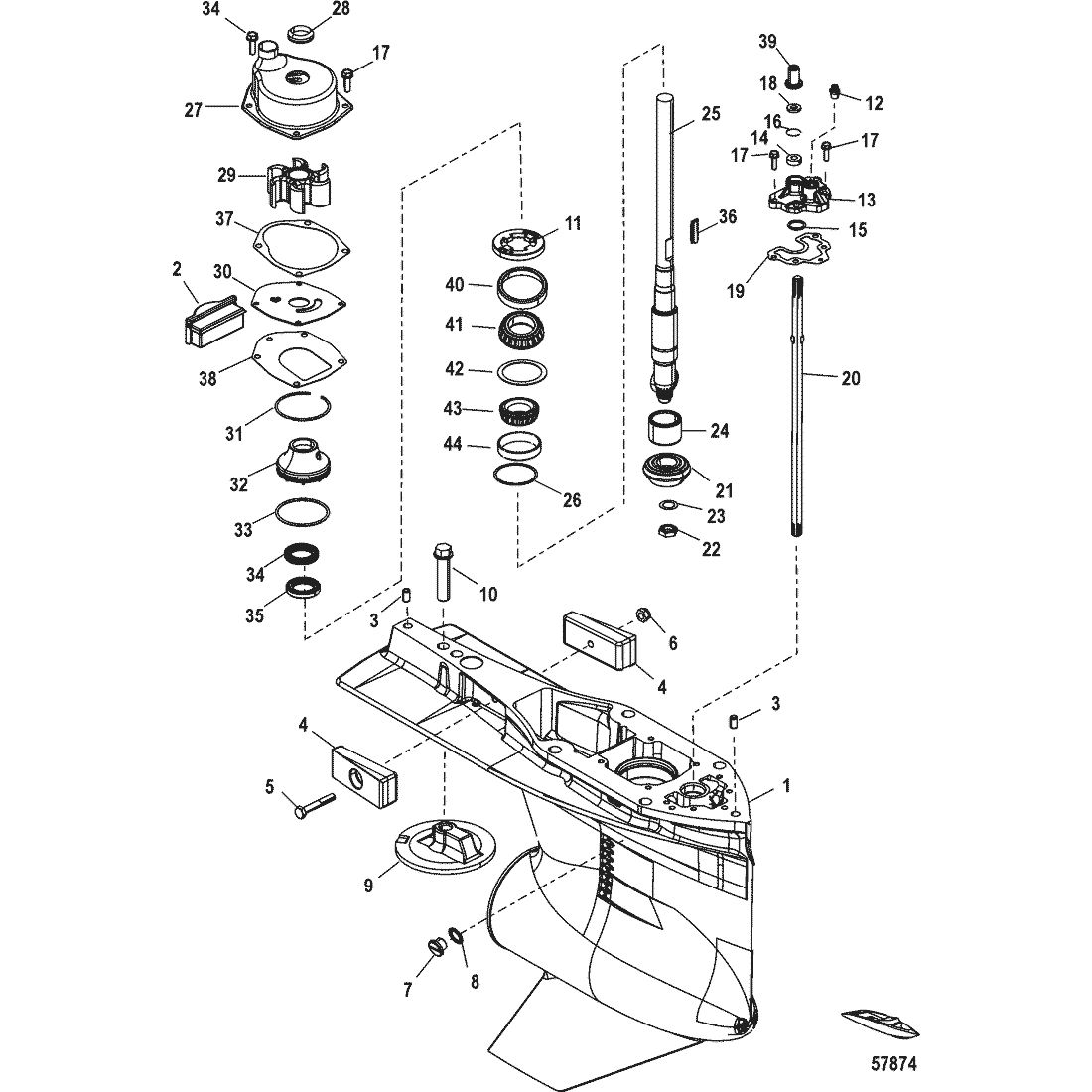

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
1600-880686T13 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
|
| - |
1600-880686T14 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
|
| - |
1600-880686T54 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
|
| - |
1600-880686T55 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
|
| 1 |
1600-8M0056631 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Basic |
1 |
|
|
| 2 |
8M0010459 |
|
|
|
|
FILLER BLOCK |
1 |
|
|
| 3 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 4 |
97-826134Q |
|
|
|
|
ANODE |
2 |
|
|
| 5 |
10-4000333 |
|
|
|
|
SCREW, (M6 x 40) |
1 |
|
|
| 6 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 7 |
10-79953A04 |
|
|
|
|
PLUG ASSEMBLY, (.375-16 x .250) |
1 |
|
|
| 8 |
26-830749 |
|
|
|
|
SEAL |
1 |
|
|
| 9 |
97-76214Q5 |
|
|
|
|
ANODE KIT |
1 |
|
|
| 10 |
10-806327 |
|
|
|
|
SCREW, (.437-14 x 1.750) |
1 |
|
|
| 11 |
8245191 |
|
|
|
|
RETAINER |
1 |
|
|
| 12 |
22-881866 |
|
|
|
|
FITTING |
1 |
|
|
| 13 |
8M0047129 |
|
|
|
|
COVER ASSEMBLY |
1 |
|
|
| 14 |
26-8164641 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 15 |
25-896522 |
|
|
|
|
O-RING, (799 x .103) |
1 |
|
|
| 16 |
53-8M0046563 |
|
|
|
|
RETAINING RING |
1 |
|
|
| 17 |
10-8M4503518 |
|
|
|
|
SCREW , (M6 X 1.0 X 20) |
4 |
|
|
| 18 |
12-77674 |
|
|
|
|
WASHER |
1 |
|
|
| 19 |
27-880729 |
|
|
700-37860 |
|
GASKET |
1 |
|
|
| 20 |
824145 |
|
|
|
|
SHIFT SHAFT |
1 |
|
|
| 21 |
NSS |
|
|
|
|
Pinion Gear 13 Teeth |
1 |
|
Not Sold Separate |
| 22 |
11-35921 |
|
|
|
|
NUT, (.625-18) |
1 |
|
|
| 23 |
12-92721 |
|
|
|
|
WASHER |
1 |
|
|
| 24 |
31-42647A1 |
|
|
|
|
BEARING ASSEMBLY, Roller |
1 |
|
|
| 25 |
45-888572 |
|
|
|
|
DRIVESHAFT |
1 |
|
|
| 25 |
45-888573 |
|
|
|
|
DRIVESHAFT |
1 |
|
|
| 26 |
15-8M0063268 |
|
|
|
|
SHIM SET |
AR |
|
|
| 27 |
817275A09 |
|
|
|
|
HOUSING, Water Pump-Complete |
1 |
|
|
| 28 |
26-861415A1 |
|
|
|
|
SEAL KIT |
1 |
|
|
| 29 |
47-43026T2 |
|
676-9-43507 |
700-89630 |
|
IMPELLER |
1 |
|
|
| 30 |
8172761 |
|
|
|
|
FACEPLATE |
1 |
|
|
| 31 |
53-880719 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 32 |
8M0007131 |
|
|
|
|
CARRIER ASSEMBLY, Oil Seal |
1 |
|
|
| 33 |
25-896523 |
|
|
|
|
O-RING, (2.175 x .103) |
1 |
|
|
| 34 |
NSS |
|
|
|
|
Oil Seal |
1 |
|
Not Sold Separate |
| 35 |
NSS |
|
|
|
|
Oil Seal |
1 |
|
Not Sold Separate |
| 36 |
28-8M0032833 |
|
|
|
|
KEY |
1 |
|
|
| 37 |
27-8172771 |
|
|
|
|
GASKET |
1 |
|
|
| 38 |
27-430331 |
|
|
|
|
GASKET |
1 |
|
|
| 39 |
43585 |
|
|
|
|
COUPLING |
1 |
|
|
| 40 |
31-36387A1 |
|
|
|
|
BEARING ASSEMBLY, Roller/Cup |
1 |
|
|
| 41 |
NSS |
|
|
|
|
Roller Bearing |
1 |
|
Not Sold Separate |
| 42 |
15-8M0063267 |
|
|
|
|
SHIM SET |
1 |
|
|
| 43 |
31-48939A2 |
|
|
|
|
BEARING, Tapered Roller |
1 |
|
|
| 44 |
NSS |
|
|
|
|
CUP |
1 |
|
Not Sold Separate |
| - |
26-830749A01 |
|
|
|
|
SEAL KIT, Gear Housing |
1 |
|
|
| - |
47-8M0100526 |
|
|
|
|
REPAIR KIT, Water Pump Impeller |
1 |
43026Q06 |
|
| - |
817275A08 |
|
|
|
|
REPAIR KIT, Water Pump-Upper |
1 |
|
|
