200XS DFI 2.5L - Serial 0T818181 Thru 1E000796 - Air Handler/Flywheel Cover

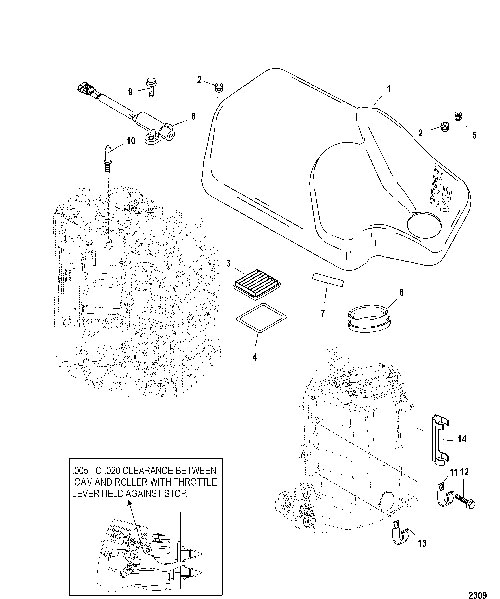

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components(Complete Powerhead and Lower Unit)
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827325A10 | COVER ASSEMBLY | 1 | ||||||
| 2 | 25-821555001 | GROMMET | 2 | 821555 | |||||
| 2 | 25-821555001 | GROMMET | 2 | ||||||
| 3 | 35-853333T | FILTER | 1 | ||||||
| 4 | 853352 | COVER | 1 | ||||||
| 5 | 25-857101 | GROMMET | 1 | ||||||
| 6 | 25-855613 | GROMMET | 1 | ||||||
| 7 | 37-881865 | DECAL, Caution-Start in Gear | 1 | ||||||
| 8 | 8M0082988 | SENSOR | 1 | 8283582 | |||||
| 9 | 10-40011107 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 10 | 8215832 | PIN, Special (1.5 Inches) | 1 | ||||||
| 11 | 54-883080 | J CLIP | 2 | ||||||
| 12 | 10-817504 | SCREW, (.250-20 x 1.500) Stainless Steel | 12 | ||||||
| 13 | 54-633003 | CLAMP | 1 | ||||||
| 14 | 8261151 | CLAMP, Connector | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
