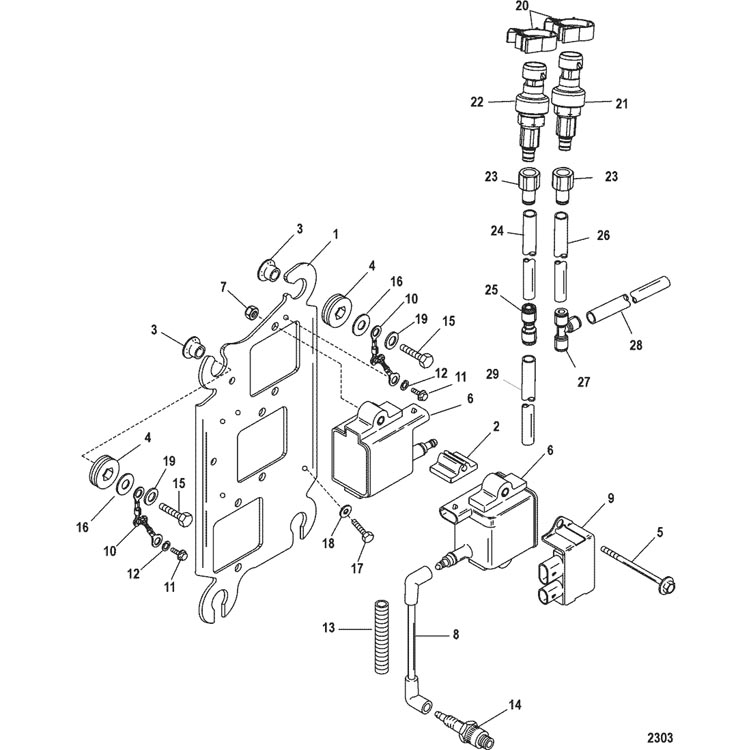

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
8M0011731 |
|
|
|
|
PLATE, Coil |
1 |
8506753 |
|
| 2 |
850676F1 |
|
|
|
|
SPACER |
6 |
|
|
| 3 |
23-8502341 |
|
|
|
|
BUSHING |
4 |
|
|
| 4 |
25-833155 |
|
|
|
|
GROMMET |
4 |
|
|
| 5 |
10-850898 |
|
|
|
|
SCREW, (.250-20 x 3.250) |
6 |
|
|
| 6 |
339-856991A1 |
|
|
|
|
COIL KIT |
6 |
|
|
| 7 |
11-814101 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
6 |
|
|
| 8 |
84-881908T |
|
|
|
|
CABLE SET, Hi Tension |
1 |
821945T74 |
|
| 9 |
859595T |
|
|
|
|
DRIVER, Dual Coil |
3 |
|
|
| 10 |
84-858414A1 |
|
|
|
|
CABLE ASSEMBLY, Braided |
2 |
|
|
| 11 |
10-82129110 |
|
|
|
|
SCREW, (M6 x 10) |
2 |
|
|
| 12 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 13 |
32-828547353 |
|
|
|
|
CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) |
1 |
|
|
| 14 |
33-889597Q |
|
|
|
|
SPARK PLUG |
6 |
8556721 |
|
| 15 |
10-60411 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
4 |
|
|
| 16 |
12-49436 |
|
|
|
|
WASHER |
4 |
|
|
| 17 |
10-82129114 |
|
|
|
|
SCREW, (M6 x 14) |
2 |
|
|
| 18 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 19 |
12-8M0042642 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
2 |
70132 |
|
| 20 |
54-883066 |
|
|
|
|
CLIP, (.865) |
2 |
|
|
| 21 |
881879A7 |
|
|
|
|
SENSOR KIT, (0-50 PSI) |
1 |
|
|
| 22 |
881879T11 |
|
|
|
|
SENSOR, (0 - 100 PSI) |
1 |
881879A6 |
|
| 23 |
22-892403 |
|
|
|
|
FITTING |
1 |
859431 |
|
| 24 |
32-85944975 |
|
|
|
|
TUBING, (72.00 Inches Bulk) (Cut to 14 -1/2 In.) |
1 |
|
|
| 25 |
22-859747 |
|
|
|
|
COUPLER |
1 |
|
|
| 26 |
32-85978571 |
|
|
|
|
TUBING, (52.00 Inches Bulk) (Cut to 15 IN.) |
1 |
|
|
| 27 |
22-875207 |
|
|
|
|
TEE, Fitting |
1 |
|
|
| 28 |
32-85978571 |
|
|
|
|
TUBING, (52.00 Inches Bulk) (Cut to 5 IN.) |
1 |
|
|
| 29 |
32-85944975 |
|
|
|
|
TUBING, (72.00 Inches Bulk) (Cut to 52 IN.) |
1 |
|
|
