200XS DFI 2.5L - Serial 0T818181 Thru 1E000796 - Gear Housing, Propeller Shaft-Counter-Sportmaster

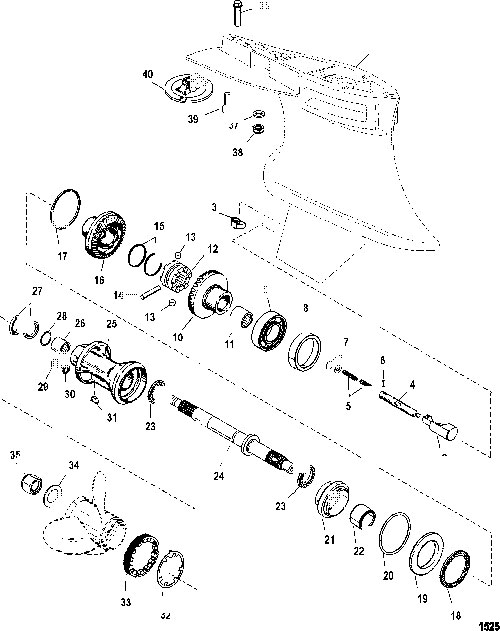

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: THE BASIC GEAR HOUSING LISTED IS GENERIC. IT DOES NOT INCLUDE STUDS.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
0 1687-840561T69         GEAR HOUSING ASSEMBLY, Complete 1
0 1687-840561T70         GEAR HOUSING ASSEMBLY, Complete 1
1 1687-8M0084203         GEAR HOUSING ASSEMBLY, Basic 1 849781A2
2 89594A1         FOLLOWER ASSEMBLY 1
3 789562         SHIFT CAM 1
4 79911A1         ROD 1
5 24-79910         SPRING 2
6 17-8M0084245         PIN 1 78906
7 12-78910         WASHER 2
8 14469T         CUP, Bearing 1
9 30-88957T         BEARING, Ball 1
10 NSS         Reverse Gear 1   Not Sold Separate
11 31-15844         BEARING ASSEMBLY, Roller 1
12 52-42672T         RATCHET 1
13 17-78909         PIN, Detent 2
14 17-42671         PIN, Cross 1
15 24-78962         SPRING 2
16 43-15845A2         GEAR SET 1
17 23-176151         SPACER SHIM, (.125) AR
17 23-176152         SPACER SHIM, (.127) AR
17 23-176153         SPACER SHIM, (.129) AR
17 23-176154         SPACER SHIM, (.131) AR
17 23-176155         SPACER SHIM, (.133) AR
17 23-176156         SPACER SHIM, (.135) AR
17 23-176157         SPACER SHIM, (.137) AR
17 23-176158         SPACER SHIM, (.139) AR
17 23-176159         SPACER SHIM, (.141) AR
17 23-1761510         SPACER SHIM, (.143) AR
17 23-1761511         SPACER SHIM, (.145) AR
17 23-1761512         SPACER SHIM, (.147) AR
17 23-1761513         SPACER SHIM, (.149) AR
18 31-15841         BEARING, Roller 1
19 12-17616         THRUST RING 1
20 25-31534         O-RING 1
21 15838A2         ADAPTOR ASSEMBLY, Bearing 1
22 31-15843T         BEARING, Needle 1
23 31-15834         BEARING, Thrust 2
24 44-840450A03         PROPELLER SHAFT KIT 1
- 840389K06         PROP HUB KIT 1
- 840382A02         SNUBBER STRIP KIT 1
25 847616T1         CARRIER, Bearing 1
26 31-817072         BEARING, Roller 1
27 26-815565         SEAL, Oil 2
28 53-817071         RING, Snap 1
29 22-8M0058389         FITTING KIT, Magnetic, Plug Fill/Drain 1 67892A1
29 22-8M0058389         PLUG KIT, Drain (Magnetic) 1 67892A05
30 12-191833         SEAL 1
31 28-30281         KEY 1
32 14-79447         TAB WASHER 1
33 158401         COVER 1
34 12-85344         WASHER, (.750 Inside Diameter) 1
35 11-52707Q1         PROP NUT KIT, (.750-16) 1
36 10-41350         SCREW, (.437-14 x 2.50) Stainless Steel 1
37 12-822836         WASHER, (.445 x .805 x .108) 2
38 11-859116         NUT, (.437-20) 2
39 10-30206         SCREW, (.375-16 x 1.00) Stainless Steel 1
40 76214T3         ANODE 1
- 26-89238A3         SEAL KIT, Gear Housing 1
- 56-59579         STUD KIT 1   No Longer Available
