| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

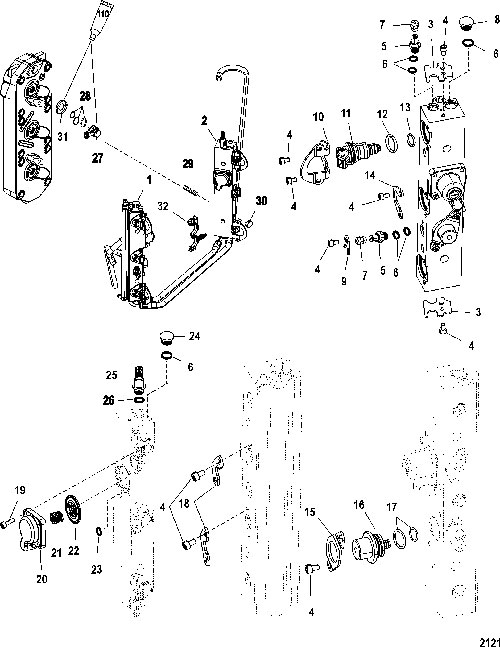

| 1 |
859516T08 |
|
|
|
|
FUEL RAIL |
1 |
|
|
| 2 |
859517T04 |
|
|
|
|
FUEL RAIL |
1 |
|
|
| 3 |
54-804830 |
|
|
|
|
CLAMP |
4 |
|
|
| 4 |
804525001 |
|
|
|
|
SCREW PACKAGE, (M5 x 8) (2 Per) |
16 |
804525 |
|
| 5 |
8M0047053 |
|
|
|
|
VALVE ASSEMBLY, (.375 Inch Diameter) |
2 |
883542 |
|
| 6 |
25-804840 |
|
|
|
|
O-RING KIT |
1 |
|
|
| 7 |
22-805515 |
|
|
|
|
CAP, Shrader Valve - Brass |
2 |
|
|
| 8 |
19-804835 |
|
|
|
|
PLUG |
1 |
|
|
| 9 |
54-880816 |
|
|
|
|
CLAMP |
1 |
|
|
| 10 |
54-8048311 |
|
|
|
|
CLAMP |
4 |
804831 |
|
| 11 |
804841 |
|
|
|
|
INJECTOR |
6 |
|
|
| 12 |
25-804530 |
|
|
|
|
O-RING KIT |
1 |
|
|
| 13 |
25-804529 |
|
|
|
|
O-RING KIT |
1 |
|
|
| 14 |
804522 |
|
|
|
|
CLAMP |
2 |
|
|
| 15 |
54-880808 |
|
|
|
|
CLAMP |
1 |
|
|
| 16 |
880807T |
|
|
|
|
REGULATOR, Air |
1 |
|
|
| 17 |
25-880809 |
|
|
|
|
O-RING KIT |
1 |
|
|
| 18 |
54-804832 |
|
|
|
|
CLAMP |
2 |
|
|
| 19 |
804526 |
|
|
|
|
SCREW PACKAGE, (M5 x 16) (2 Per) |
4 |
|
|
| 20 |
804535001 |
|
|
|
|
COVER |
1 |
804535 |
|
| 21 |
24-804534 |
|
|
|
|
SPRING |
1 |
|
|
| 22 |
804533 |
|
|
|
|
DIAPHRAGM ASSEMBLY |
1 |
|
|
| 23 |
25-804536 |
|
|
|
|
O-RING |
2 |
|
|
| 24 |
19-804834 |
|
|
|
|
PLUG |
1 |
|
|
| 25 |
22-804836 |
|
|
|
|
FITTING |
1 |
|
|
| 26 |
804532 |
|
|
|
|
O-RING KIT |
1 |
|
|
| 27 |
8M6001744 |
|
|
|
|
INJECTOR ASSEMBLY, Air |
6 |
884595A02 |
|
| 28 |
26-804875 |
|
|
|
|
SEAL KIT, Director Injector |
6 |
|
|
| 29 |
16-8M0034470 |
|
|
|
|
STUD, (M10 x 91) |
4 |
858778 |
|
| 30 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated |
4 |
|
|
| 31 |
12-828694A1 |
|
|
|
|
WASHER ASSEMBLY, Cupped |
6 |
|
|
| 32 |
54-859376 |
|
|
|
|
CLIP |
4 |
|
|
| - |
61-883201A01 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
|
No Longer Available |
