6.2L MPI 350 EC - 2A530776 and Up - Exhaust System Components

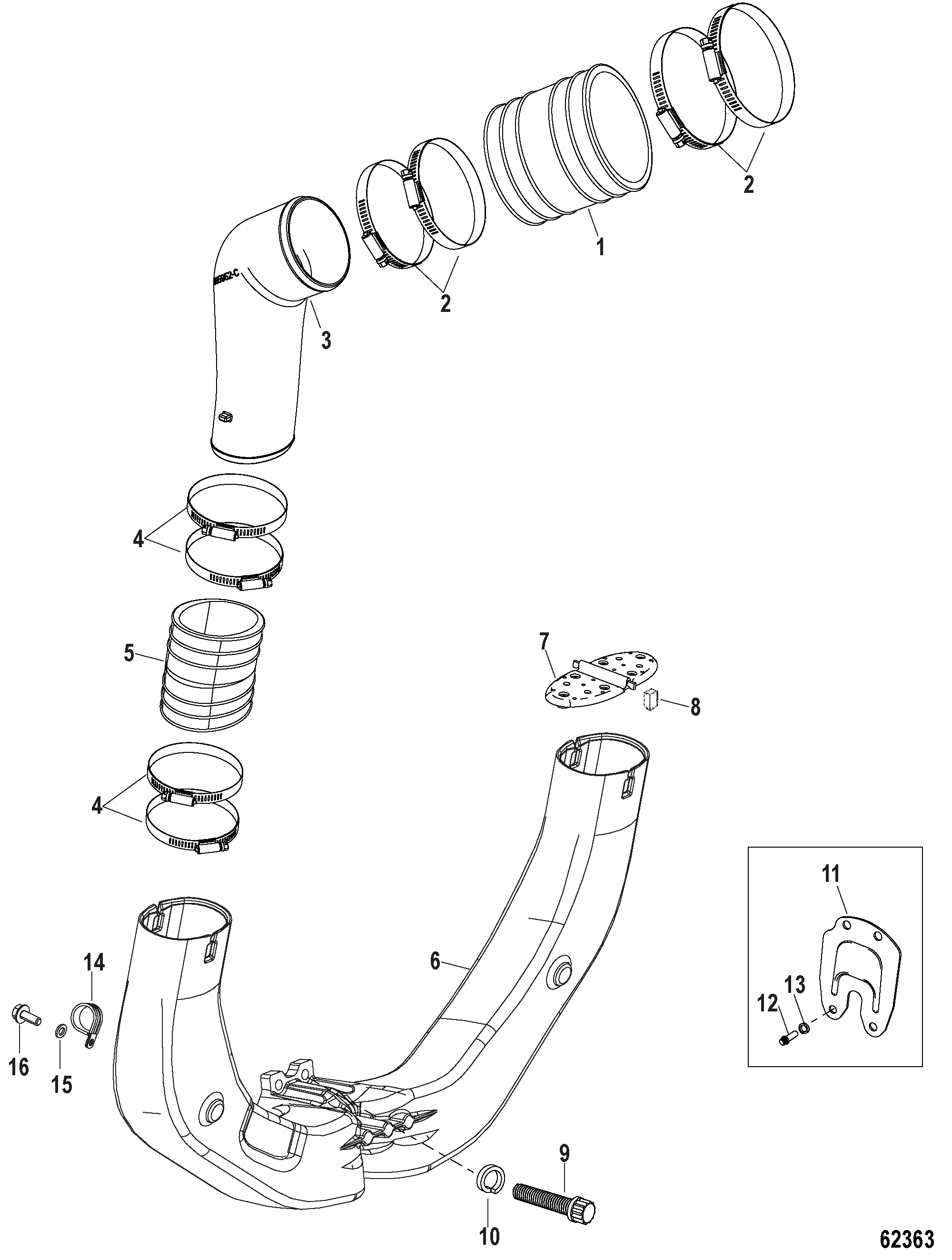

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Electrical Components Bracket and Propulsion Control Module
- Electrical Components Starter, Alternator, and Coil Bracket
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel and Coupler
- Fresh Water Cooling Cooling Hoses
- Fresh Water Cooling Crossover Assembly
- Fresh Water Cooling Heat Exchanger
- Fresh Water Cooling Sea Pump Hoses
- Front Cover and Circulating Pump
- Fuel Supply Module 2A575398 and Below
- Fuel Supply Module 2A575399 and Up
- Fuel Supply Module and Rail
- Harnesses
- Intake Manifold Assembly
- Jackshaft Components
- Maintenance Kits
- Mercathode Kit
- Oil Fill Tube
- Oil Pan and Pump
- Overhaul Gasket Set 6.2L
- Pistons and Connecting Rods
- Poppet Valve Assemblies
- Raw Water Cooling (Bravo) Sea Pump Hoses
- Raw Water Cooling Cooling Hoses
- Raw Water Cooling Crossover Assembly
- Remote Oil
- Sea Water Pump
- Service and Support Material
- Shift Bracket Bravo
- Shift Bracket Digital Throttle and Shift
- Steering System and Drive Lube Bottle
- Top and Front Covers
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing Air Actuated Drain
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
| 1 | 0032 | OEM: 530-44348001, Sierra: 676-18-2748, GLM: 700-89120 | TUBE Exhaust | 2 | ||
| 2 | 0054 | OEM: 525-54-815504272 | CLAMP Worm Gear | 8 | ||
| 3 | 0000 | OEM: 525-879288A34 | ELBOW KIT Intermediate | Non Riser | 1 | |
| 3 | 0000 | OEM: 525-879288A35 | ELBOW KIT Intermediate | 2 Inch Riser | 1 | |
| 3 | 0000 | OEM: 525-879288A36 | ELBOW KIT Intermediate | 4 Inch Riser | 1 | |
| 3 | 0000 | OEM: 525-879288A37 | ELBOW KIT Intermediate | 6 Inch Riser | 1 | |
| 3 | 0000 | OEM: 525-879288A38 | ELBOW KIT Intermediate | 8 Inch Riser | 1 | |
| 4 | 0054 | OEM: 525-54-815504272 | CLAMP Worm Gear | 8 | ||
| 5 | 0032 | OEM: 530-14358001, Sierra: 676-18-2746, GLM: 700-89130 | TUBE Exhaust | 2 | ||
| 6 | 0000 | OEM: 525-8M0115149 | PIPE Exhaust | 1 | ||
| 7 | 0000 | OEM: 530-807166A1 | SHUTTER ASSEMBLY Water | 2 | ||
| 8 | 0025 | OEM: 525-25-807167 | GROMMET | 4 | ||
| 9 | 0010 | OEM: 525-10-58640 | SCREW (.375-16 x 1.25) | 4 | ||
| 10 | 0013 | OEM: 525-13-41471 | LOCKWASHER (.375) | 4 | ||
| 11 | 0000 | OEM: 530-861776A2 | PLATE KIT | Through Transom Exhaust | 1 | |
| 12 | 0010 | 98794 | SCREW (.375-16 x 1.00) | Through Transom Exhaust | 4 | |
| 13 | 0013 | OEM: 525-13-41471 | LOCKWASHER (.375) | Through Transom Exhaust | 4 | |
| 14 | 0054 | 8M0114196 | CLIP | 1 | ||
| 15 | 0012 | OEM: 525-12-35044 | WASHER (.281 x .625 x .065) Stainless Steel | 1 | ||
| 16 | 0010 | OEM: 525-10-4010816 | SCREW (M10 x 16) Hex Flange - Stainless Steel | 1 |
